Outdoor Stadium High Mast Sports Football Field Pitch Golf Baseball Tunnel Tennis Court Light 100W 150W 200W 300W 400W 500W 600W 800W 1000W LED Flood Lighting

📊Overview

Basic Info.

Model NO.

RB-FLL-400WHX

Power

100W/150W/200W/300W/400W/500W/600W

Projection Distance

25-35m

Application

Park, Square, Factory, Garden, Sports Field/Stadium

IP Rating

IP66

Certification

CE, C-tick, EMC, ETL, FCC, GS, LVD, RoHS, SAA, VDE

Operating Voltage

100-240V

Input Voltage

90-305V/277-480V/AC

LED Chips Brand

Osram

Type

LED Floodlight/LED Flood Light Outdoor

Lighting Bulbs

LED

Chip

5050/3030 SMD

Driver

Meanwell/Inventronics

Heatsink

Finned Radiator

Warranty

5 Years

Angle

30/45/60/90/80*150deg

CCT

3000K/4000K/5000K/5700K/6500K

Lumen

150lm/W

Body Material

Aluminum+PC

OEM

Yes

Dimmable

Yes

Transport Package

1PCS/Box

Specification

CE, EMC, LVD, ROHS, SAA

Origin

China

HS Code

9405409000

Production Capacity

40,000PCS/Month

Packaging & Delivery

Package Size

55.00cm * 38.00cm * 25.00cm

Package Gross Weight

12.800kg

📐Product Parameters

Specifications of Outdoor Sports LED Flood Lighting

Model	RB-FLL-100WHX	RB-FLL-150WHX	RB-FLL-200WHX	RB-FLL-240WHX
Power	100W	150W	200W	240W
Input Volt	100-240V/100-277V/AC 50/60Hz
Power Factor	> 0.96
Power Efficiency	> 92%
Driver	Sosen/Meanwell/customer specified
Ra	Ra > 80
Lumen(Lm/W)	150LM/W
Control method	Ordinary, 0-10V, PMW, DALI, Photocell sensor
Light body material	Die-casting aluminum lamp body + Tempered glass + PC Lens + 304 stainless steel screws
Beam angle	80*150Deg / 30 / 60 / 90Deg
CCT	3000K / 4000K / 5000K / 5700K / 6500K
Protection level	IP66 / IK09
Products Size	29827547mm	29827547mm	40030547mm	40030547mm
Lightning protection	10KV or 20KV, according to actual needs
Work temp / humidity	-35ºC ~ 65ºC / 10% ~ 90%
Warranty / Life	5 years / 50,000hrs
Installation method	Adjustable angle bracket installation

Model	RB-FLL-300WHX	RB-FLL-400WHX	RB-FLL-600WHX	RB-FLL-600WHX-F
Power	300W	400W	600W	600W
Input Volt	100-240V/100-277V/AC 50/60Hz
Power Factor	> 0.96
Power Efficiency	> 92%
Driver	Sosen/Meanwell/customer specified
Ra	Ra > 80
Lumen(Lm/W)	150LM/W
Control method	Ordinary, 0-10V, PMW, DALI, Photocell sensor
Light body material	Die-casting aluminum lamp body + Tempered glass + PC Lens + 304 stainless steel screws
Beam angle	80*150Deg / 30 / 60 / 90Deg
CCT	3000K / 4000K / 5000K / 5700K / 6500K
Protection level	IP66 / IK08
Products Size	40030547mm	40046568mm	49044884mm	59443885mm
Lightning protection	10KV or 20KV, according to actual needs
Work temp / humidity	-35ºC ~ 65ºC / 10% ~ 90%
Warranty / Life	5 years / 50,000hrs
Installation method	Adjustable angle bracket installation

🏆 Primary Competitive Advantages of Our New Design Outdoor Arena LED Flood Lights:

Taiwan MeanWell or INVENTRONICS drivers, 3030/5050SMD single power LED chips.
Finned radiators, very good heat dissipation performance.
Flexible installation positions can be adjusted easily within 180°.
Waterproof IP66 design, elimination of mist, avoids condensation, widely used for indoor and outdoor environments.
Reflector options with 8°/20°/40°/60°/90°/120°/140*100° beam angles to meet professional light distribution requirements.
Wide power selection from 100W to 1500W, supported by a 5-year warranty.

📸Detailed Photos

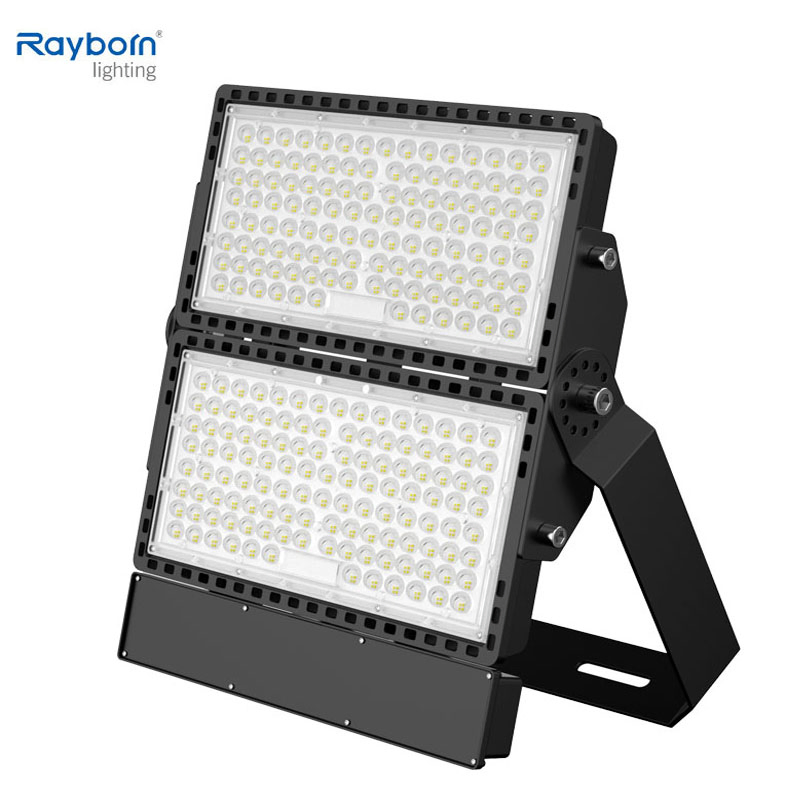

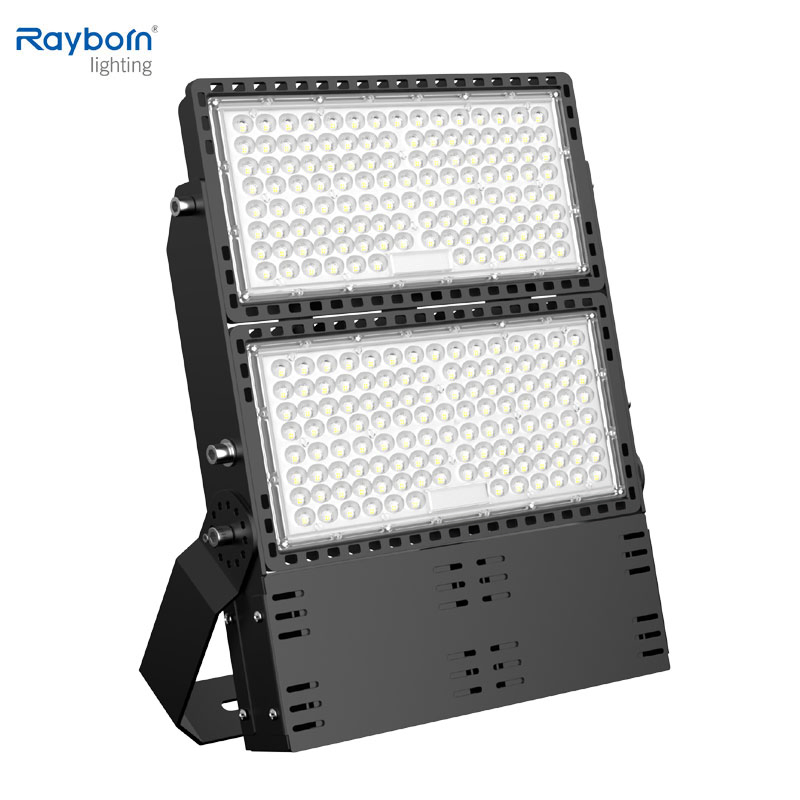

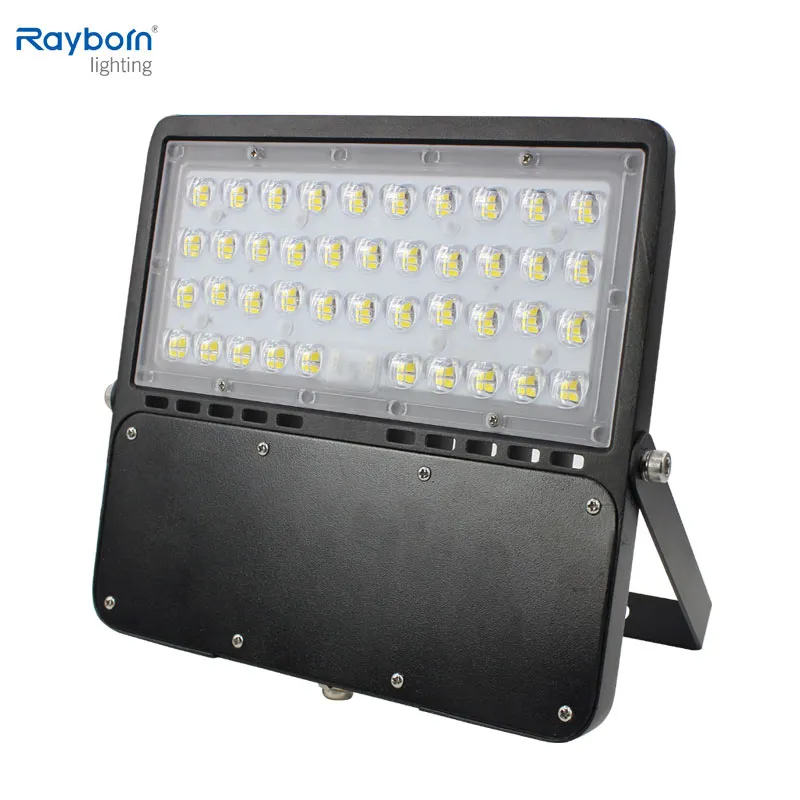

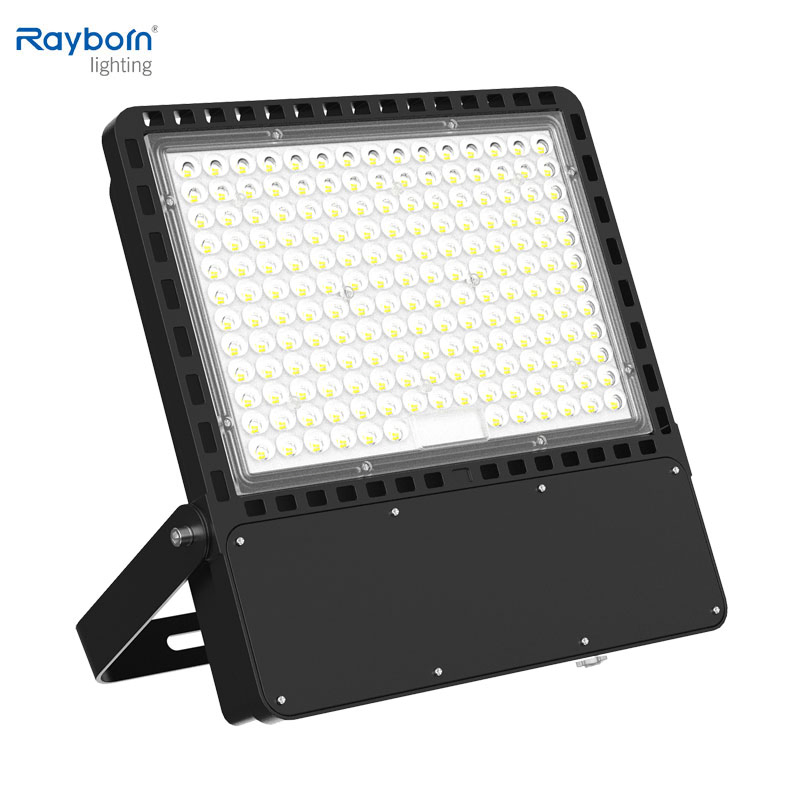

Outdoor Stadium Flood Light - Front View

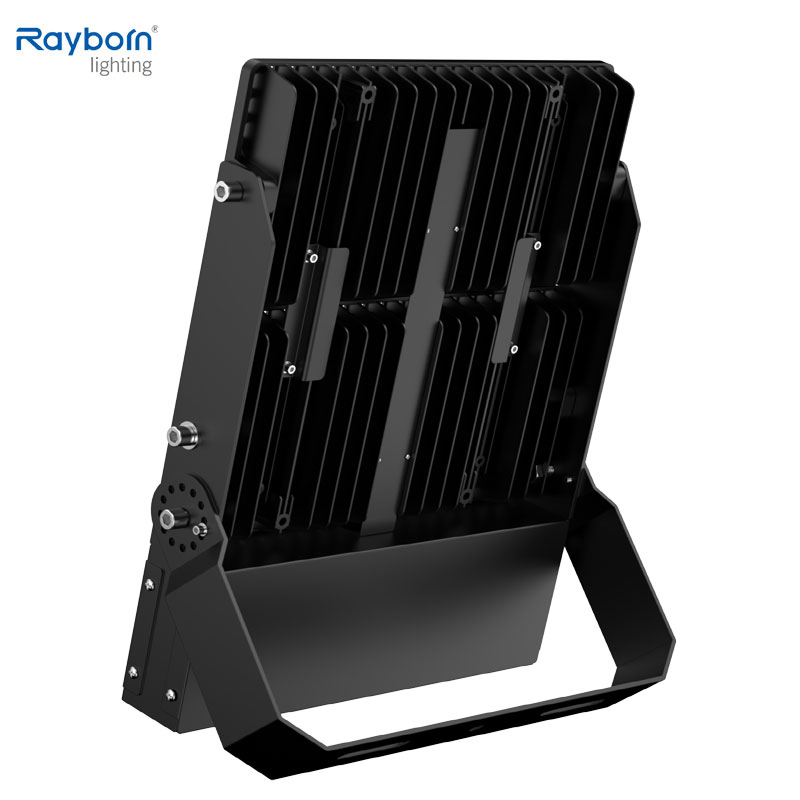

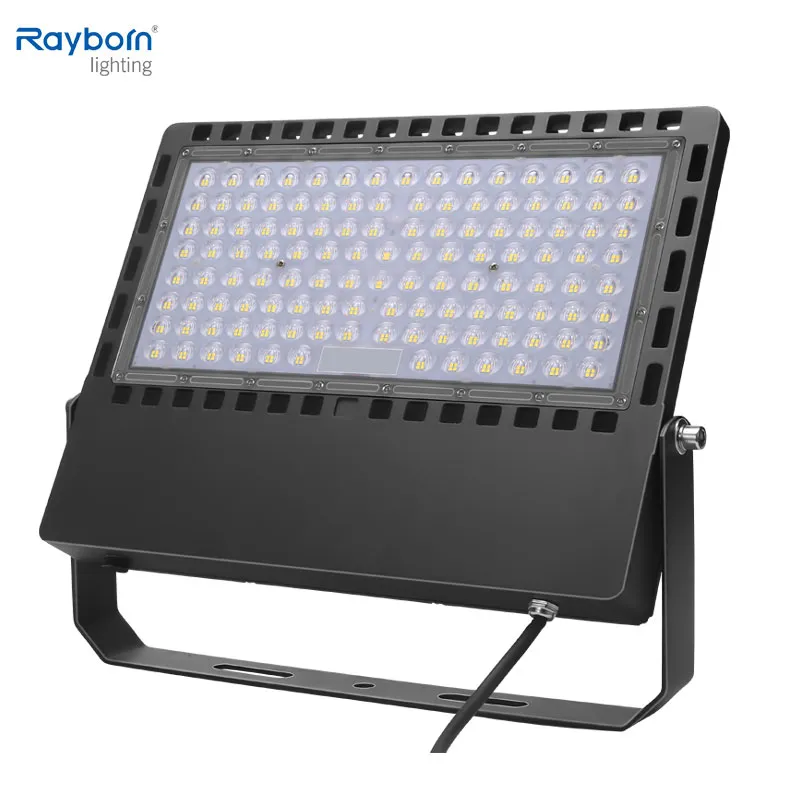

Outdoor Stadium Flood Light - Back Heat Sink

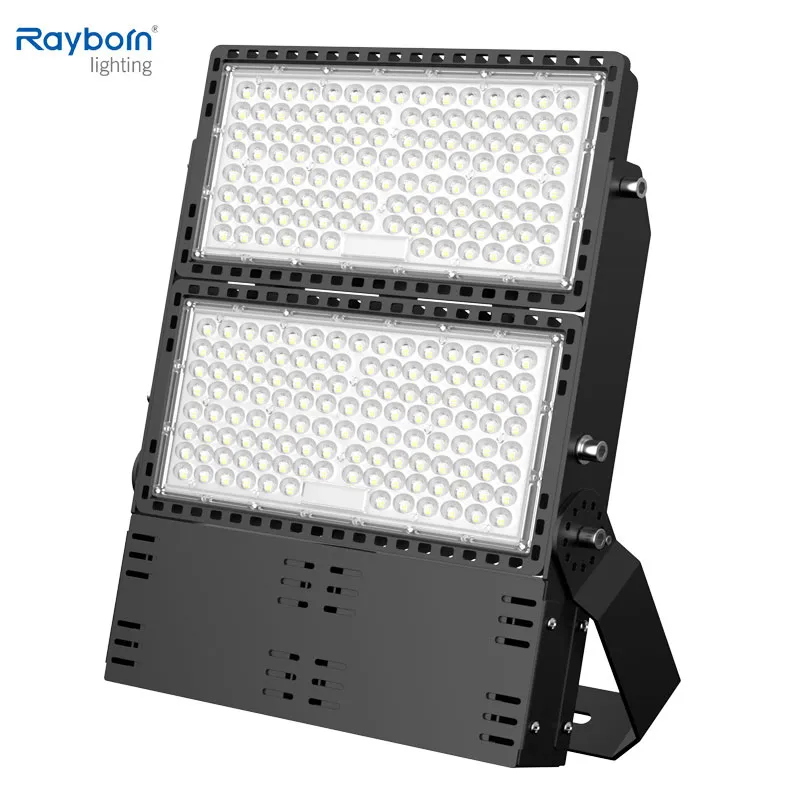

Outdoor Stadium Flood Light - Detail Closeup

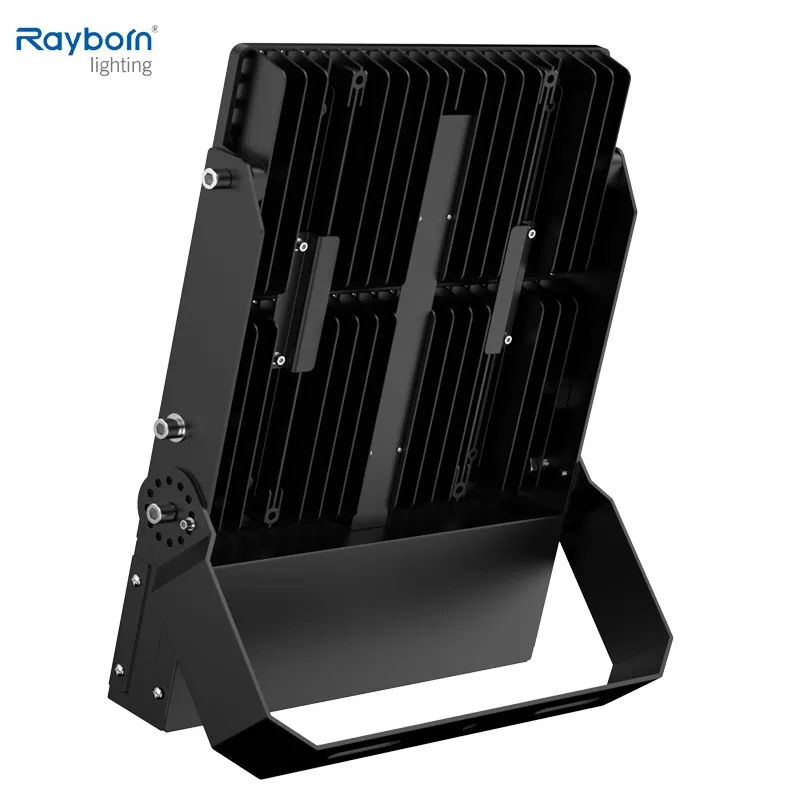

Outdoor Stadium Flood Light - Bracket details

💡Product Description

Features of Outdoor Flood light LED :

Available in 100W, 200W, 300W, 400W, 500W, 600W, 1000W powers with two stable installation methods.
Total luminous flux reaches up to 170lm/W.
High color rendering index with options of CRI > 90, TLCI > 90, R9 > 20, or common CRI > 80.
High-purity aluminum integrated cold segment fin heat dissipation provides rapid heat conduction.
Professional light distribution with lens available in narrow, medium, and wide angles.
Professional anti-overflow hood design controls light spillage and reduces light pollution.
Robust protection grade IP66, IK10, with wind resistance up to grade 17 for harsh environments.
Maximum surge voltage protection (T3) Vmax reaches up to 20KV.

🏭Product Production

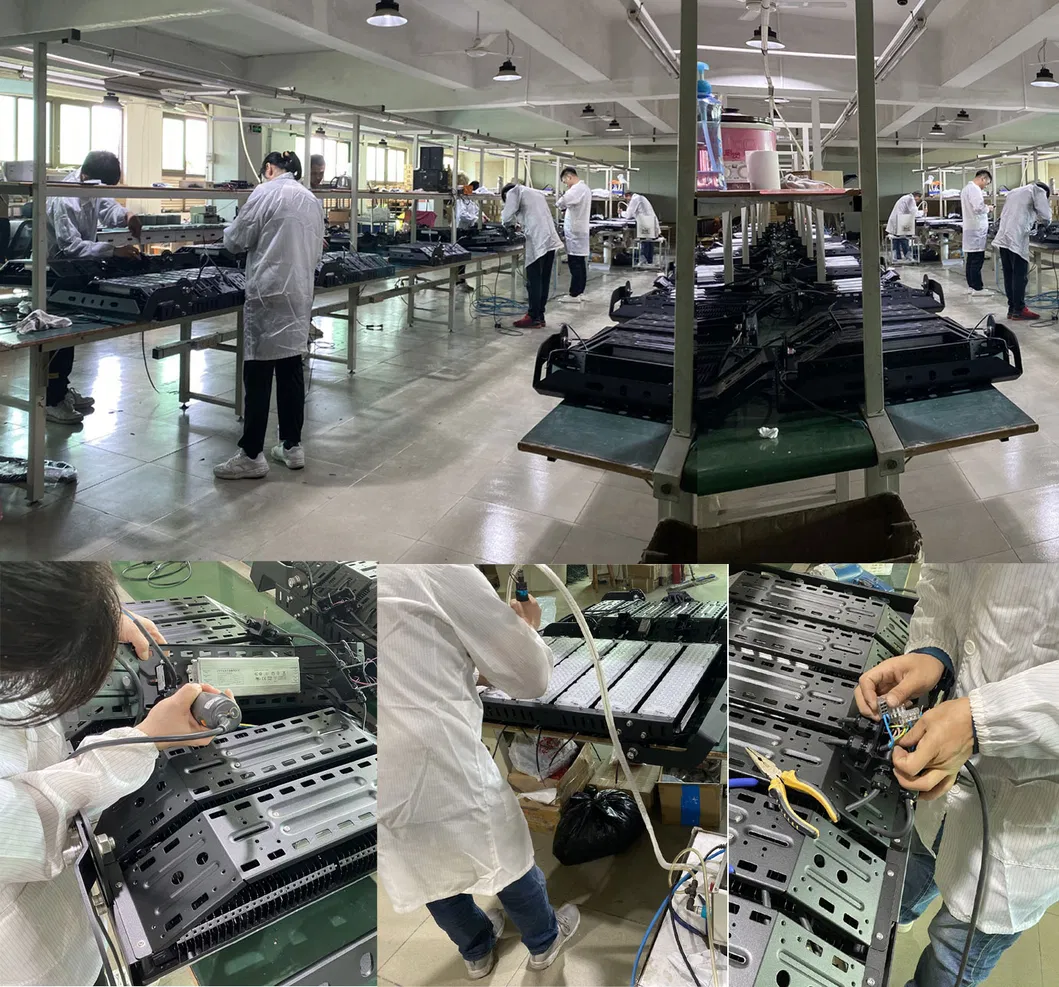

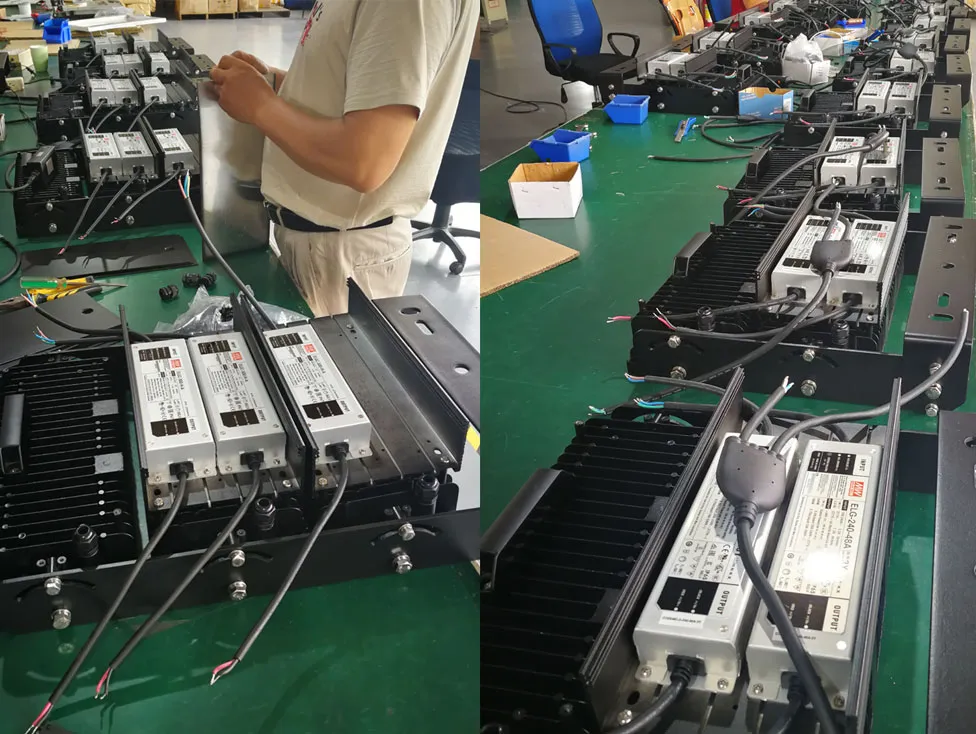

Floodlight LED Spot Lights Production Workshop

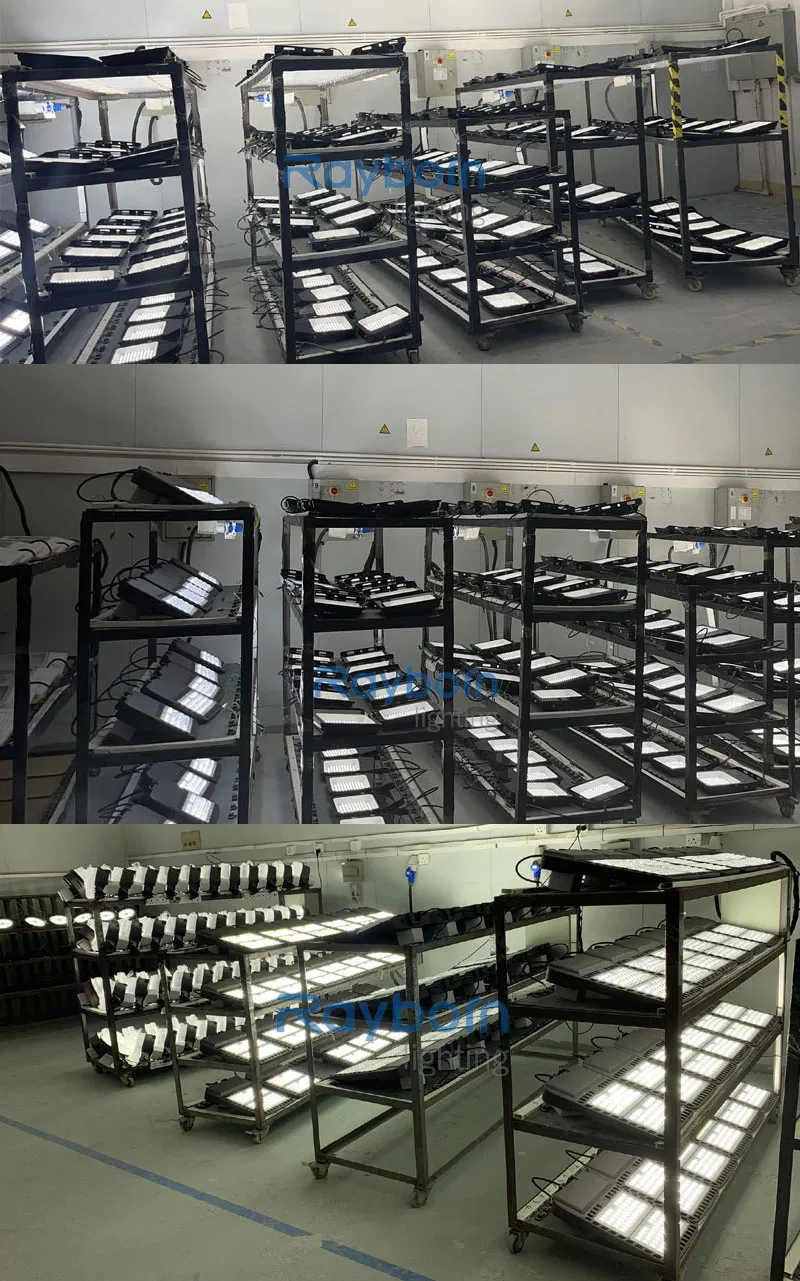

Strict Tests of IP66 Flood LED Lights

Before shipping, all LED flood lights will undergo over 12 hours of aging tests. The quality inspection department tests 100% of products including light-up test, power wattage test, high-voltage test, waterproof test, and ground connection test. The defective rate is strictly controlled to less than 0.1% to guarantee supreme reliability.

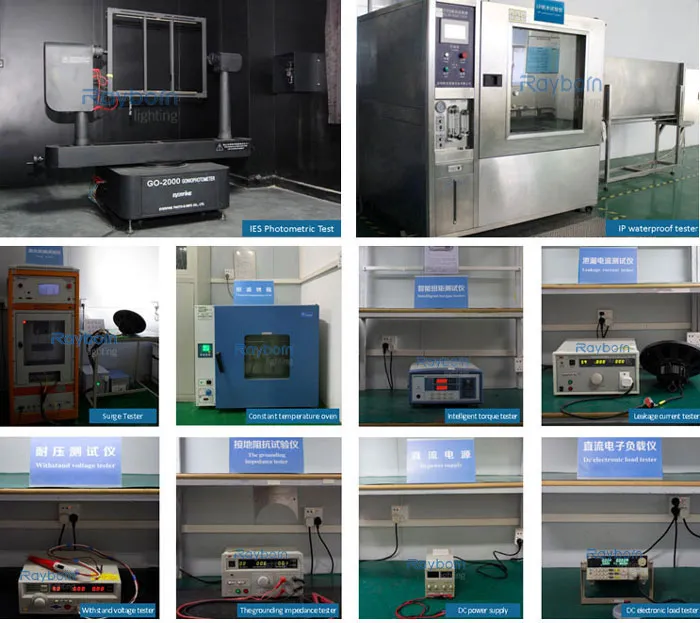

Testing Equipment

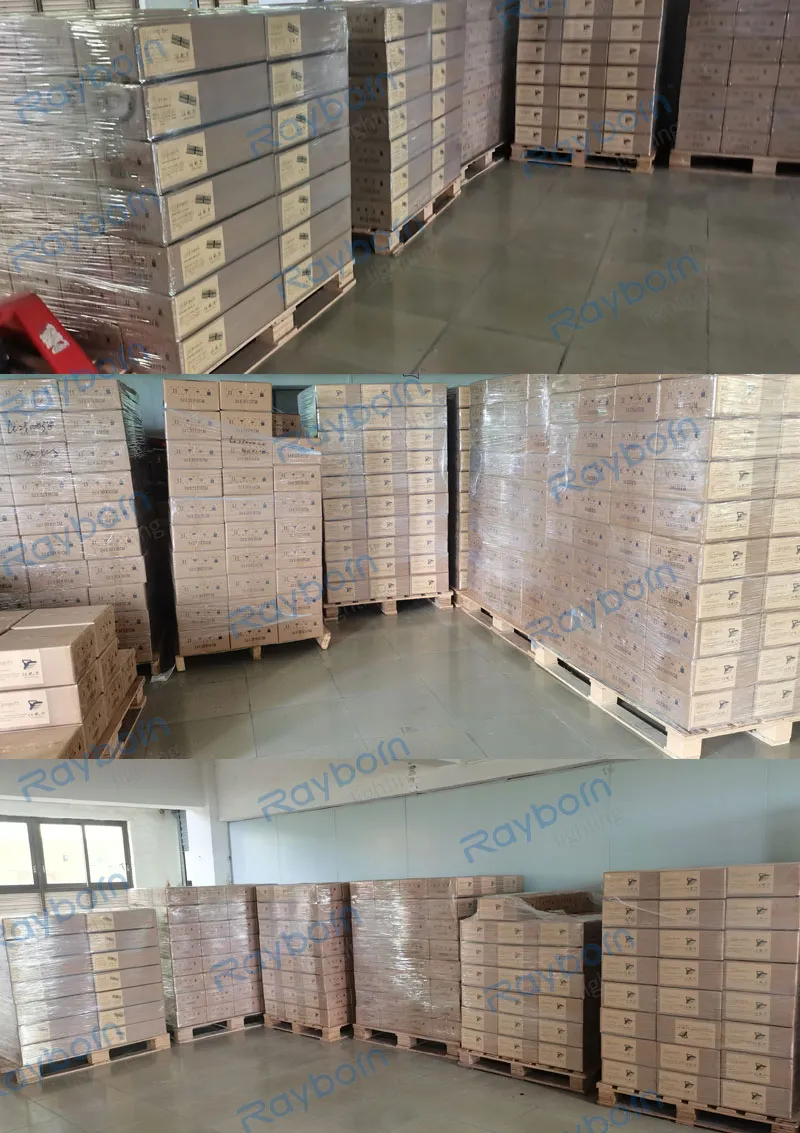

📦Packaging & Shipping

Packaging Specifications

Our individual package maximizes protection from shipping damage in transit:

Labels on back of each flood LED light (custom labels available on request).
One piece LED flood light per carton.
Regular neutral packing with customization options for colors and custom logos.

Shipping Methods Available

We provide versatile logistics methods to meet different requirements:

By Sea: Recommended for large wholesale quantities.
By Air: Ideal for mid-sized time-sensitive shipments.
By Express: Best for samples and immediate testing orders.
By Railway: Stable continental land transit option.

💻Design Simulation

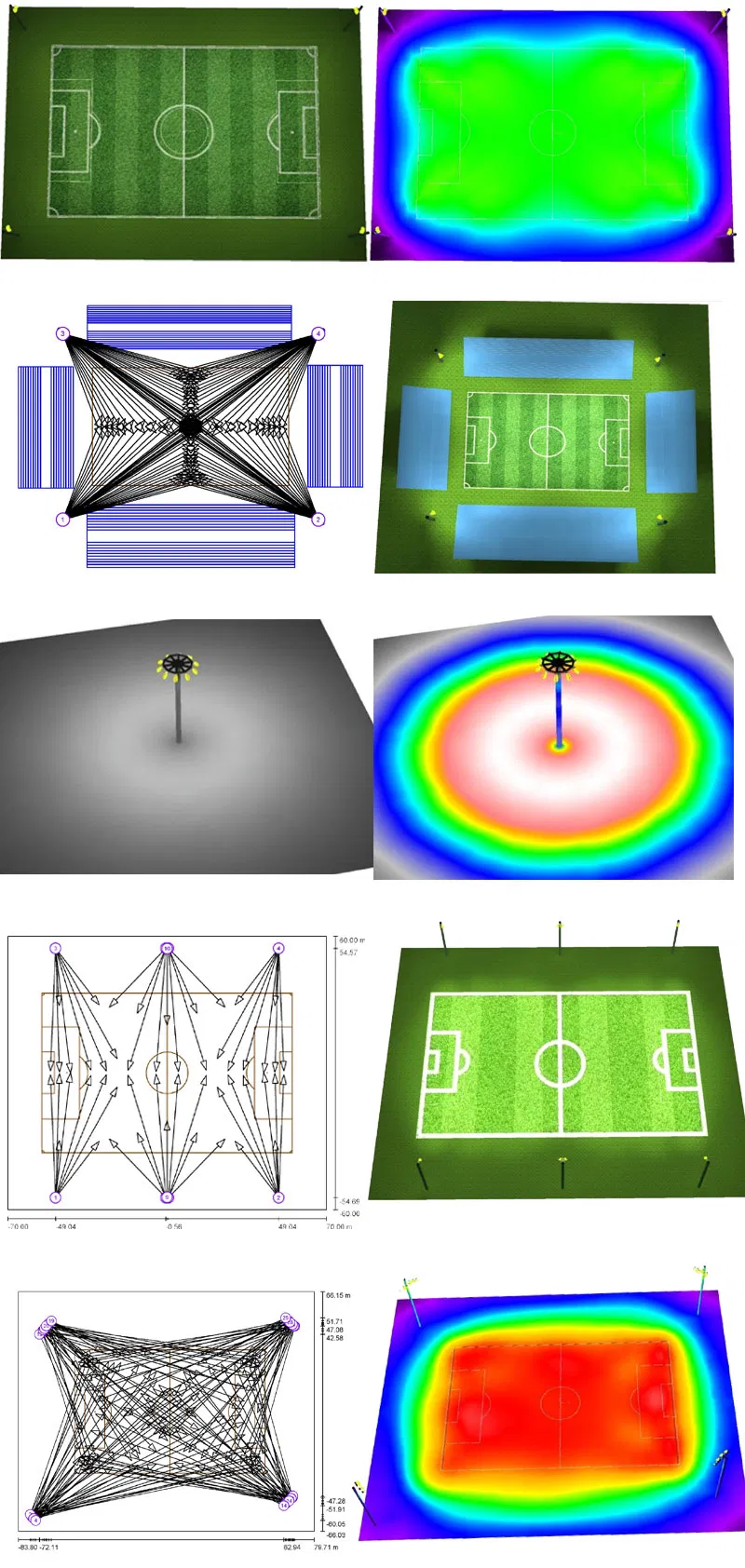

LED Flood Light Dialux Simulation

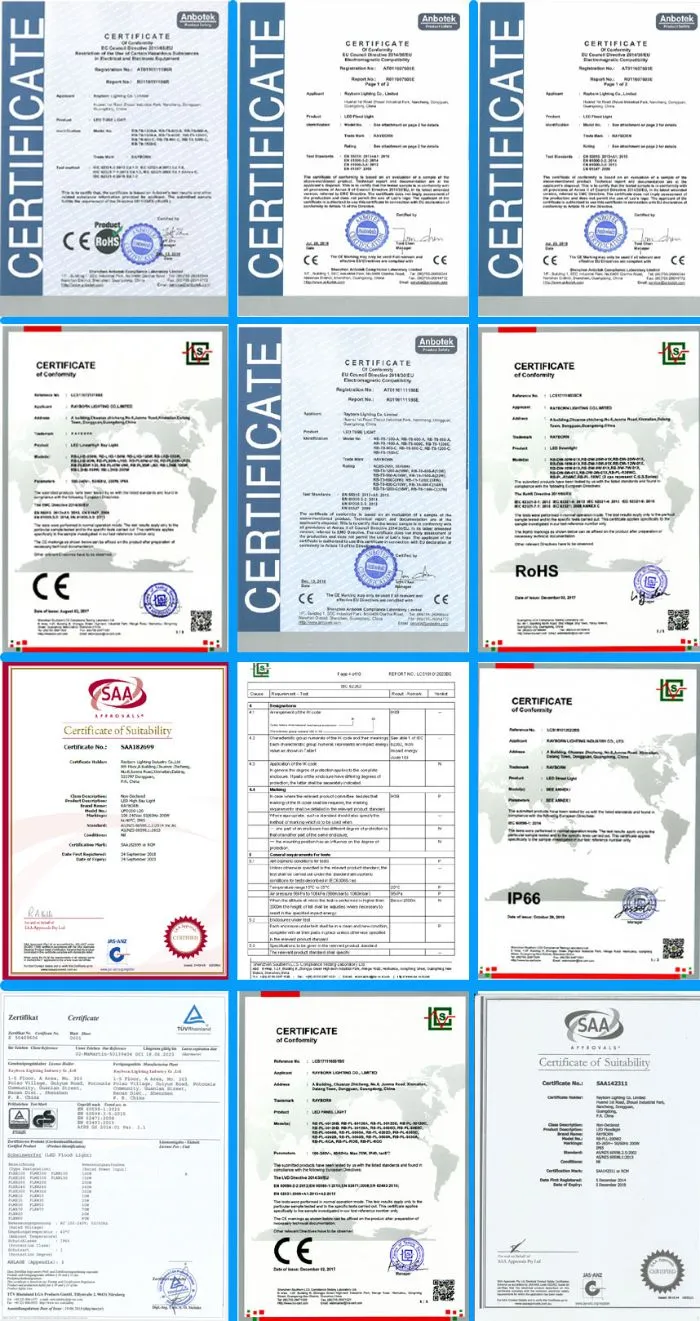

Certifications

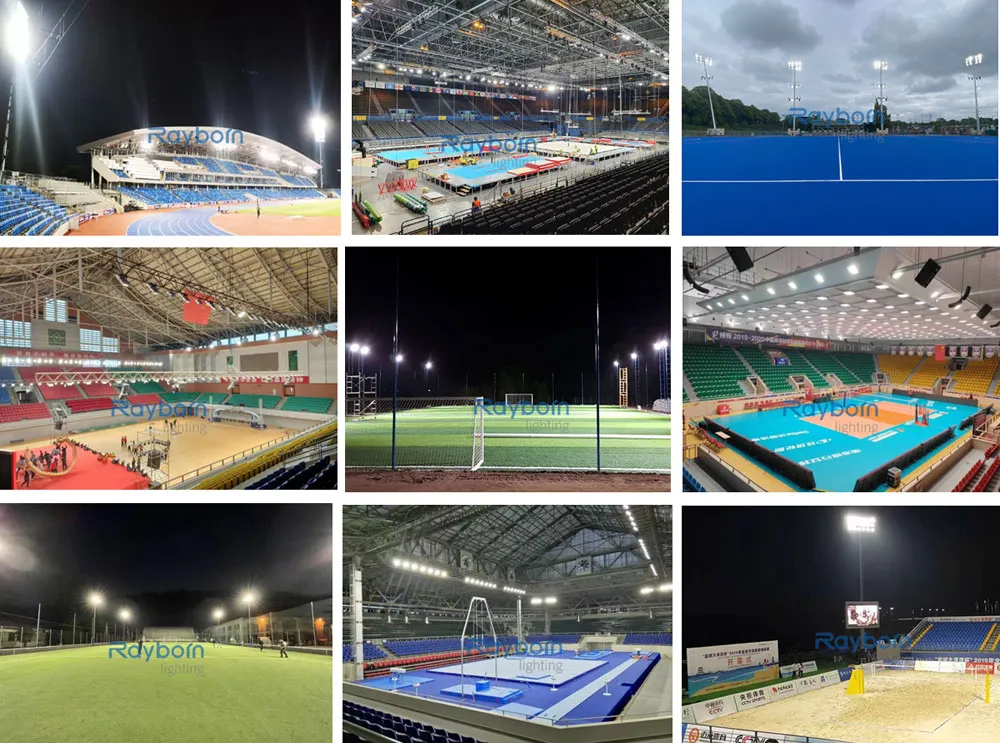

🏟️Applications

Wide Suitability of IP66 Outside Flood Light LED:

Playgrounds, outdoor arenas, and stadium sports fields.
Large parking lots and airport apron lighting.
Highway and railway tunnel lighting installations.
Bridge structures, squares, gardens, and building facade lighting.
Commonly applied in factories, gymnasiums, billboard displays, and decorative light projects.

❓Frequently Asked Questions

What is the warranty of your LED flood lights?

We offer a 5-year guarantee for our LED flood lights, and we can customize solutions based on your requirements.

What color temperatures can we choose?

We offer LED flood lights in warm white (3000K-3500K), natural white (4000K-4500K), pure white (5000K-5700K), and cool white (6000K-6500K). Other custom ranges are available upon request.

Can your LED flood lamps be used in our country?

Yes, our LED flood lamps feature a wide input voltage design of AC100-277V, and it can be customized to match specific local electricity standards.

Do you have any MOQ limit?

We do not have a strict Minimum Order Quantity (MOQ). You can purchase even a single piece LED flood light for testing.

What is the lead time for order fulfillment?

For sample orders, it takes approximately 3-7 days. For mass production, the process takes 7-15 days depending on the final order quantity.

How are the goods shipped?

Goods can be shipped worldwide via SEA, TRAIN, or AIR transport systems according to customer preferences.
