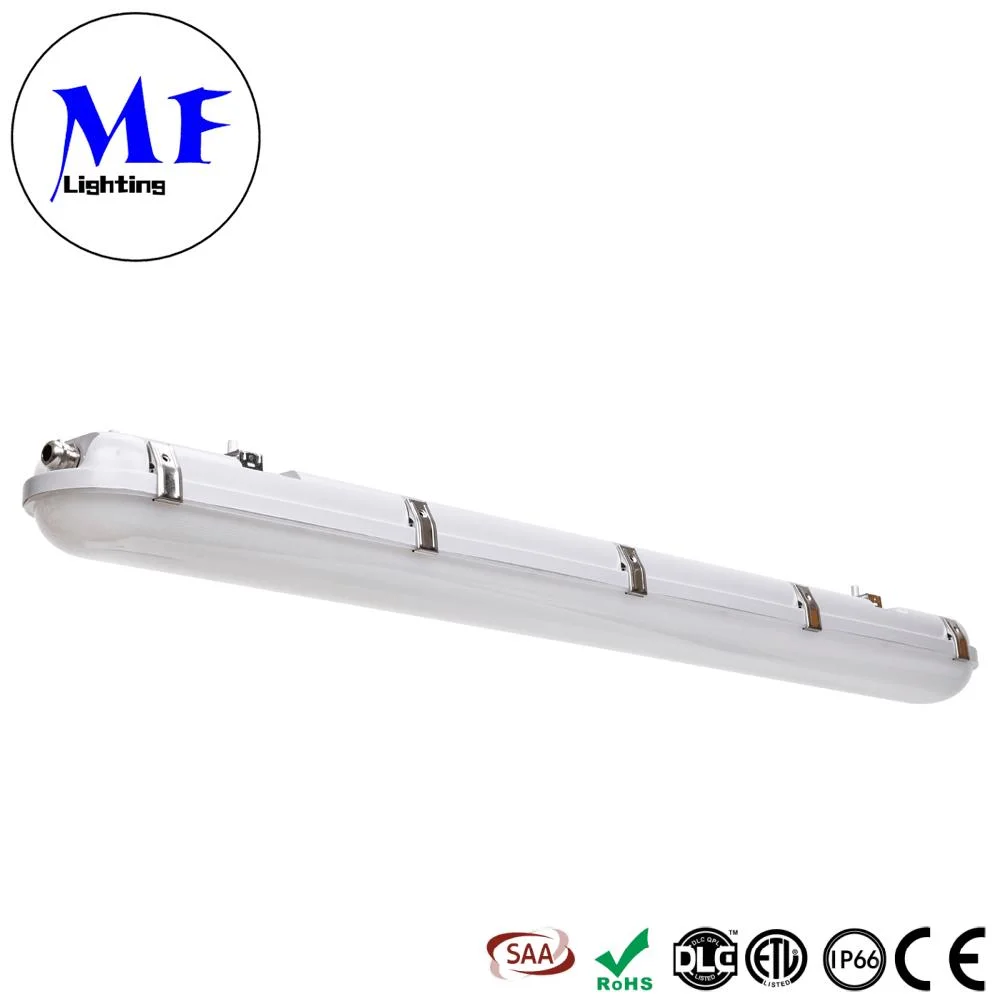

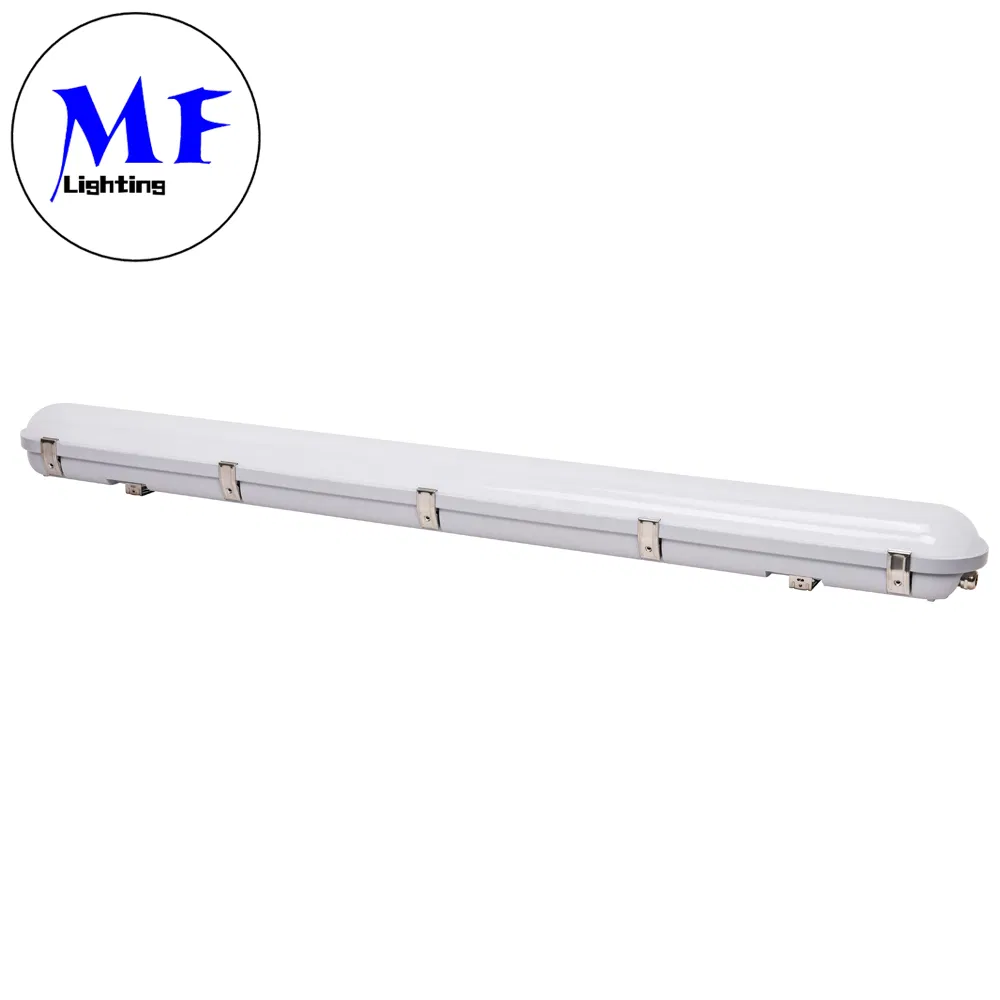

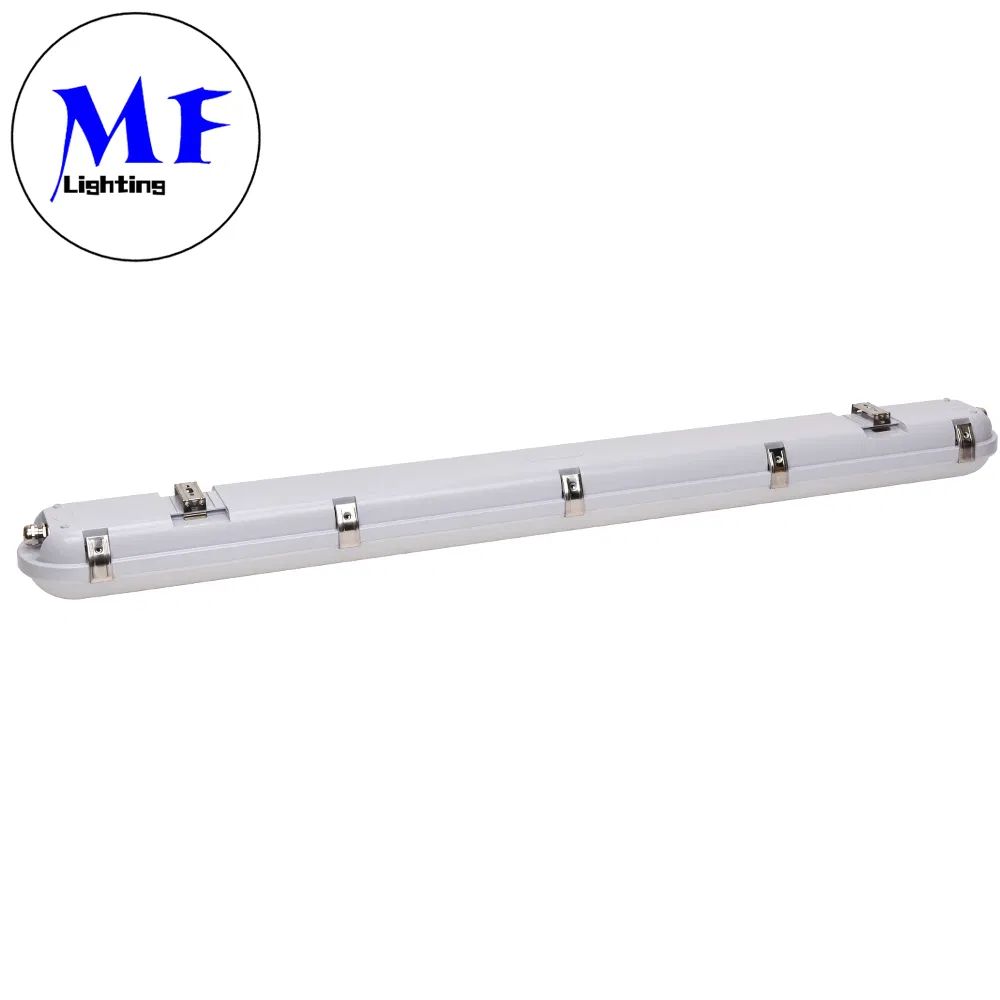

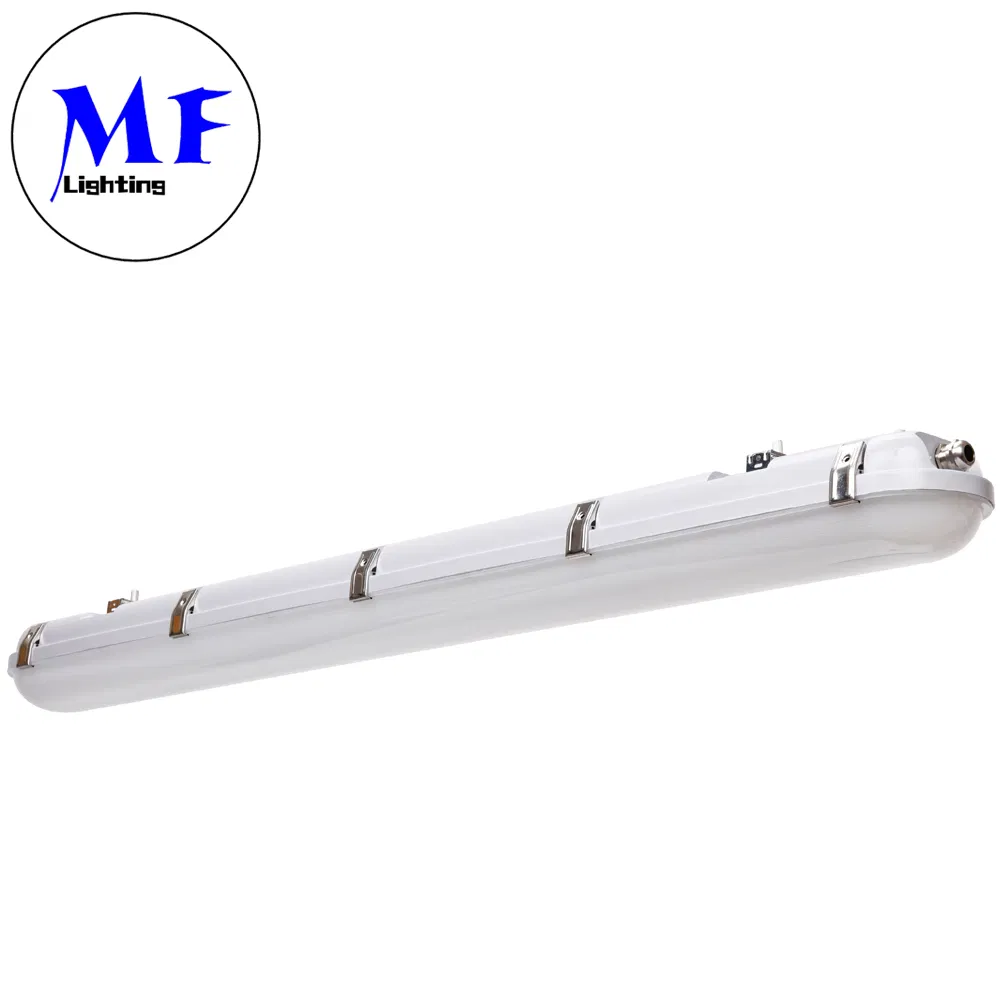

Factory Price 2FT/4FT/5FT IP66 Waterproof Lighting Fixture Subway/Mine/Tunnel/Parking Lot Lighting 3 Hours Emergency LED Tri Proof Lighting
Specifications
| Model No |
MF-T218/MF-T236/MF-T258/MF-T270 |
| Input voltage |
AC100-277Vac 50hz/60hz |
| Power(watt) |
20W/40W/60W/80W |
| Product size(mm) |
2ft(600mm)/4ft(1200mm)/5ft(1500mm)/6ft(1800mm) |
| Color temperature |
Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K) |
| LED Chip |
SAMSUNG |
| Luminous Flux (lm) |
140LM/W±10% |
| CRI(Ra) |
>85 |
| Lifespan |
≥50000hrs |
| Beam Angle |
120° |
| Material |
Aluminum + PC |
| Operating Temperature |
-20°C ~40°C |
| IP |
IP66 |
| IK |
IK08 |
| Certificate |
CE/RoHS |
| Warranty Period |
5 years |
Quick Detail
- IP66 Tri-proof LED Light Fixture
- Input: AC 100-277V, 50/60Hz
- Luminous Flux: 140lm/w±10%
- CRI: >85
- PF: >0.95
- Lifespan: >=50000Hrs
- IP rate: IP66
- IK rate: IK08
- Sensor: Motion Sensor
- Emergency Time: 90min
Competitive Advantage
1. Energy Efficiency: LED Tri-proof lights consume less energy and produce more light compared to traditional lighting fixtures, reducing energy costs and increasing energy savings.
2. Long Lifespan: LED Tri-proof lights have a longer lifespan of up to 50,000 hours, reducing maintenance costs.
3. Waterproof: LED Tri-proof lights have an IP66 waterproof rating, making them suitable for use in wet and harsh environments.
4. Impact Resistance: LED Tri-proof lights have an IK08 impact resistance rating, making them more durable and resistant to damage from accidental contact.
5. Optimal Color Accuracy and Clarity: LED Tri-proof lights have a high Color Rendering Index (CRI) of over 85, providing optimal color accuracy and clarity.
6. Easy to Install: LED Tri-proof lights have an easy-to-install design, reducing installation costs and time.
7. Emergency Lighting: LED Tri-proof lights can provide emergency lighting for up to 90 minutes in case of power outages, ensuring safety.
Product Description
The latest Tri-proof LED Light fixture features an IP66 waterproof rate. Built to withstand harsh environments, this light fixture has an input of AC 100-277V, 50/60Hz, and a lifespan of over 50,000 hours.
The IP66 rate ensures full protection against dust and water ingress, making it perfect for outdoor areas and industrial settings. This light fixture delivers an impressive 140 lumens per watt with a CRI of over 85, providing optimal color accuracy and clarity.
It has a high PF of over 0.95, ensuring maximum energy efficiency, and features a motion sensor for easy activation and deactivation. In case of power outages, it can provide emergency lighting for up to 90 minutes, ensuring safety.
With an IK08 rating, this light fixture is built to withstand impacts, making it ideal for areas where accidental contact may occur. It is easy to install and has low maintenance requirements, making it a cost-effective and reliable lighting solution for any project.

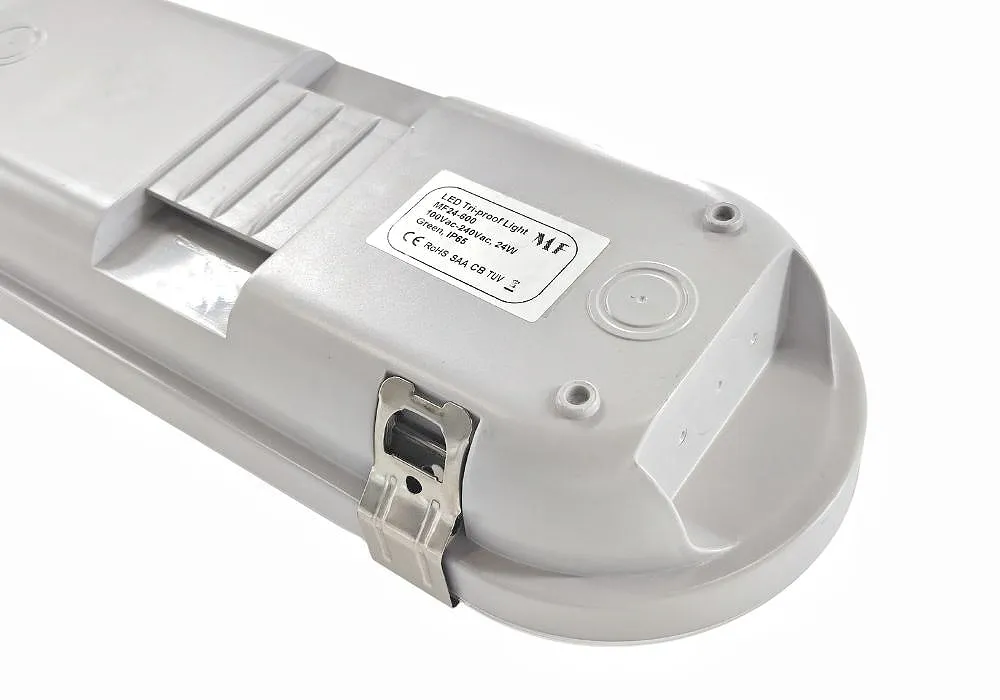

Detailed Photos

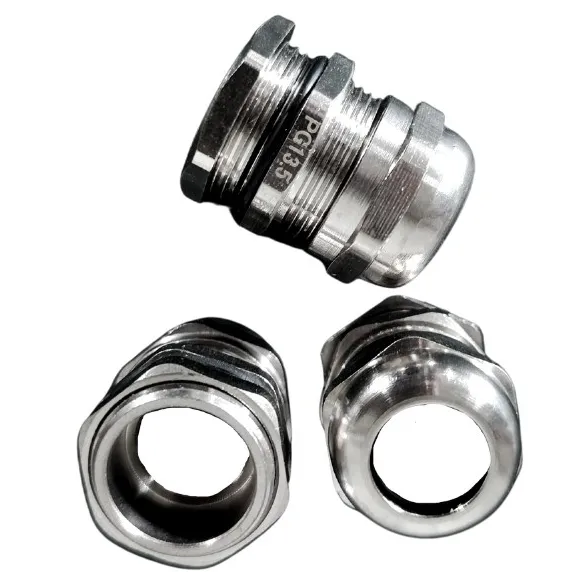

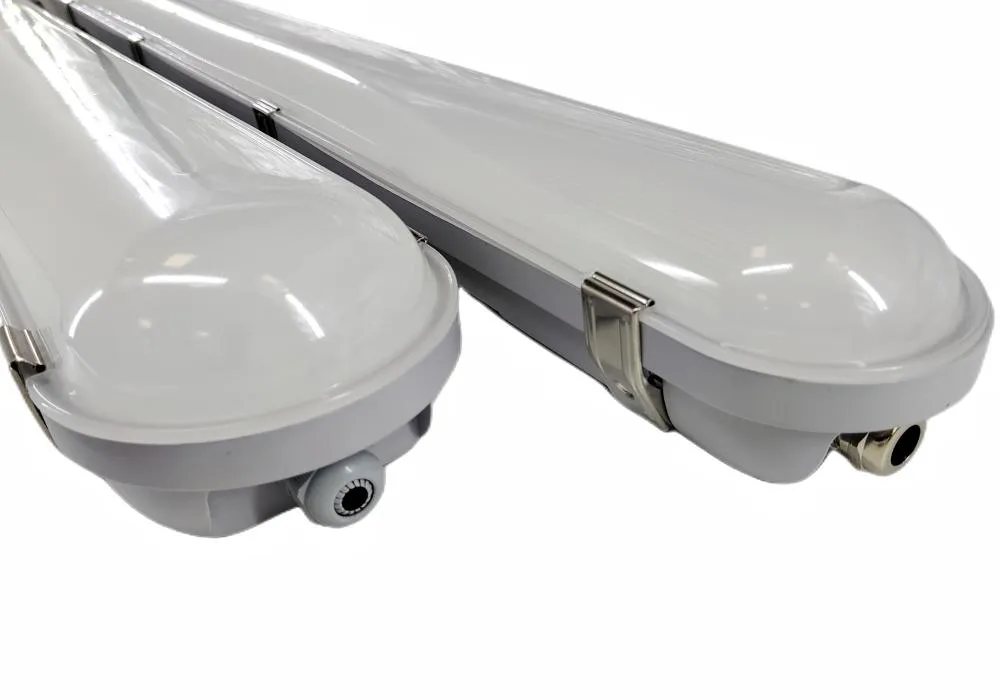

P1: M20/M22 Waterproof Connector

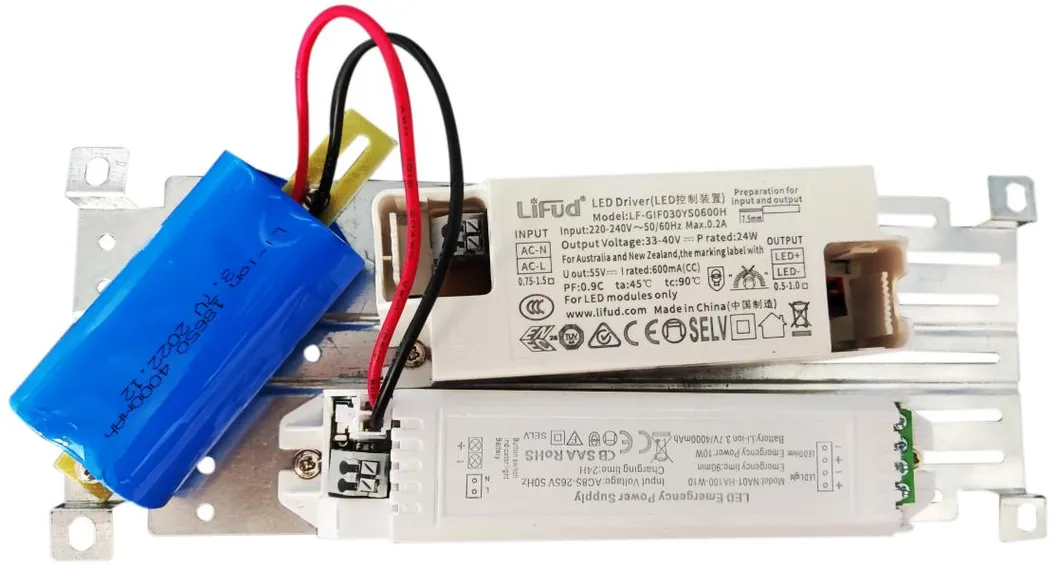

P2: LED Emergency Kit: 3 Hours
P3: Motion Sensor Kit
Dimension
| Product Code |
Dimensions(LxWxH)(mm) |
Q'ty/ctn |
Clips |
LF(mm) |
Inner Box(mm) |
Outer Box(mm) |
G.W./CTN |
N.W./CTN |
| MF-T218 |
600x125x88 |
6 |
6 |
260-300 |
660*130*95 |
680*280*310 |
8.5kg |
1.3kg |
| MF-T236 |
1200x125x88 |
6 |
10 |
800-860 |
1260*130*95 |
1280*280*310 |
14.6kg |
2.16kg |
| MF-T258 |
1500x125x88 |
6 |
12 |
1080-1150 |
1560*130*95 |
1580*280*310 |
17kg |
2.5kg |
| MF-T270 |
1800x125x88 |
4 |
16 |
860-1050 |
1860*130*95 |
1880*280*210 |
14kg |
3.2kg |

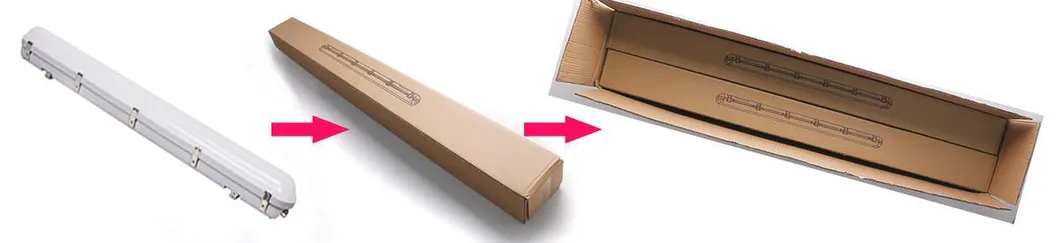

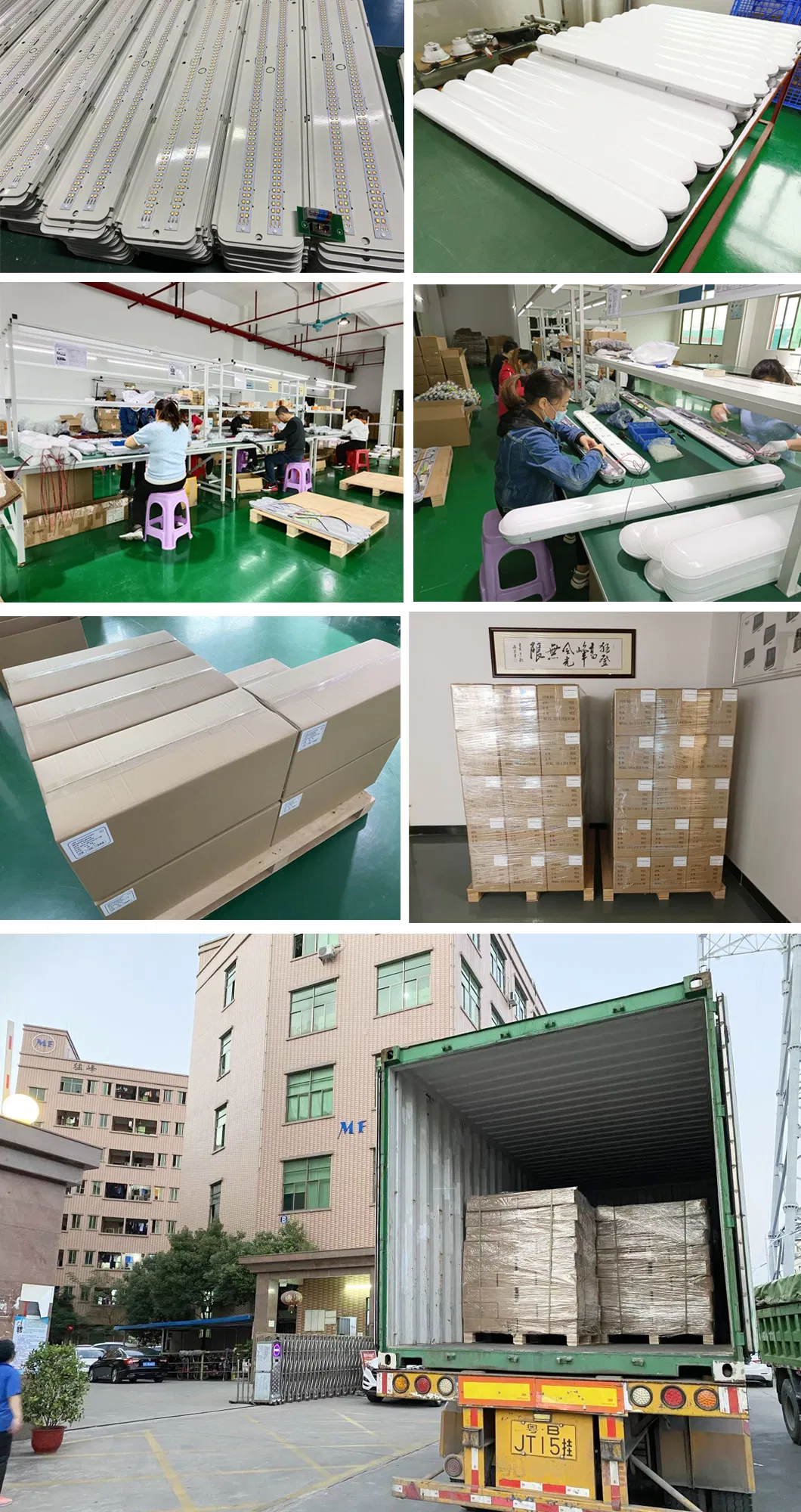

Packaging & Shipping
Applications
- Industrial lighting: LED Tri-proof lights are commonly used in industrial settings, such as warehouses, factories, and production facilities. They provide bright and energy-efficient lighting that enhances visibility and safety in these environments.
- Outdoor lighting: LED Tri-proof lights are also suitable for outdoor applications, including car parks, walkways, and building perimeters. They are designed to withstand harsh weather conditions and provide long-lasting illumination.
- Commercial lighting: LED Tri-proof lights are ideal for commercial applications, such as supermarkets, retail stores, and shopping malls. They provide optimal lighting for displays and enhance the overall shopping experience.
- Public lighting: LED Tri-proof lights are commonly used in public areas, such as airports, train stations, and bus terminals. They provide bright and energy-efficient lighting that enhances visibility and safety for commuters.
- Agricultural lighting: LED Tri-proof lights are also suitable for agricultural applications, including greenhouses and livestock farms. They provide optimal lighting for plant growth and animal husbandry.
Frequently Asked Questions
What is the IP rating of this Tri-proof LED light fixture?
This light fixture has an IP66 rating, which ensures full protection against dust ingress and high-pressure water jets, making it ideal for wet and harsh industrial environments.
Does this fixture support emergency operation during power outages?
Yes, it features an integrated emergency kit that provides up to 90 minutes (or up to 3 hours depending on configuration) of emergency backup lighting during power outages.
What are the competitive advantages of using this LED Tri-proof lighting?
Key advantages include high energy efficiency (140lm/W), a long lifespan of over 50,000 hours, IP66 waterproof rating, IK08 impact resistance, high color accuracy (CRI >85), easy installation, and optional motion sensor integrations.
What is the input voltage range and warranty period for this fixture?
The light fixture supports an input voltage range of AC 100-277V (50/60Hz) and comes with a 5-year warranty period.
Where can these Tri-proof lights be applied?
They are highly versatile and suitable for industrial lighting (warehouses, factories), outdoor lighting (parking lots, walkways), commercial lighting (supermarkets, malls), public spaces (airports, subways, tunnels), and agricultural lighting (greenhouses, farms).
