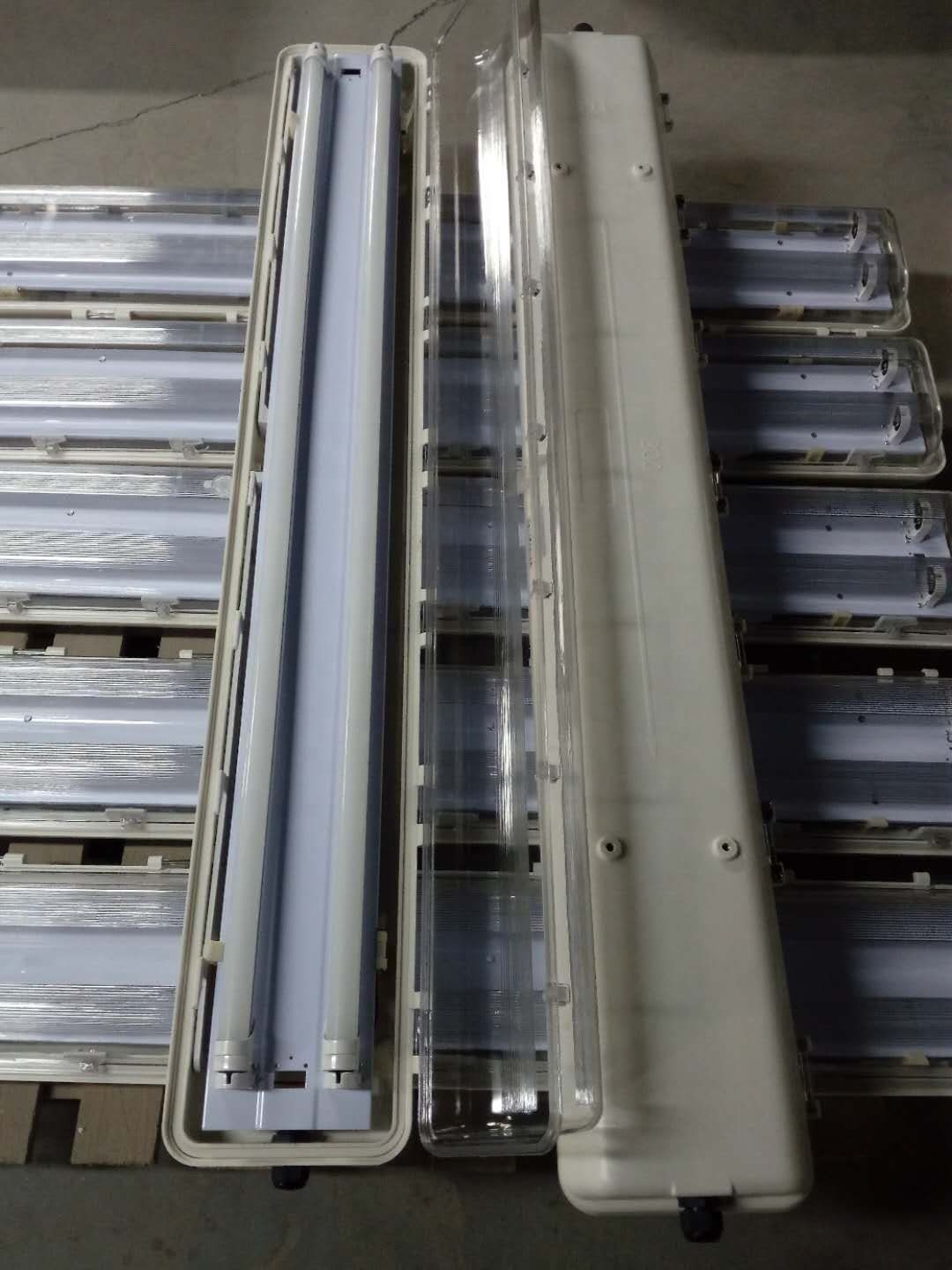

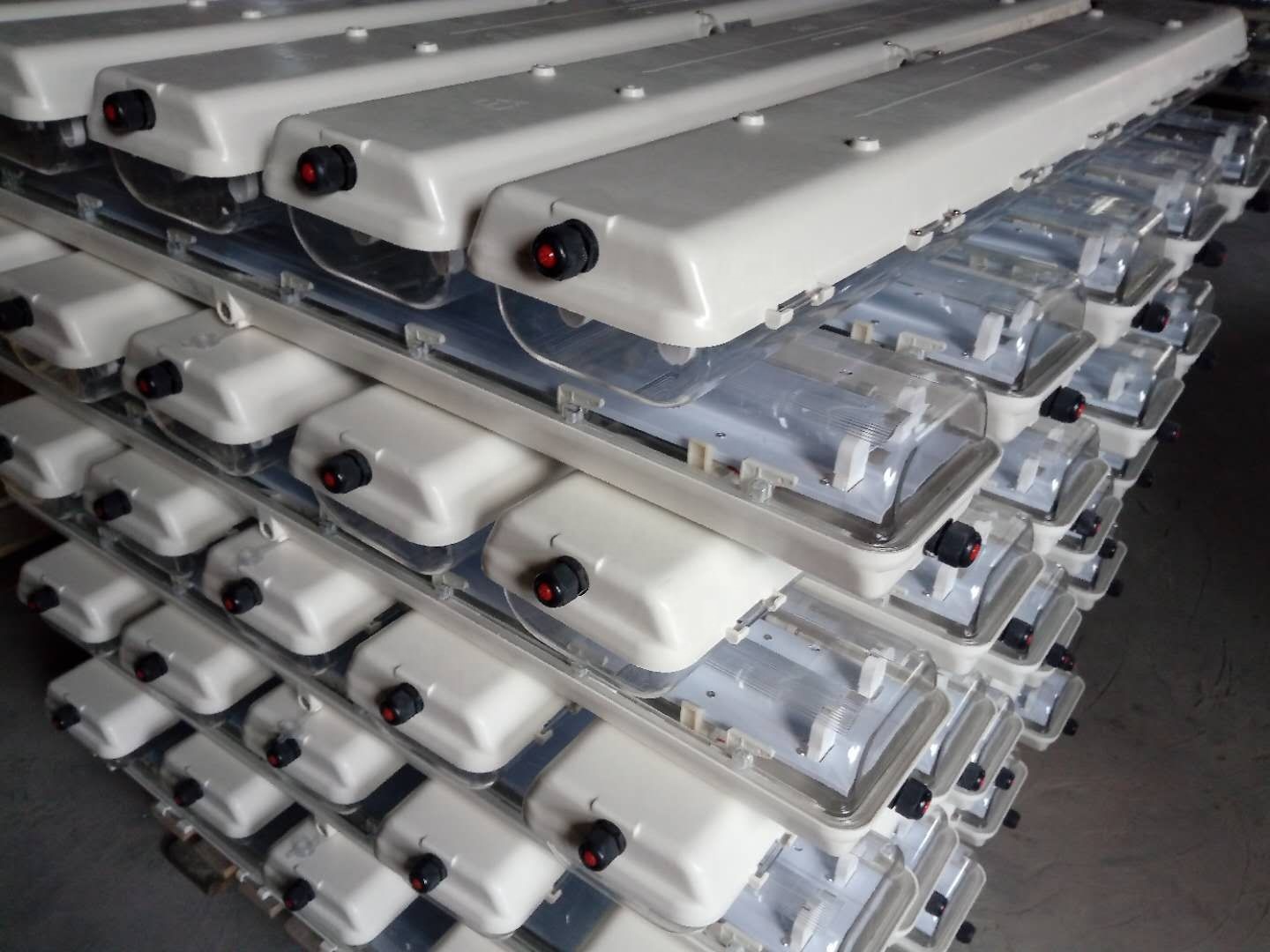

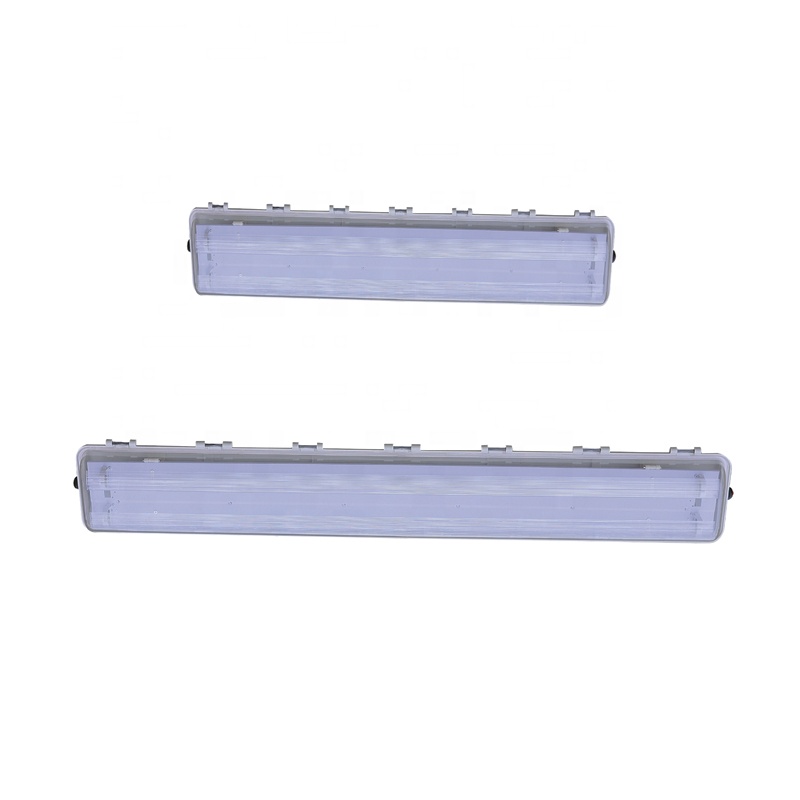

BYS Engineer Plastic Explosion Proof 2x36w 4ft Fluorescent Lamp Led Light Fixture Anti-corrosion Waterproof Dustproof

Product Description

BYS Engineer Plastic Explosion Proof 2x36W 4ft Fluorescent Lamp LED Light Fixture
Anti-Corrosion Waterproof Dustproof
Applicable Ex-mark Rated Voltage Rated Power Degree of Protection Corrosion Proof Class
Zone 1 & 2
Zone 20, 21 & 22
Ex ed mb IIC
Ex tb III C
220V 2*36W (2*18W LED) IP67 WF2
BYS Explosion Proof Light Fixture
Applications
  • Suitable for explosive gas environment Zone1 and Zone2.
  • Suitable for IIA, IIB, IIC explosive gas environment.
  • Suitable for Hazardous dust area: Zone20, Zone21, Zone22.
  • Can be used in the environment of temperature group for T1~T6.
  • Lighting source: T8 bin-pin tube.
  • Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Technical Parameters
  • Meet a criterion: G3B3836.1, GB3836.2, GB12476.1, IEC60079-0, IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1
  • Ex-proof Mark: Exedmb II CT5 Gb, DIP A21 TA, T5
  • Rated voltage: AC220V
  • Protection grade: IP65, IP67* (If need IP67, need to inform us)
  • Corrosion-proof grade: WF1
  • Cable outer dia: 9mm~14mm
  • Battery charging time: ≤24h
  • Emergency Start time: ≤0.3s
  • Emergency lighting duration: ≥90min

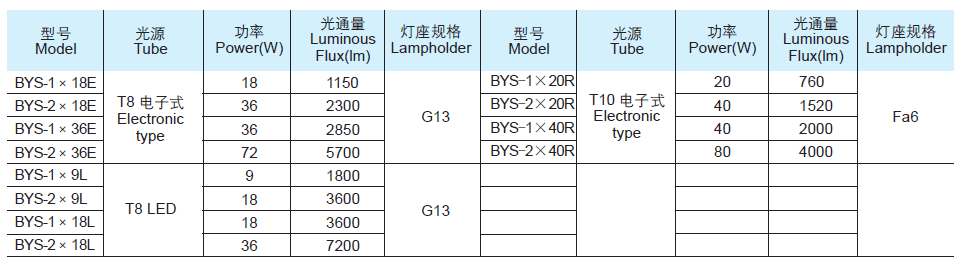

Selection Table
Selection Table
Product Features
  • Aluminium alloy Enclosure, high voltage electrostatic powder coated after shot blasted.
  • High strength toughened glass cover.
  • Exposed fasteners are of stainless steel with function of high corrosion-proof.
  • With grids to adjust lighting effect and reduce the glare.
  • Modular plug structure design, only need disconnect end cover draw out core to change tubes.
  • For fitting with emergency unit, it will automatically turn to emergency lighting when power circuit failed.
  • Inside the emergency unit designed with over charging and over discharging protection circuit.
  • Screw connection type, for easy installation and maintenance.
  • Power factor can be over 0.95.
  • Steel conduit or cable wirings.

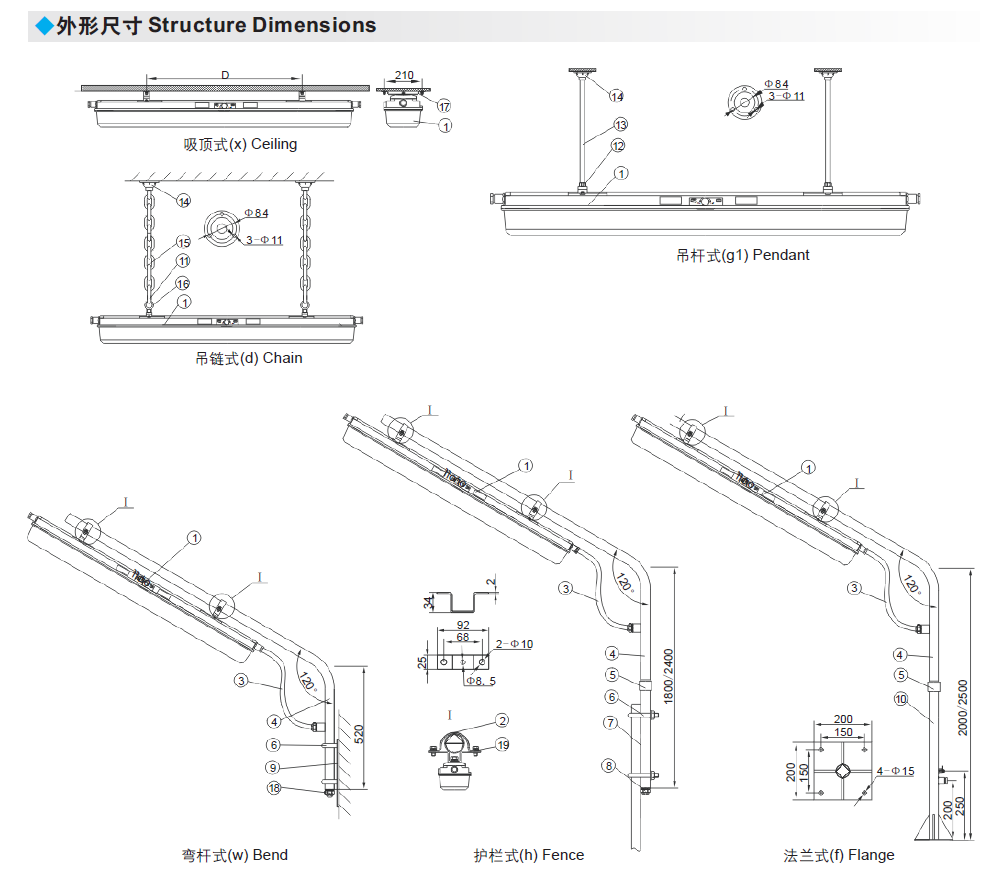

Dimensions
Order Information
  • Lamps has factory configuration light source, can be used directly access power;
  • Take emergency unit, installation only ceiling type and boom type applicable;
  • When double tube fluorescent lamp start emergency unit, Only one tube work.
  • Ingress protection IP65 is available as per request.

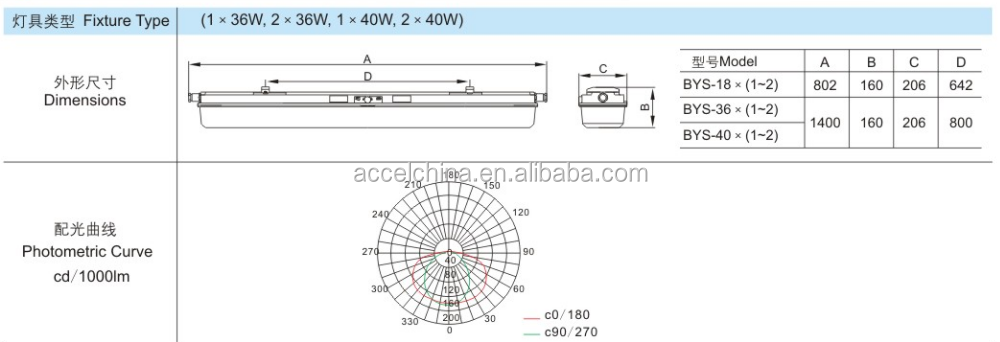

Installation Guide
Products Photos

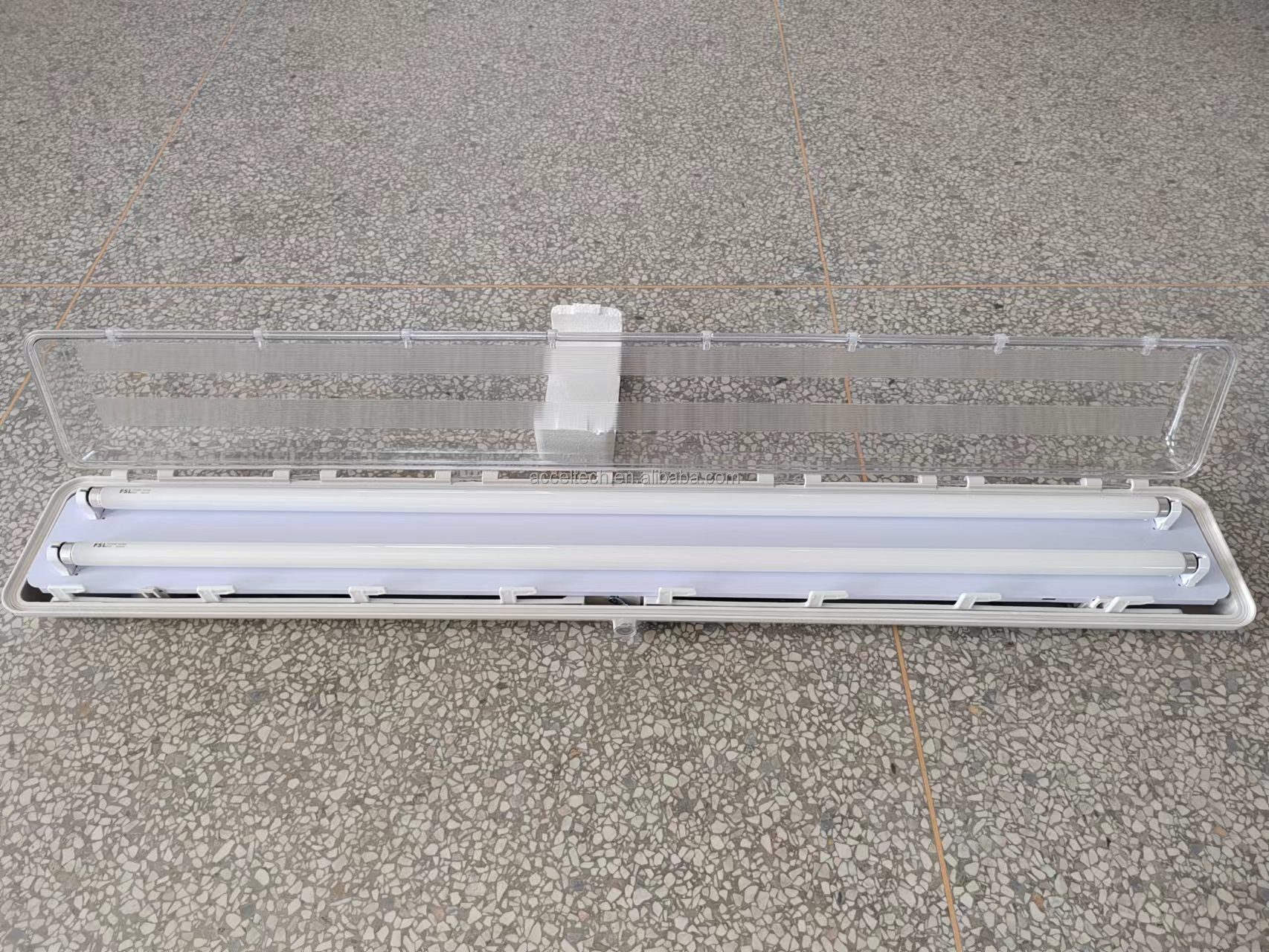

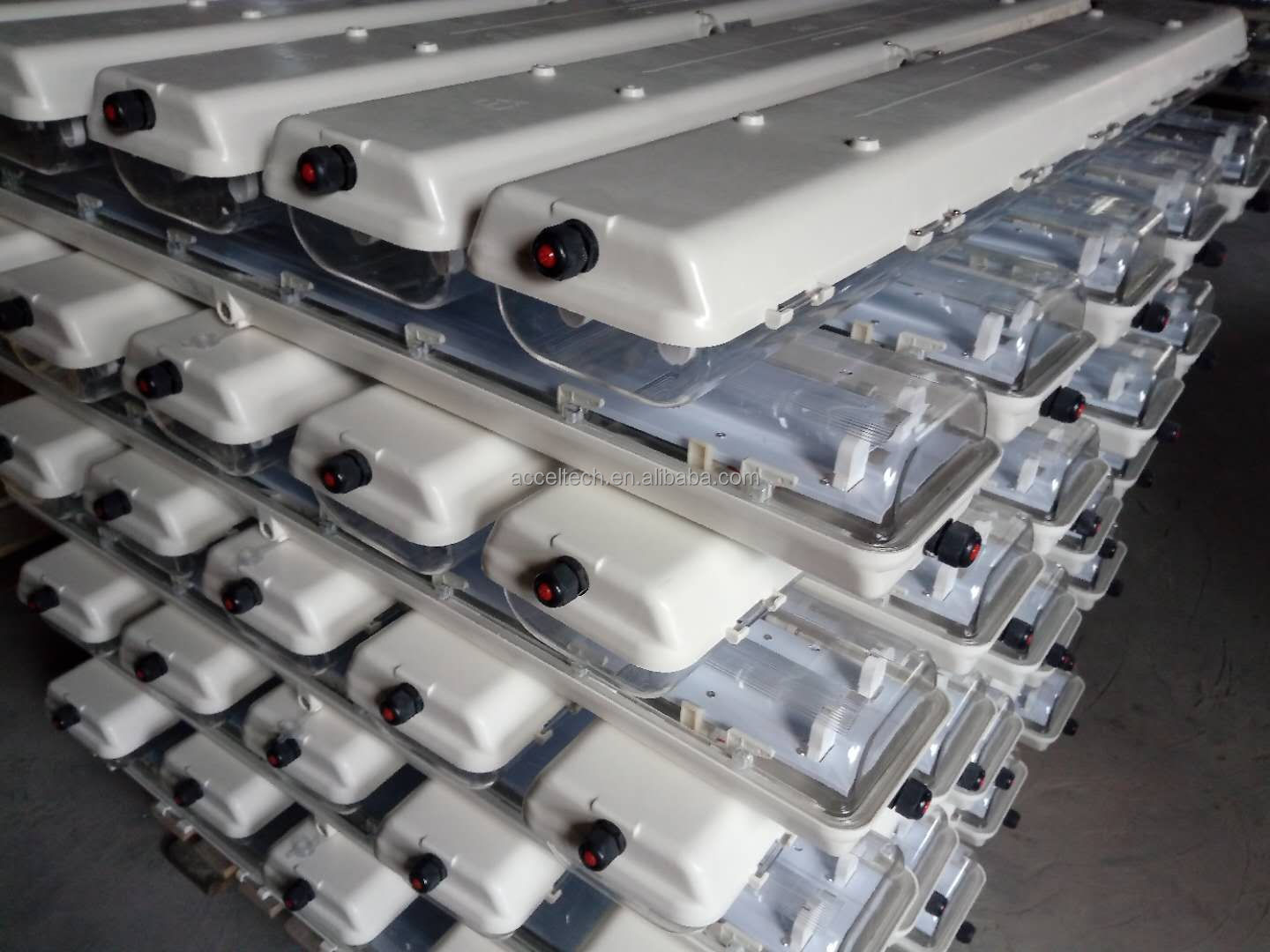

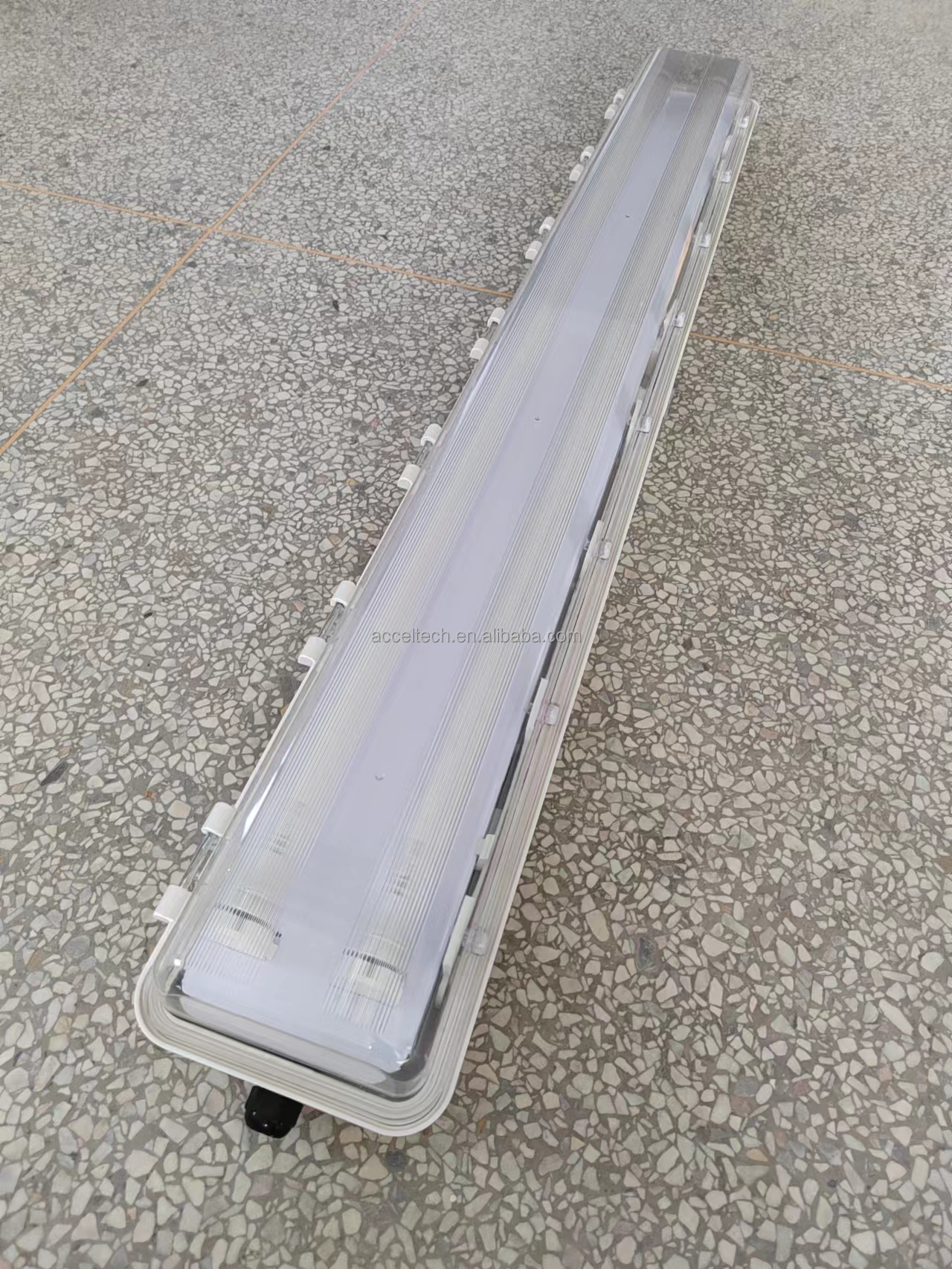

Product Photo 1 Product Photo 2 Product Photo 3 Product Photo 4
Frequently Asked Questions
1. What are the main advantages of this explosion-proof light?

The main advantage is the high performance-to-price ratio, offering reliable explosion protection, high corrosion resistance (WF2), and modular design for easy maintenance.

2. In which hazardous zones can this fixture be installed?

It is suitable for Gas Zones 1 & 2 (IIA, IIB, IIC) and Dust Zones 20, 21, and 22, making it ideal for refineries, chemical plants, and military sites.

3. Does this light fixture support emergency lighting?

Yes, it can be fitted with an emergency unit that automatically activates within 0.3 seconds of a power failure, providing at least 90 minutes of illumination.

4. What is the protection rating and corrosion resistance?

The standard protection grade is IP65, with IP67 available upon request. It features a WF1/WF2 corrosion-proof class, utilizing stainless steel fasteners and high-strength toughened glass.

5. How is the maintenance handled for the fluorescent tubes?

The fixture features a modular plug structure design. You only need to disconnect the end cover and draw out the core to change the tubes without complex disassembly.

6. What is the warranty policy for these products?

We offer at least a 2-year warranty for our products, with longer warranties available for certain items and full lifespan after-sales support.
