Basic Specifications
Power
400W/500W/600W/800W/1000W/1200W
Application
Park, Square, Factory, Garden, Ports, Docks, Airport, Large Sports Stadium, Fields etc
Certification
CCC, CE, EMC, LVD, RoHS
Operating Voltage
110-240V
Luminous Efficiency
160lm/W±10%
Housing Color
Black or OEM

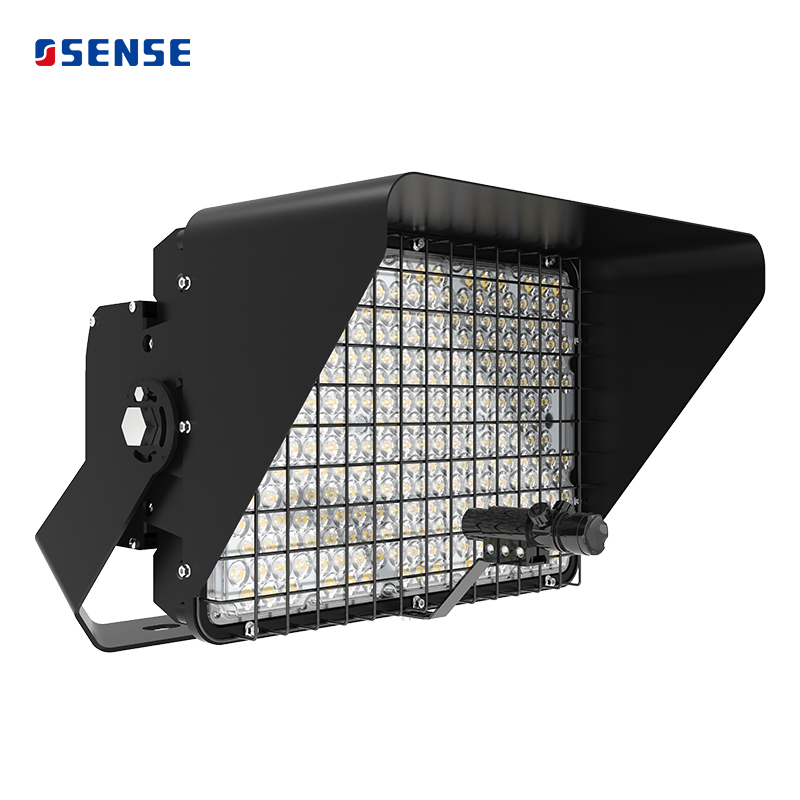

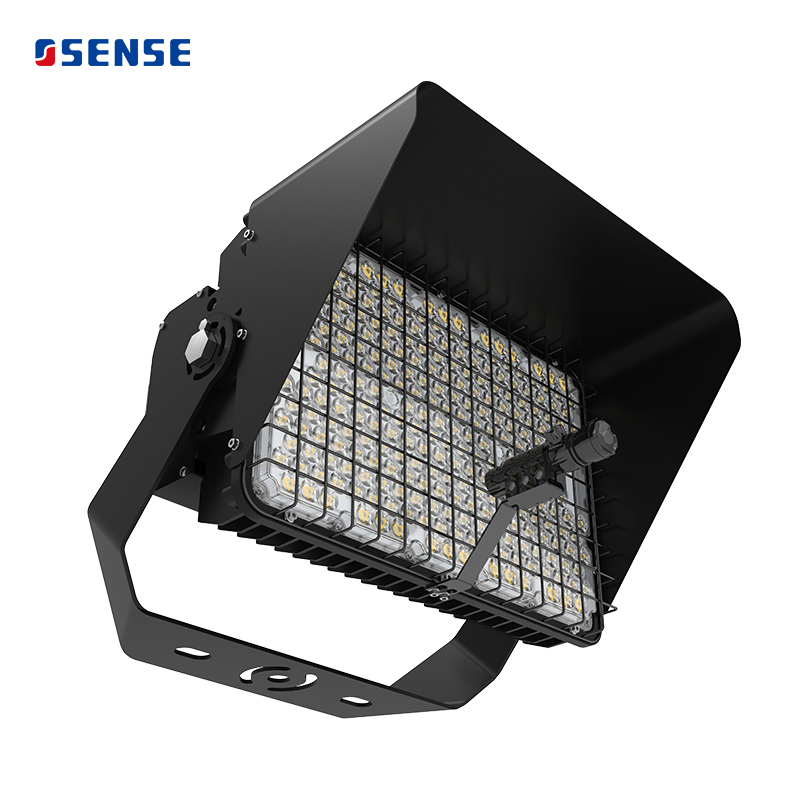

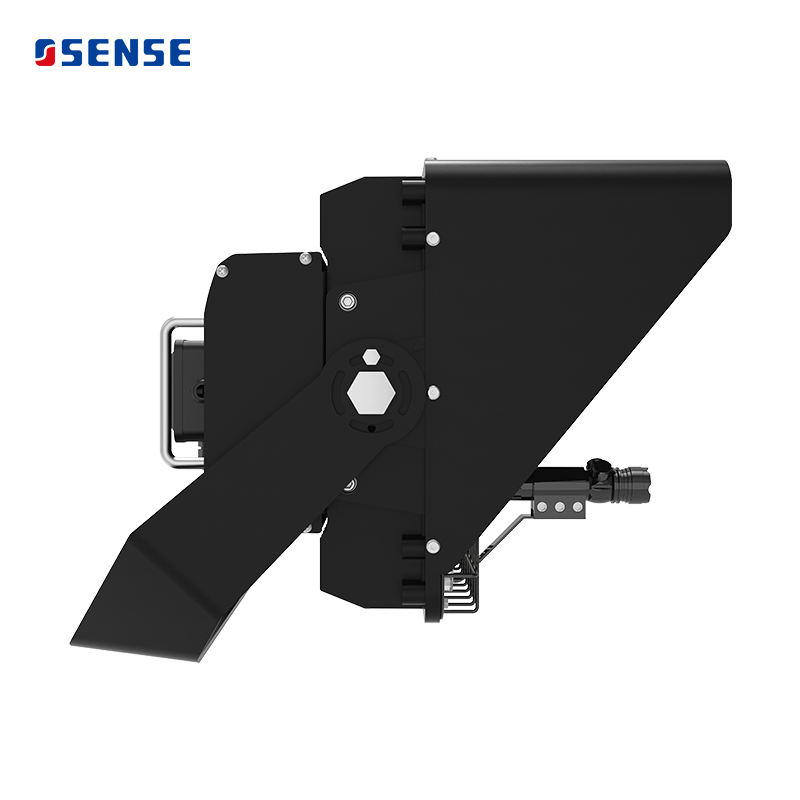

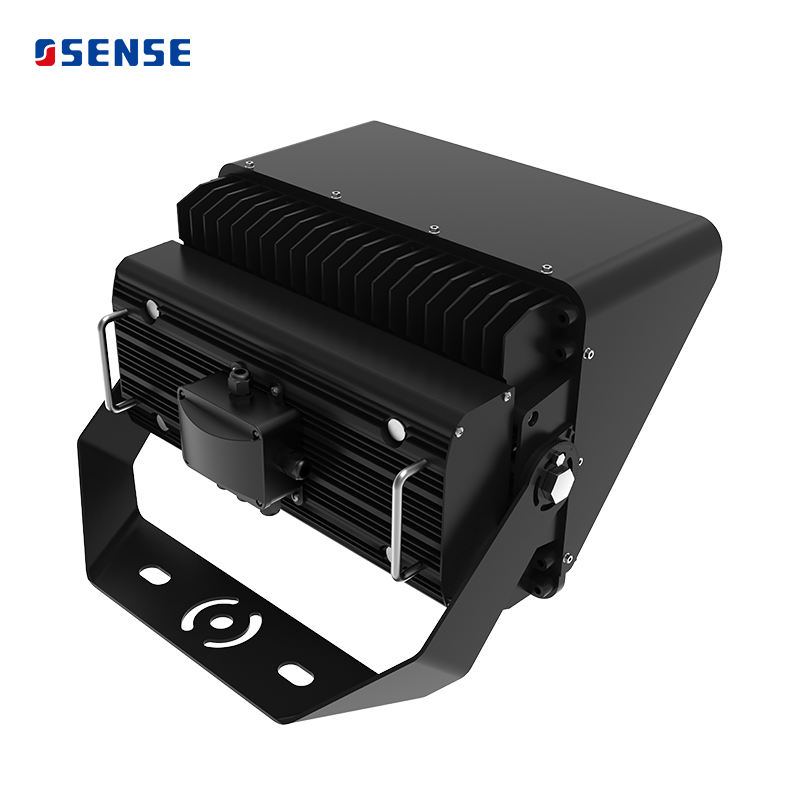

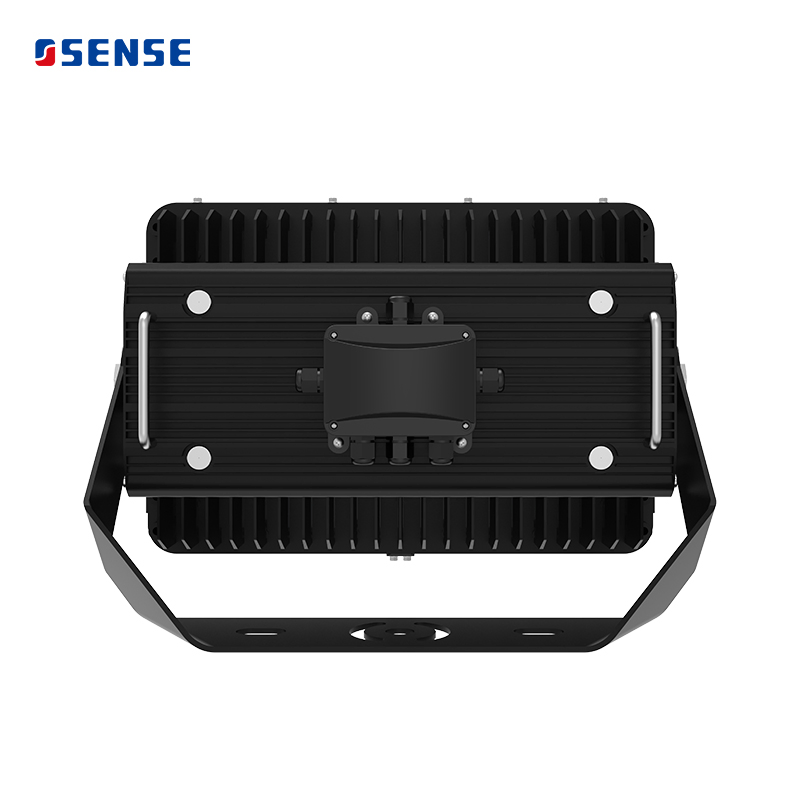

LED LH Stadium Light Features
- High efficiency, lightweight, and small size
- DALI/1-10v/0-10v/DMX512 dimming optional

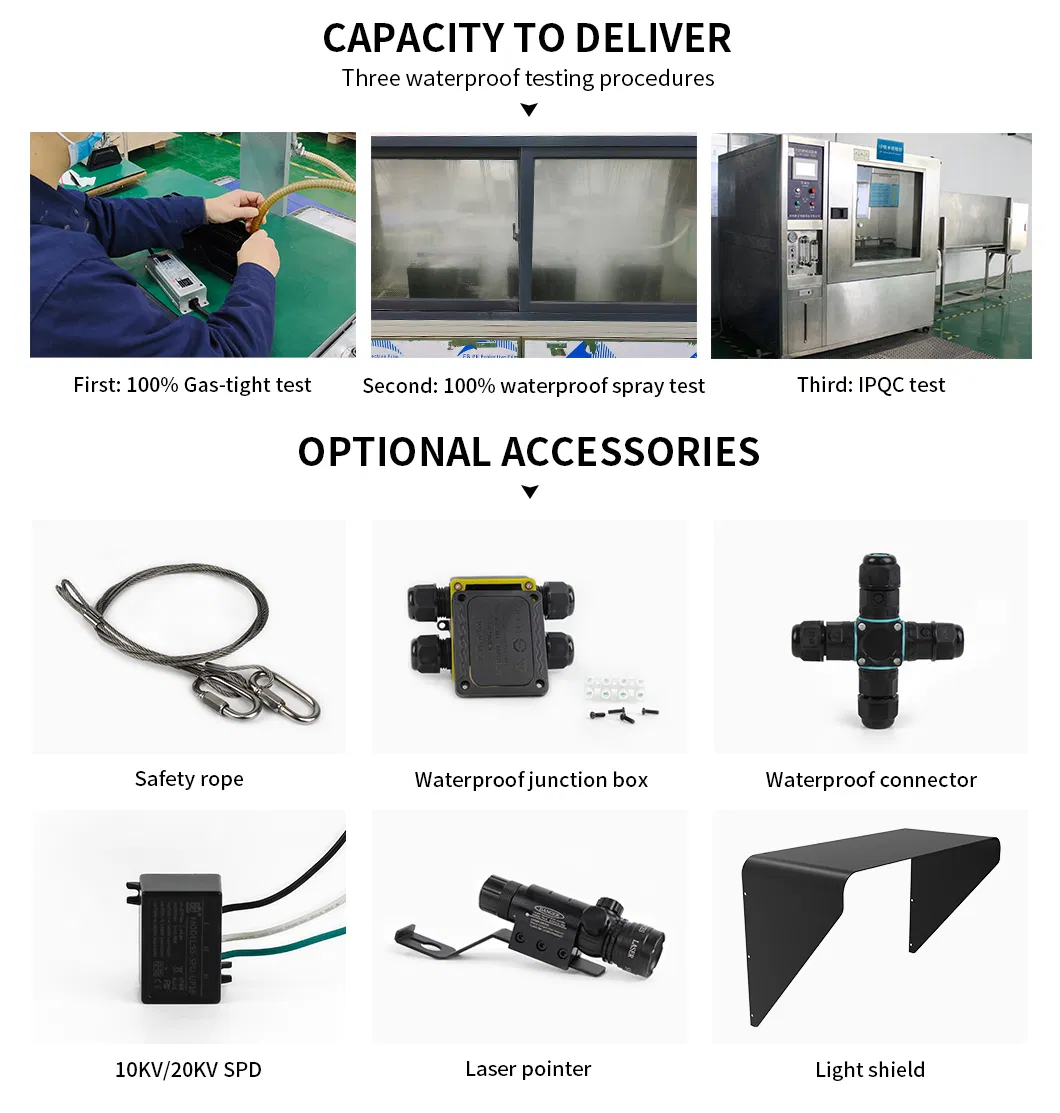

- Customizable spare parts: shade cover/laser pointer/anti-collision net
- Realize high-definition broadcast of venues
- CRI 80 and 90 optional
- Housing and driver box are separated for easy maintenance
- IP66 / Ik 08 Rating
- Modular design for different power specifications
- 10kv/20kv SPD function for optional
- Polarized lenses to effectively control glare
- Adjustable stents designed for flexible installation
Technical Information
| GENERAL INFORMATION |
ELECTRIC INFORMATION |
| Mounting Module | Bracket system |
Electrical Class | Class I |
| Operating Temp | -30ºC/+45ºC |
Nominal Voltage | 100-240VAC/100-277VAC/180-528VAC |
| Lens Options | 25°; 40° |
LED Lamp Power | 400W - 1200W (Up to 168000Lm) |
| Driver Brand | Meanwell/Moso/Sosen/Inventronics |
Power Factor | ≥0.95 |
| HOUSING AND MATERIALS |
OPTICAL INFORMATION |
| Housing | ADC 12 die-casting + AL 1070 aluminum |
Color Temp | 4000K, 5000K, 5700K |
| Optic | PC |
CRI | CRI≥70 (80/90 optional) |
| Impact Resistance | IK08 (IK09/IK10 optional) |
LED Brand | CREE; Nichia; Lumiled |
| Standard Colour | RAL9017 Black; RAL9007 Gray |
Lifetime | >50000h - L70B50 |

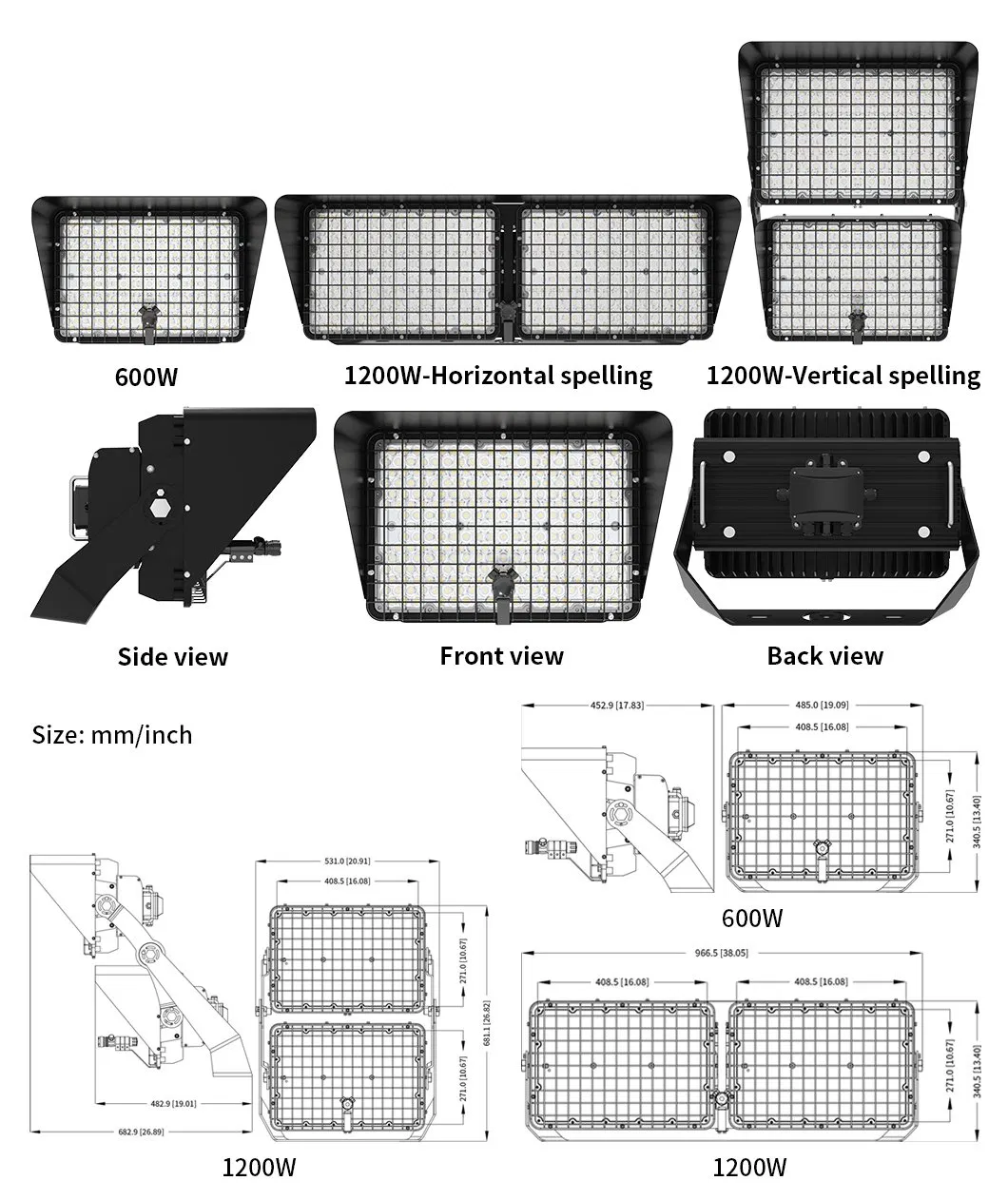

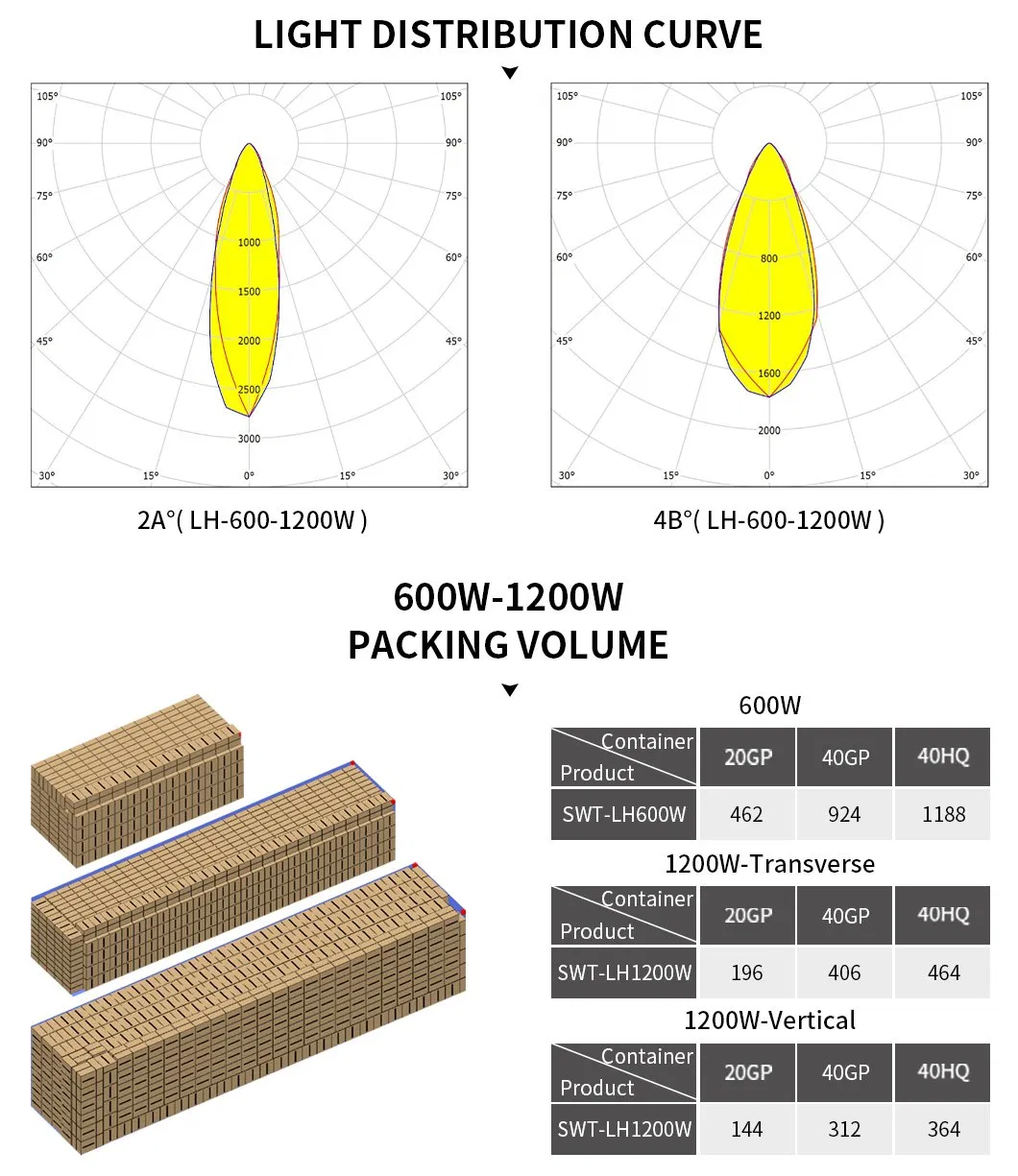

Product Details Gallery
Frequently Asked Questions
Are you a manufacturer?

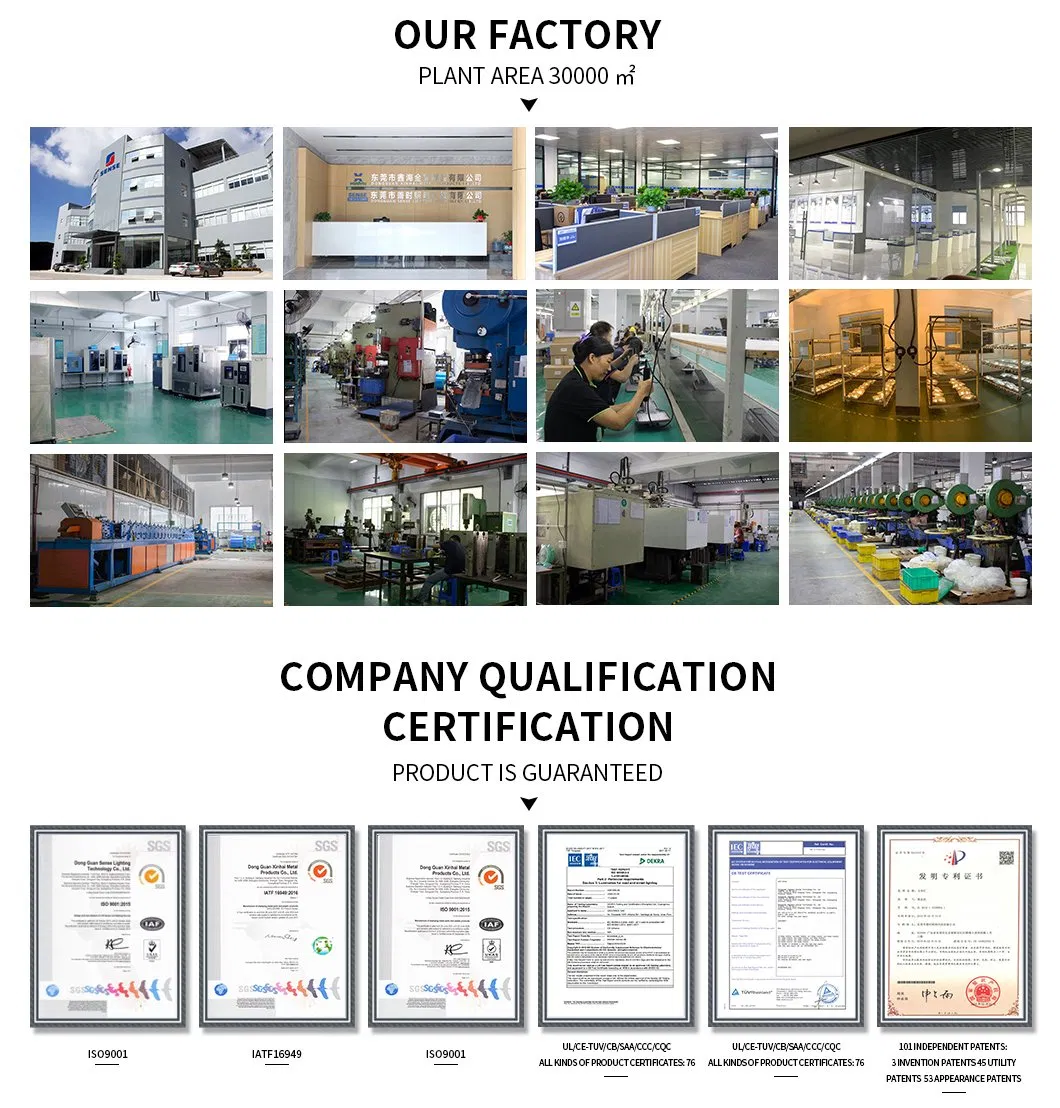

Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
What Certification do you have?
TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES reports.
Can I have our LOGO on the products and packages?
Yes, we provide OEM service to our customers.
What is the warranty of your products?
5-7 Years warranty depends on customer's requests.
What about the lead time?
3-7 days for sample, 10-20 days for mass production based on order quantities.
How to deal with the faulty products?
Our products are produced in a strict quality control system (defective rate < 0.1%). For defects in warranty, we send new lights or repair/replace them according to the actual situation.
