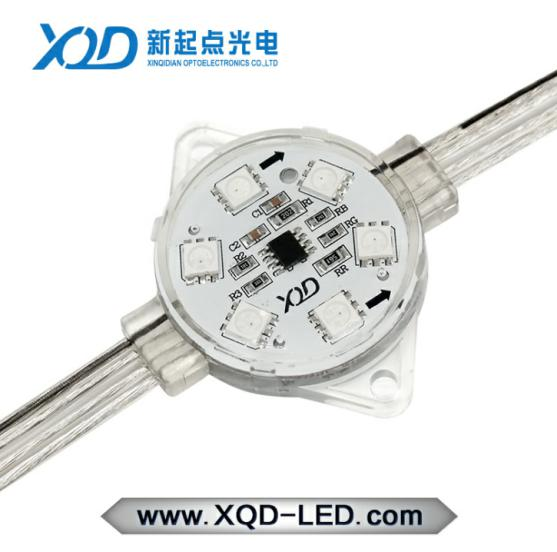

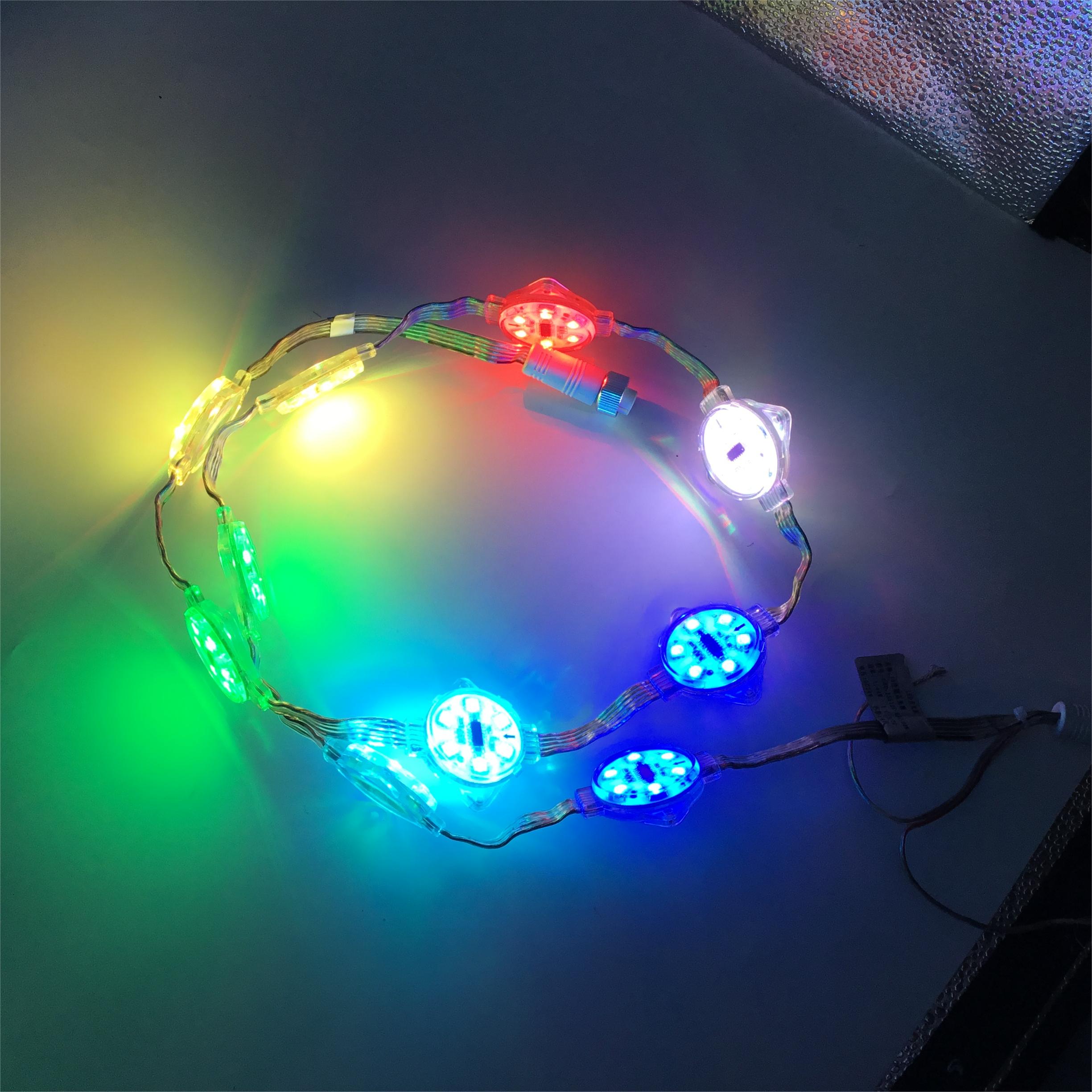

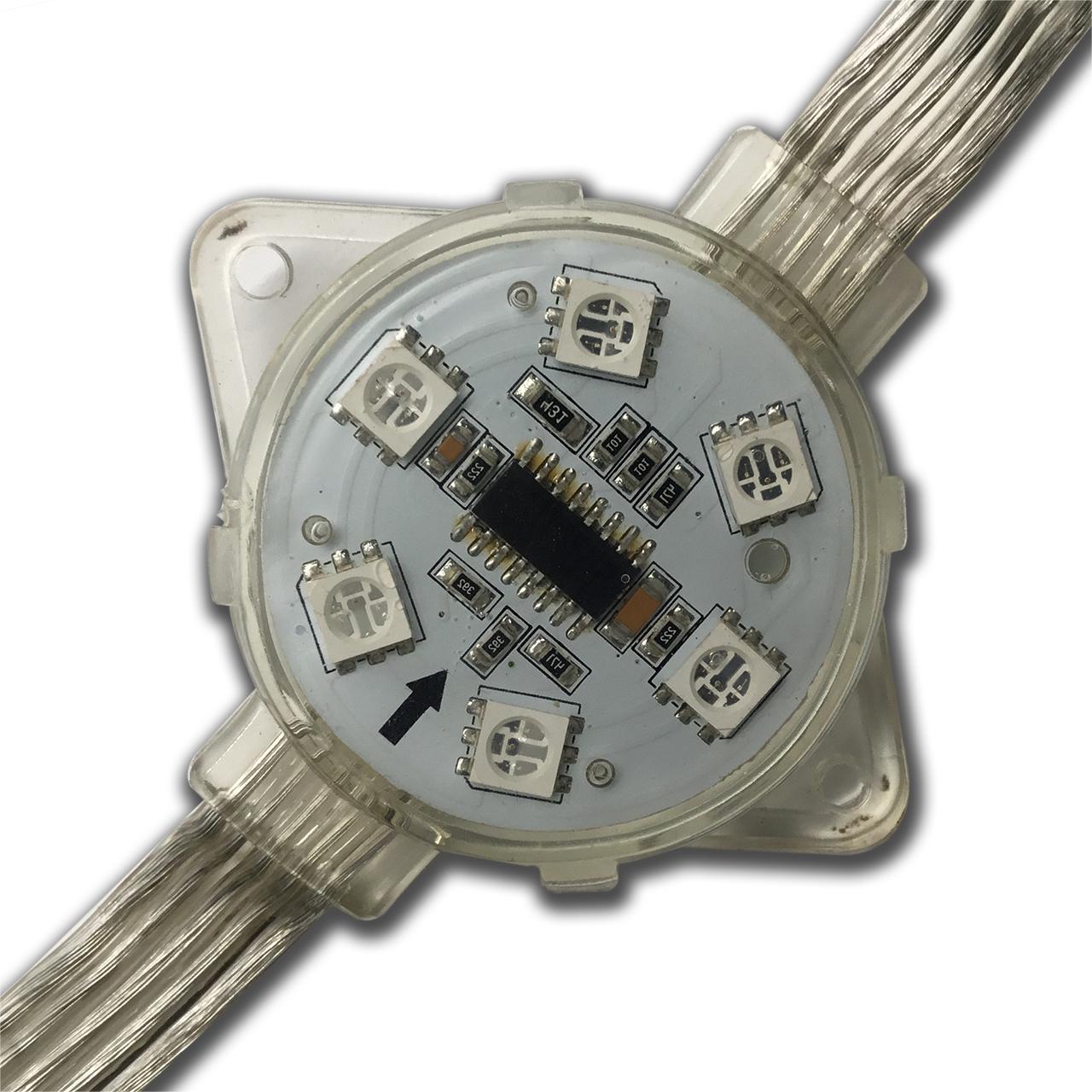

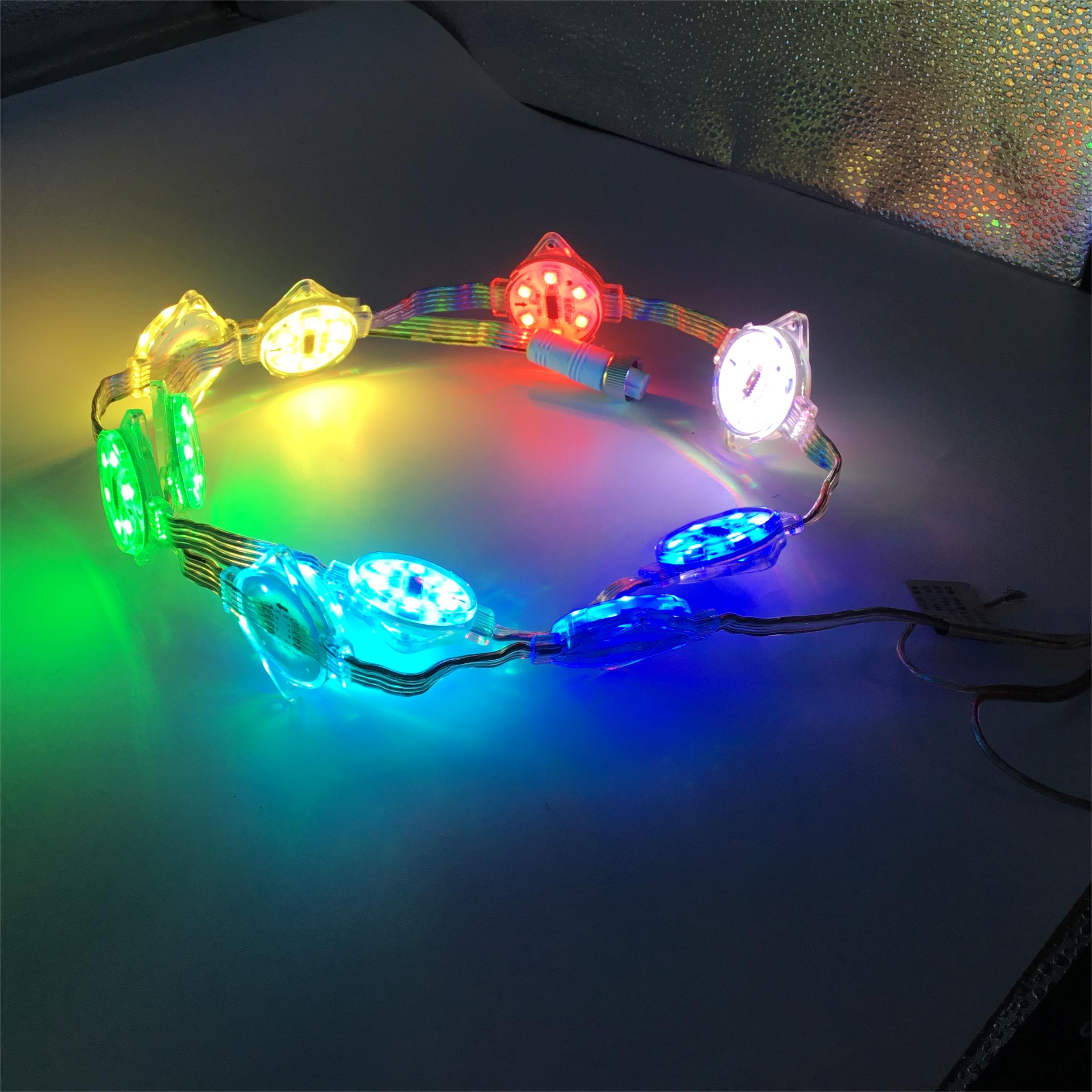

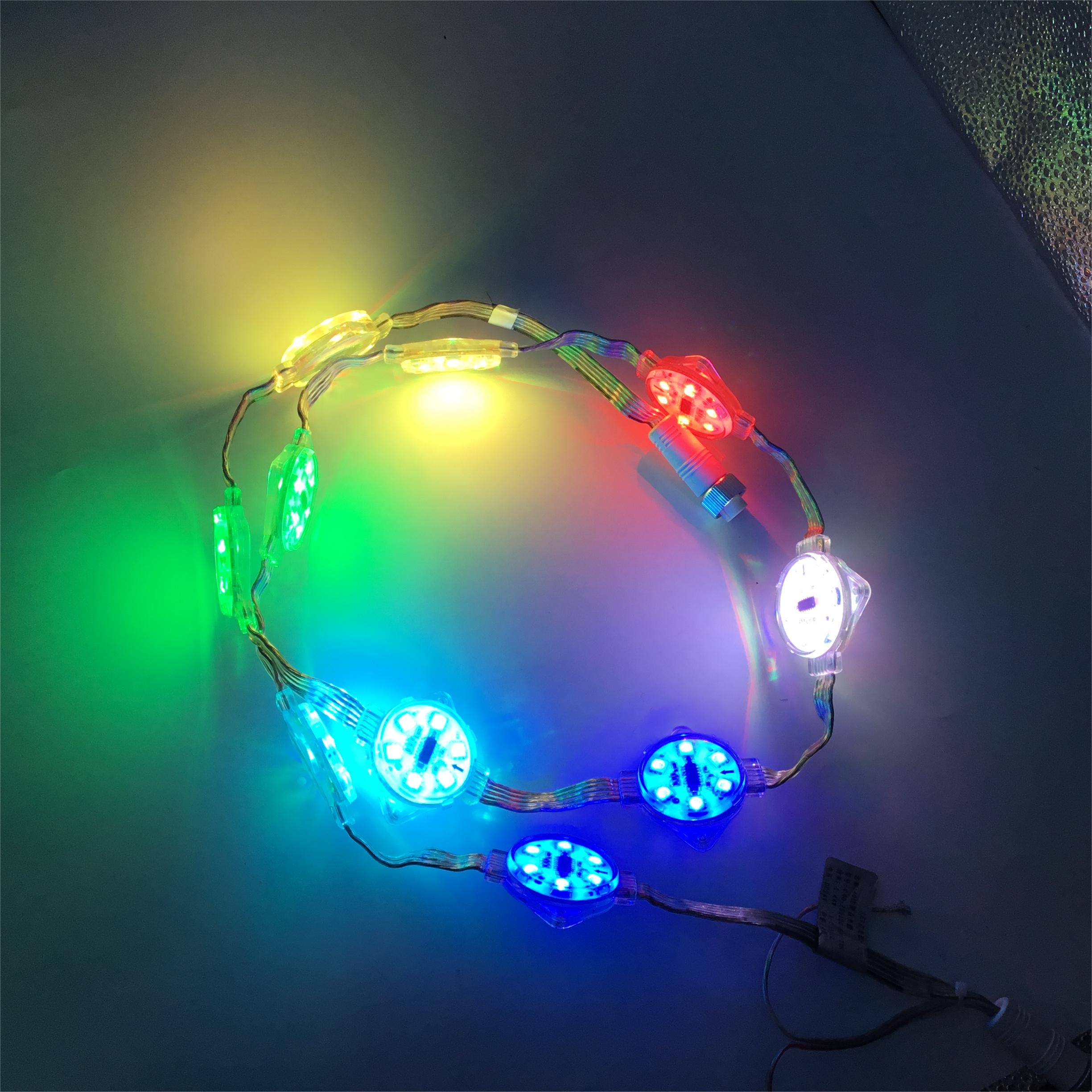

Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
1 / 5
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation
Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation

Weatherproof Outdoor Facade Lighting 40mm Diameter IP68 RGB DMX Pixel Light Led System Aluminum Channel Installation

Send Inquiry

Product Description

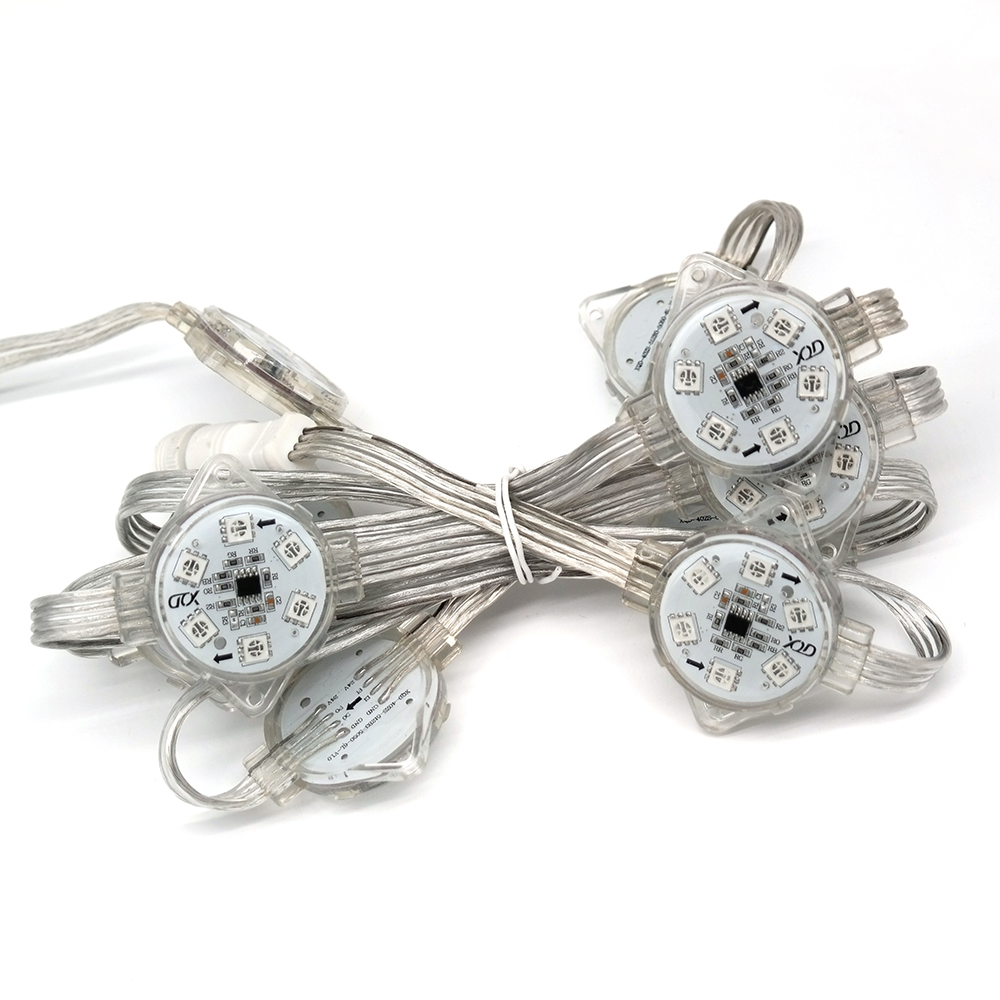

Product Overview
Product Features
1
Adopt integrated molding process, high protection level.
2
High-quality flame retardant rubber, anti-UV, anti-salt fog.
3
Adapt to multiple installation methods, simple and reliable installation.
4
Commonly used to outline building contours; a perfect substitute for line light products to achieve flowing water, horse race effects, and video images. Ideal for large advertising displays and city signs.
Technical Specifications
Basic Parameters Optical Parameters
Product ModelXQD-DZ104 LED ColorRGB

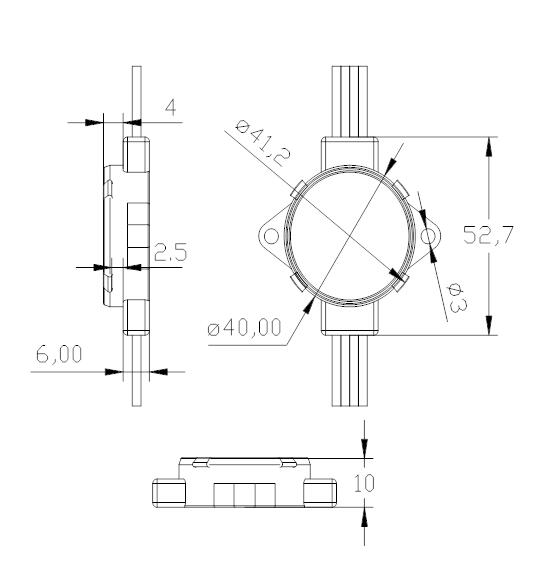

Product SizeΦ40mm*10mm Beam Angle120°
EnvironmentIndoor / Outdoor Color Resolution3*8bit
Weight≈23g Lamp BeadsSMD5050*6LED
Shell MaterialPVC Luminous Flux54.7lm
Max Connection100PCS/string Brightness19.1cd
Electrical Parameters Protection Parameters
Operating VoltageDC24V Waterproof LevelIP68
Rated Power1.44W Flame RetardancyV-0
Control SystemDMX512 UV ResistanceLevel 4
Life Expectancy50,000 hours Impact ResistanceIK10

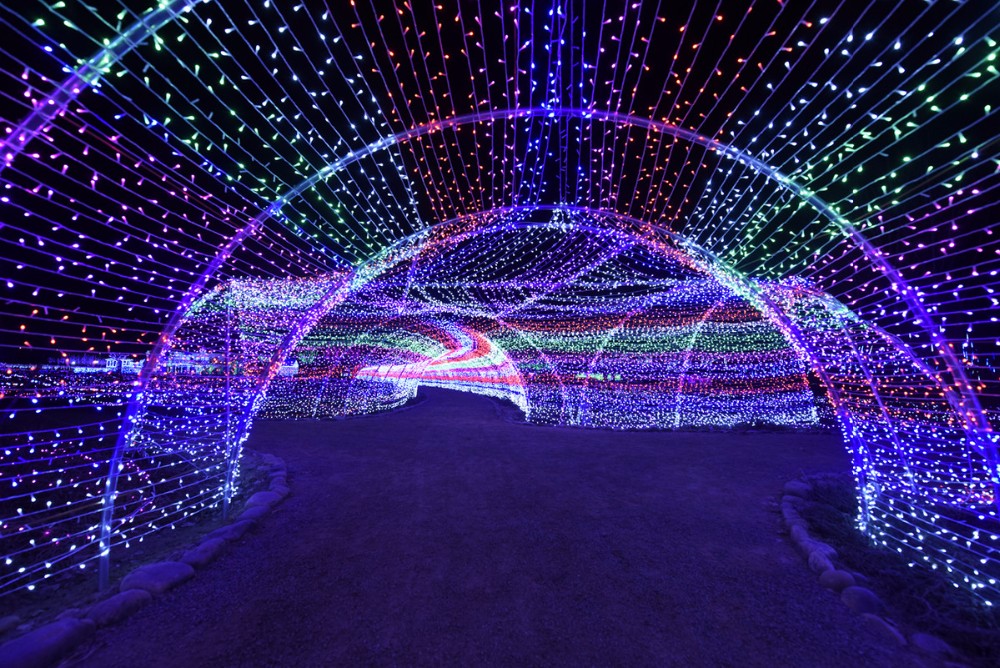

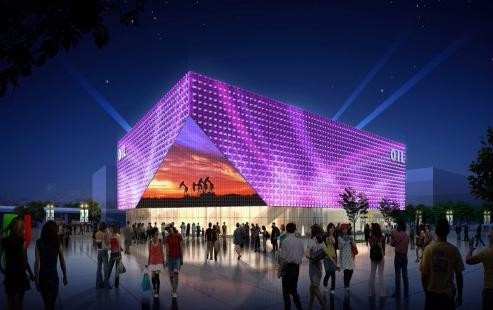

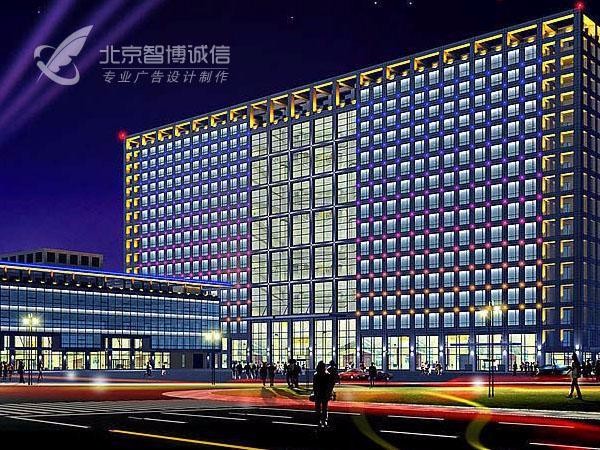

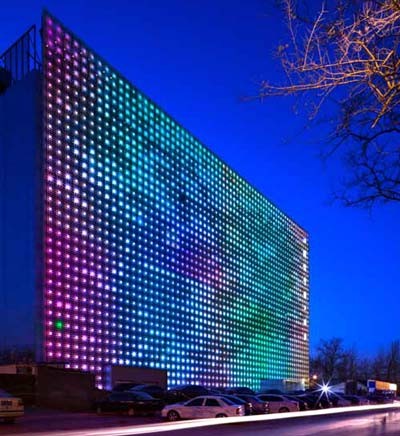

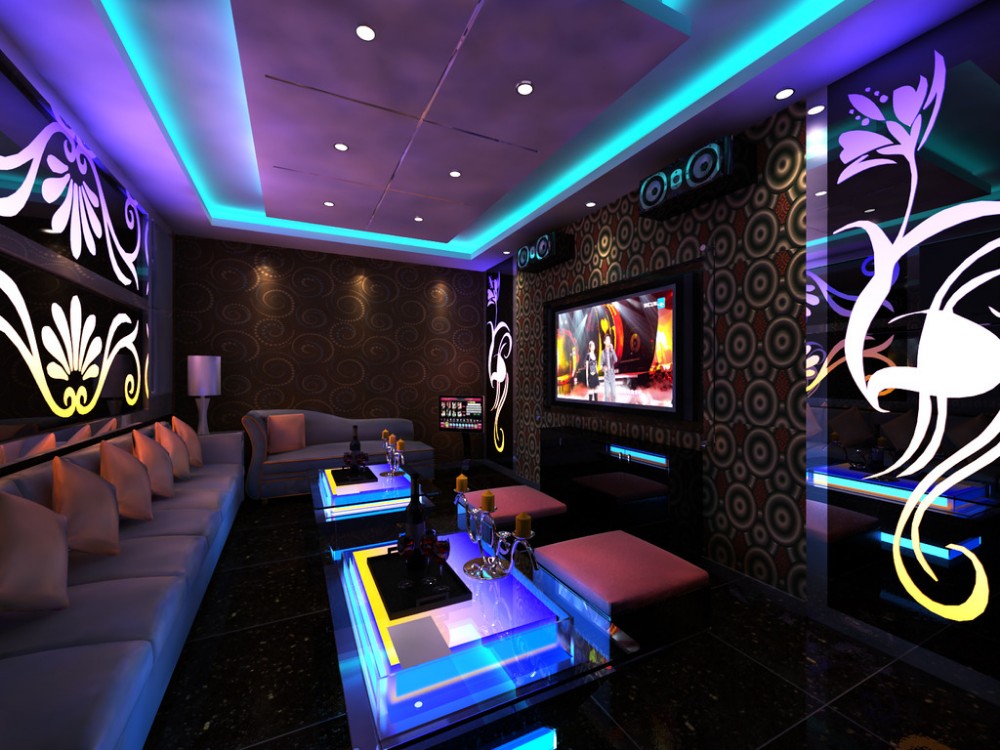

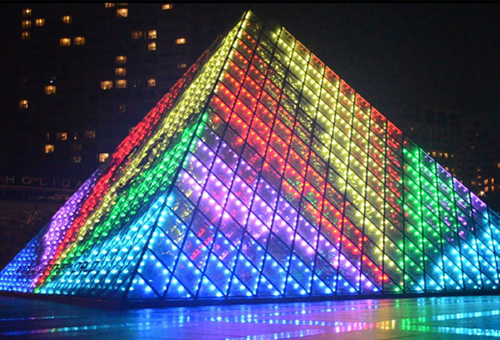

Project Display

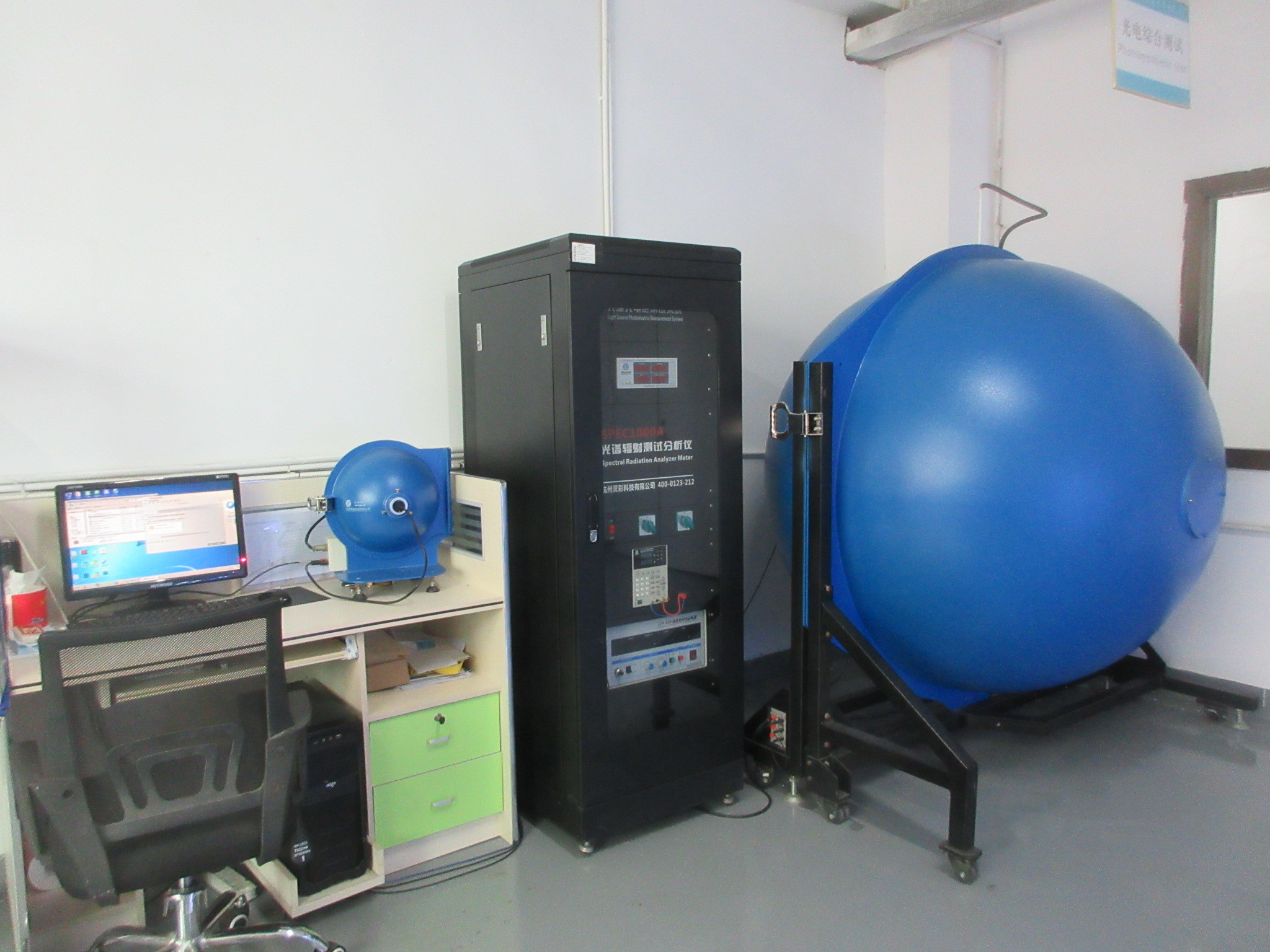

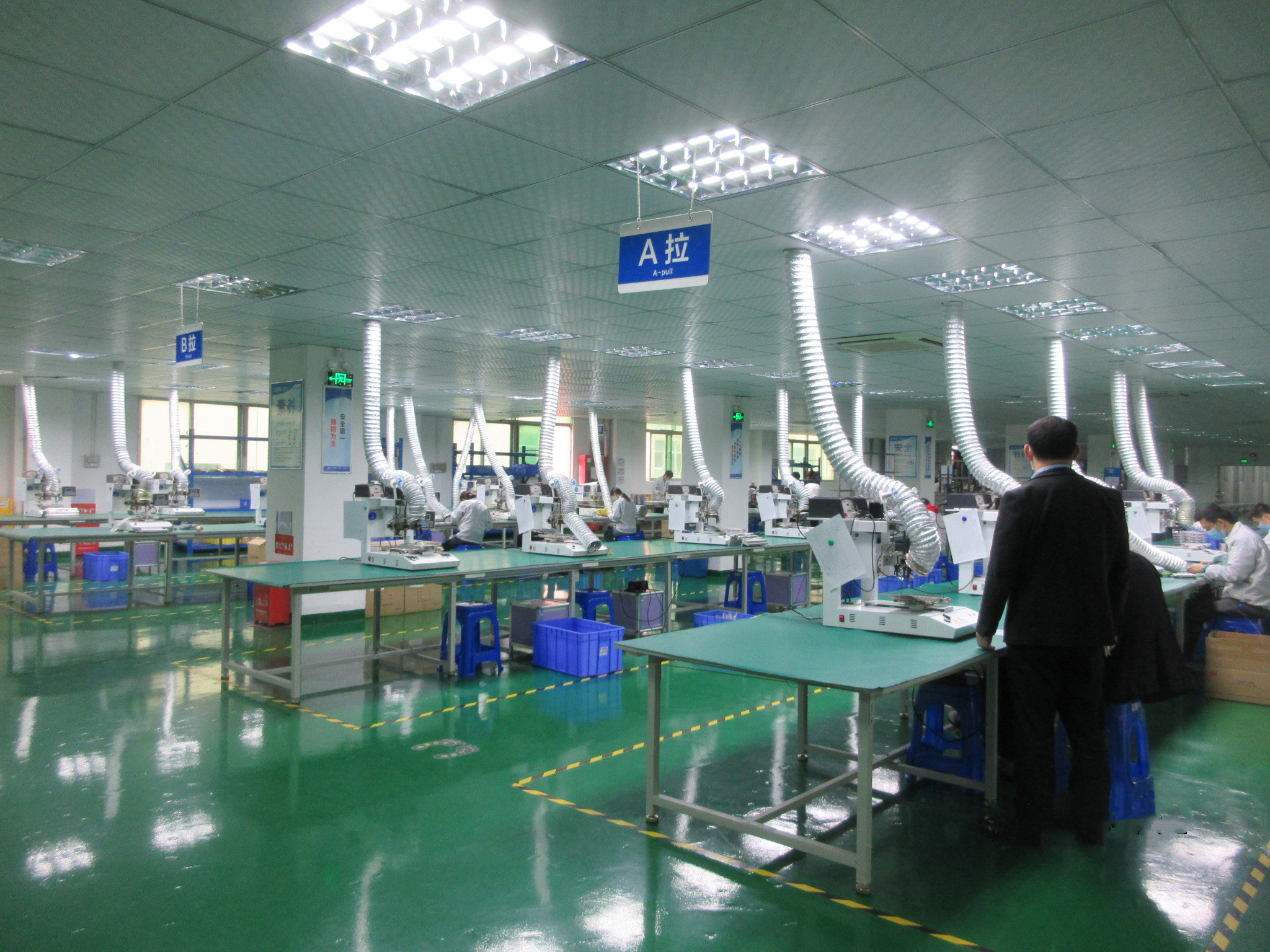

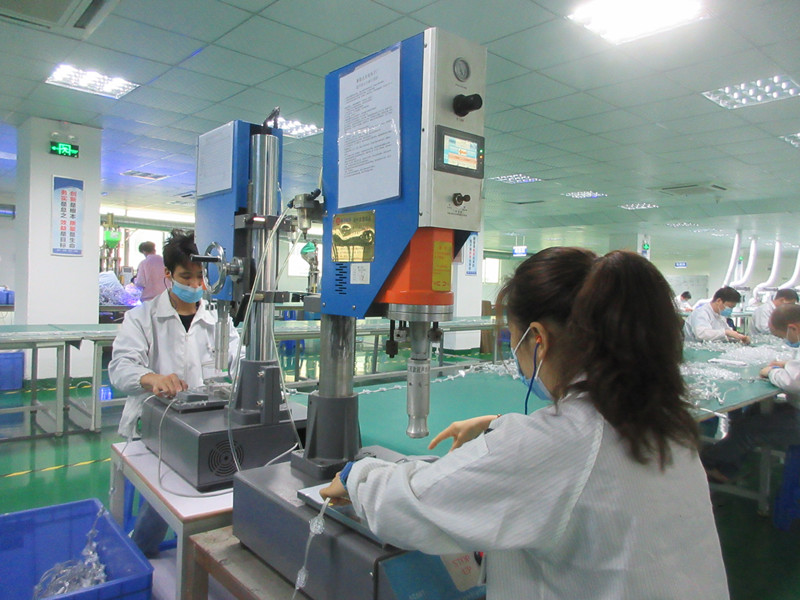

Manufacturing & Quality Control

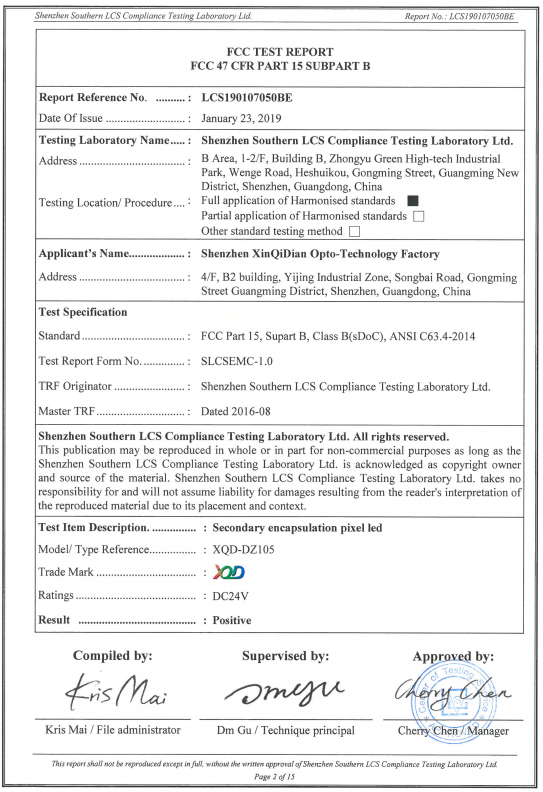

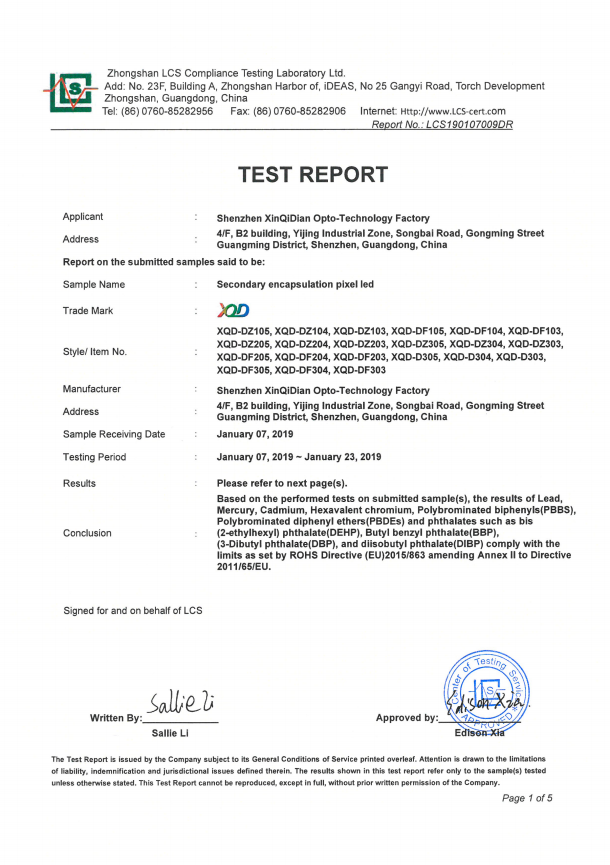

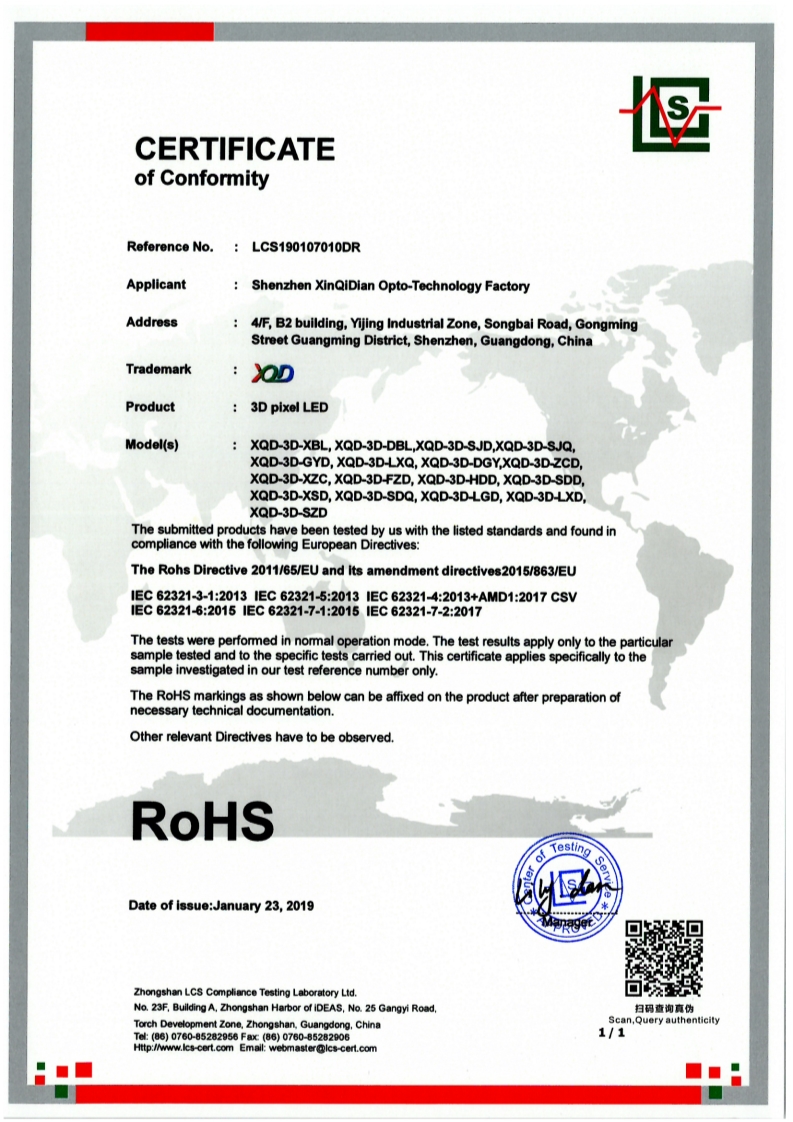

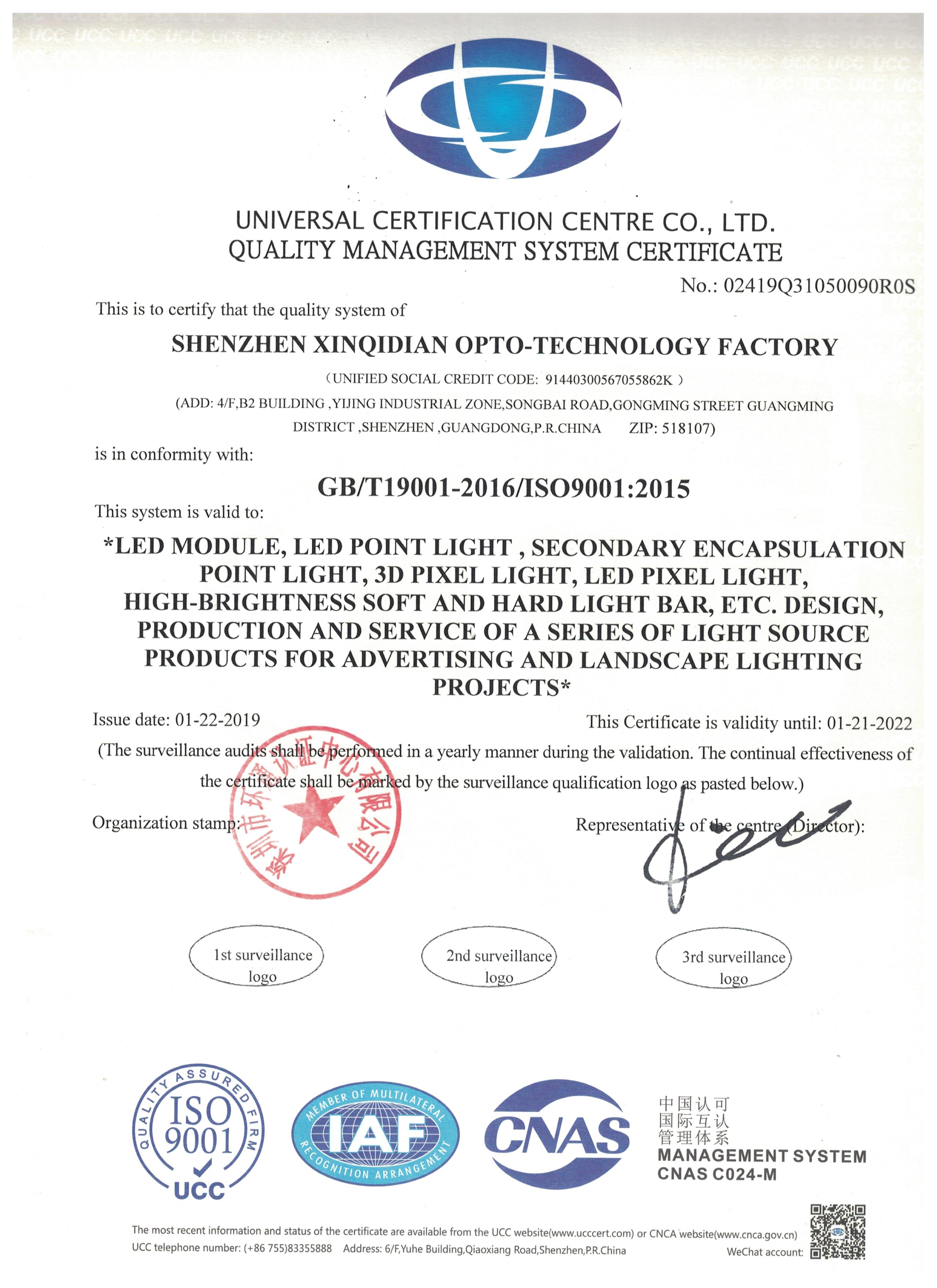

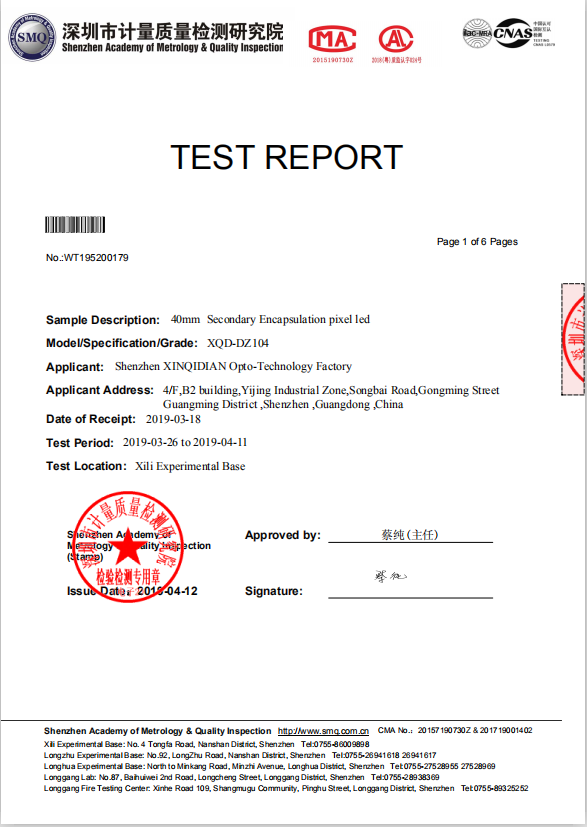

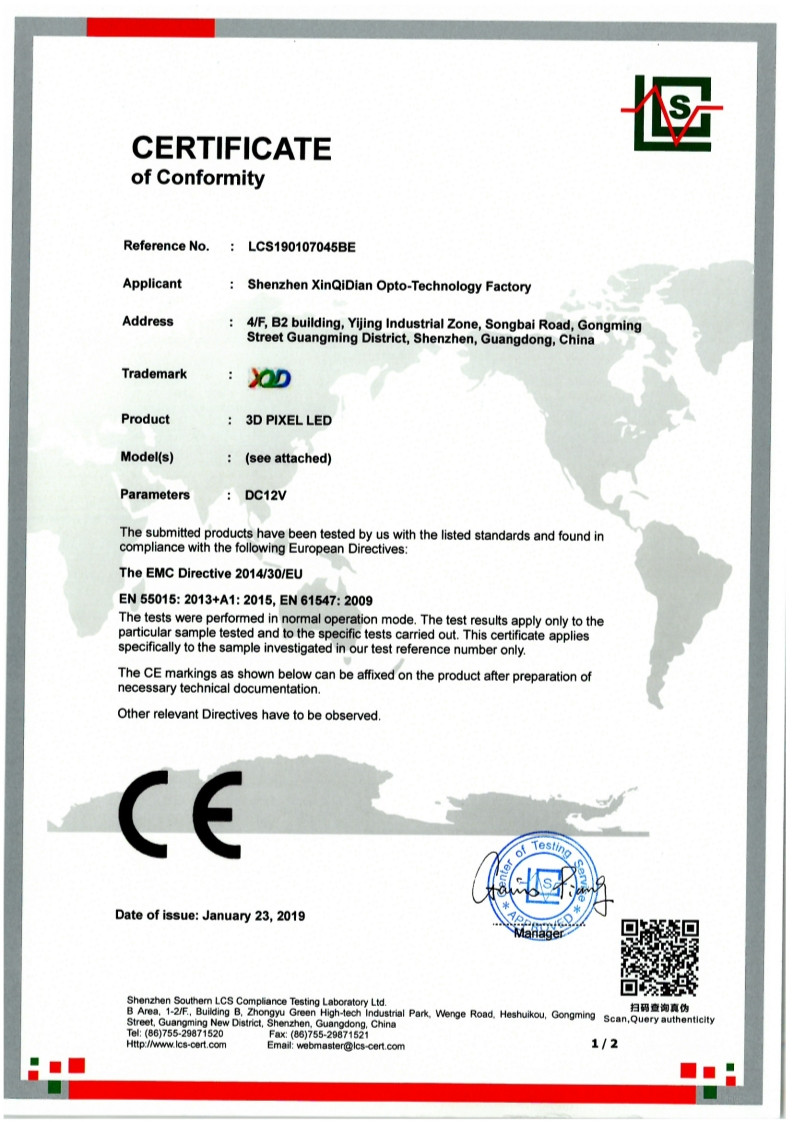

Product Certifications
Frequently Asked Questions
Is the XQD-DZ104 suitable for outdoor permanent installation?
Yes, it features an IP68 waterproof rating, level 4 UV resistance, and anti-salt fog properties, making it ideal for harsh outdoor environments.
What control protocols does this lighting product support?
The product is designed to work with the industry-standard DMX512 control system, allowing for complex animations and video effects.
How many units can be connected in a single serial string?
You can connect a maximum of 100 pieces per string, ensuring efficient power management and signal integrity.
What is the expected lifespan of these LED nodes?
The high-quality SMD5050 LEDs used in this product have a life expectancy of approximately 50,000 hours under normal operating conditions.
Does the product comply with international safety standards?
Yes, the product is fully certified with CE, FCC, and RoHS standards, ensuring both safety and environmental compliance.
Can these lights be used to create video displays?
Absolutely. Thanks to the RGB color support and DMX512 control, they are frequently used for large-scale advertising displays and urban media facades.
