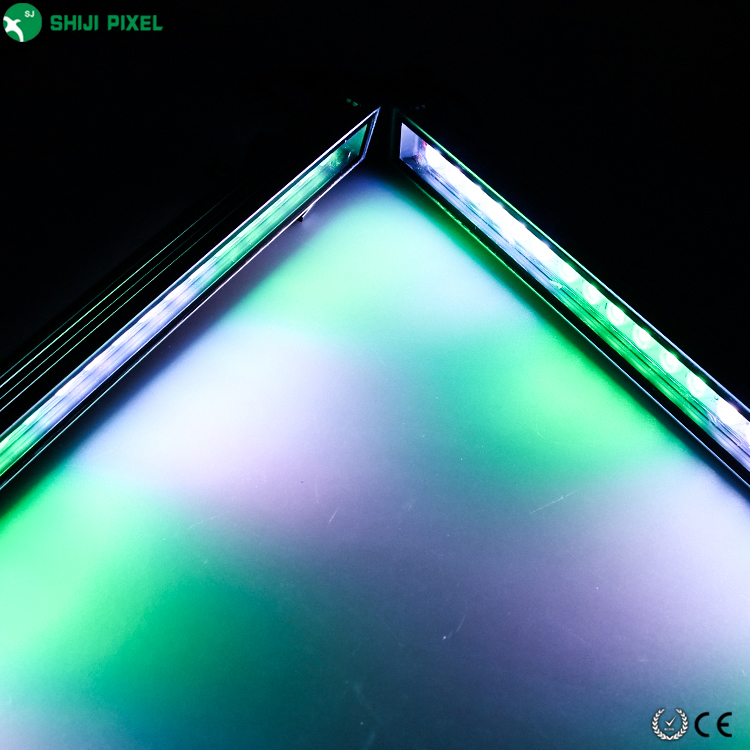

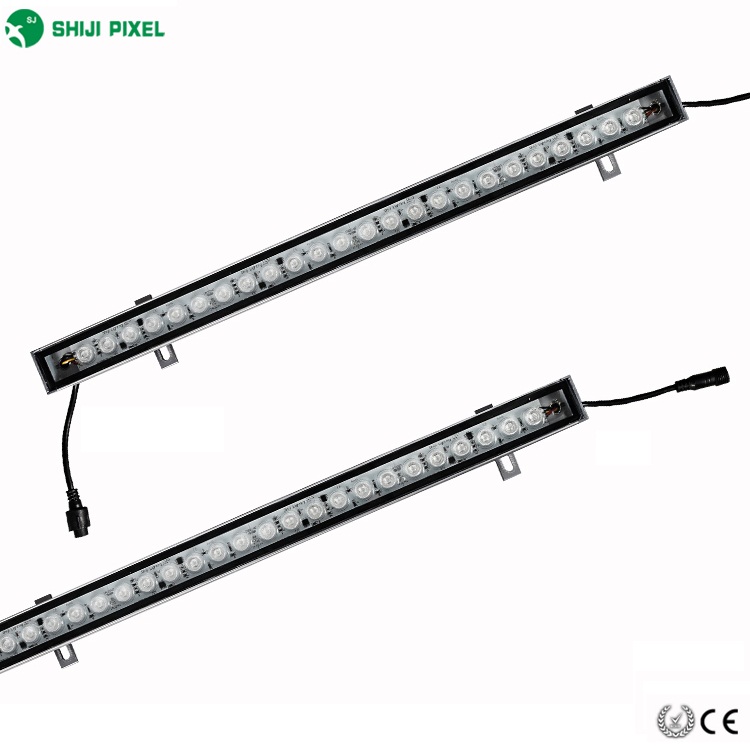

SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
1 / 5
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light
SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light

SHIJI Outdoor Facade Lighting LED Bar IP67 UCS2903 48 RGB 30W LED Wall Washer Light

Send Inquiry

Product Description

Product Description
LED wall washer, is mainly used for architectures decorative lighting for the purpose of sketching the buildings outlines.

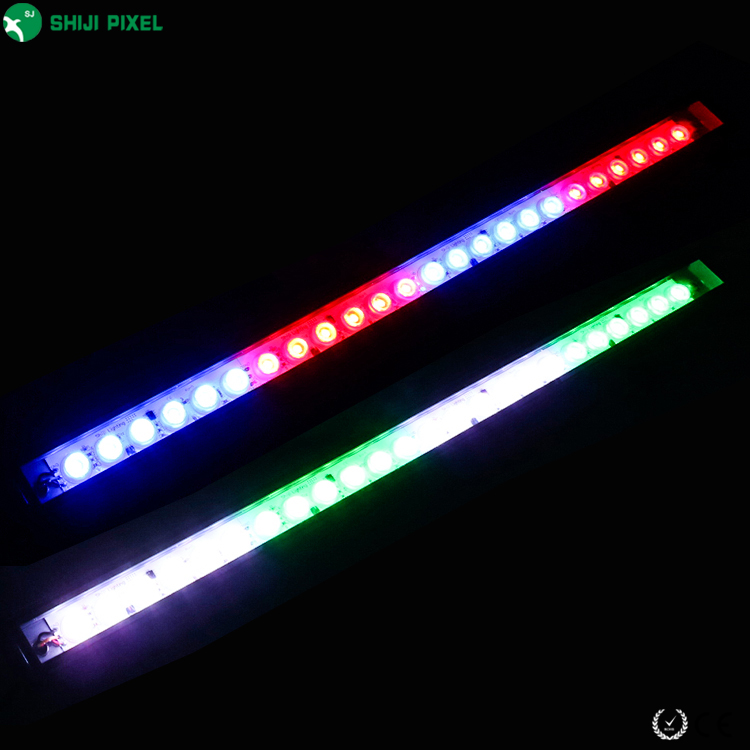

  • The Digital led bar is SPI protocol, UCS2903 IC chip included, support numerous color changing effects.
  • Aluminum case with 100% glue injection waterproof for outdoor using, with tempering glass cover.

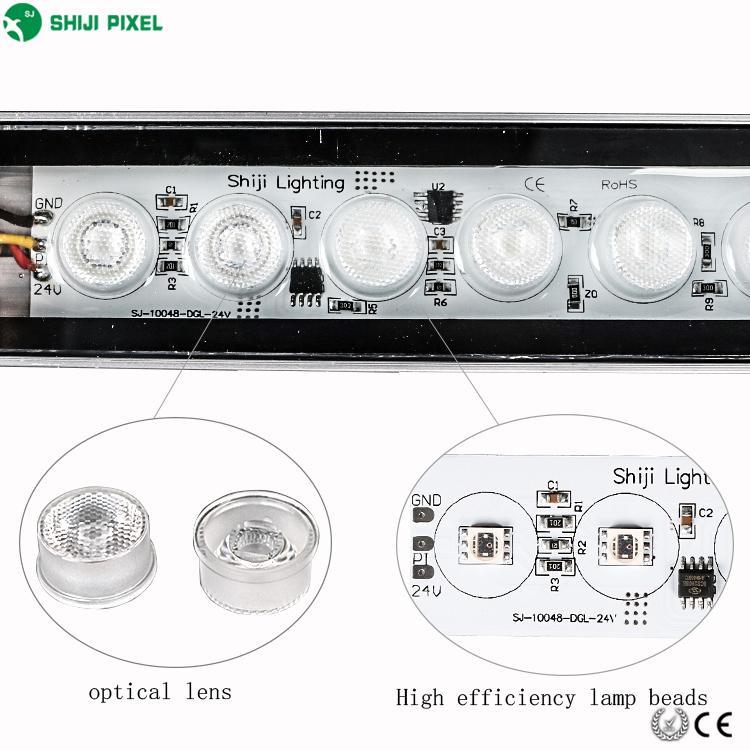

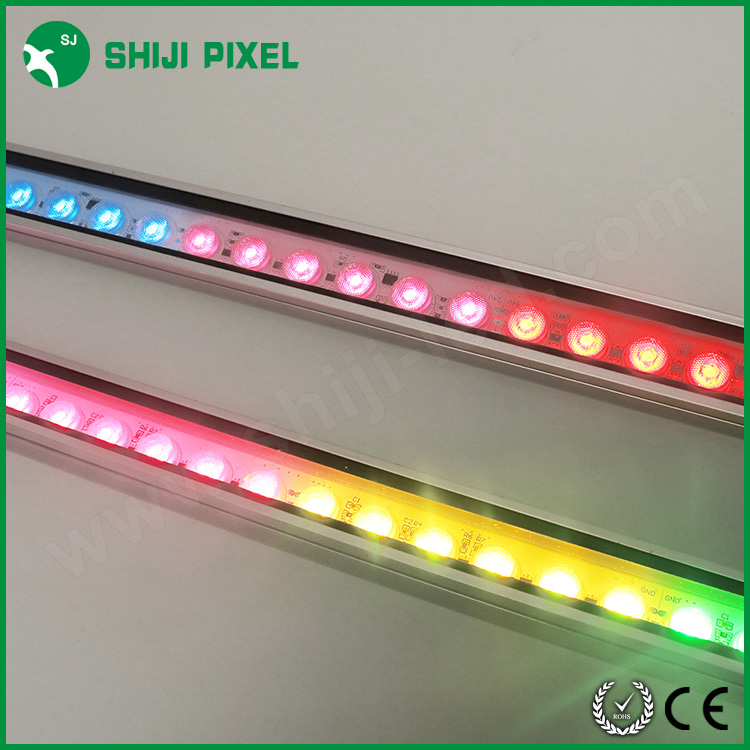

  • One meter has 48pcs good quality SMD 5050 RGB LED, each LED covered by an optic lens.
  • Projection angle can be adjusted by lens angle (30° / 60°/ 90°/ 120°).

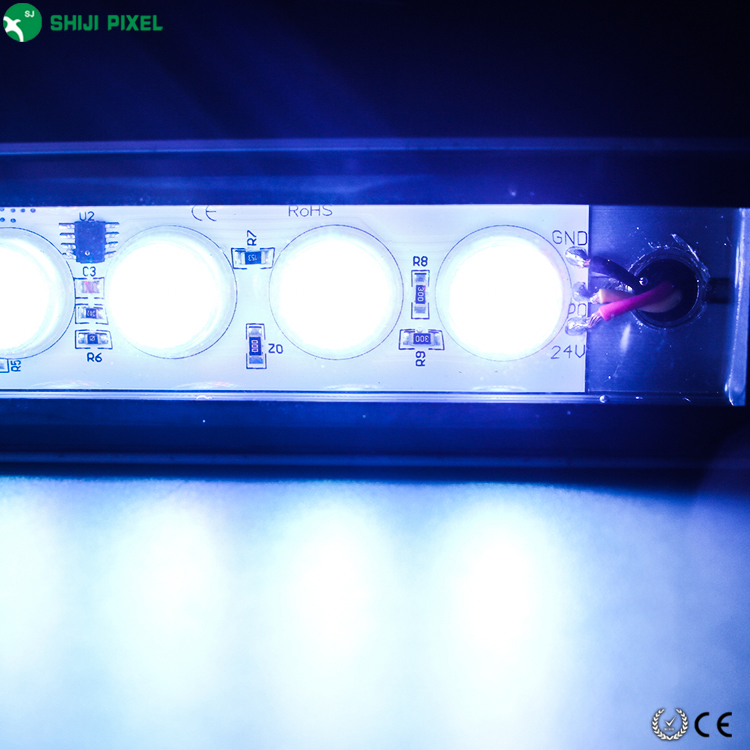

  • Rigid PCB, 48 leds/m, 8pixels/m, RGB 3 channel, one meter has 24 channels.

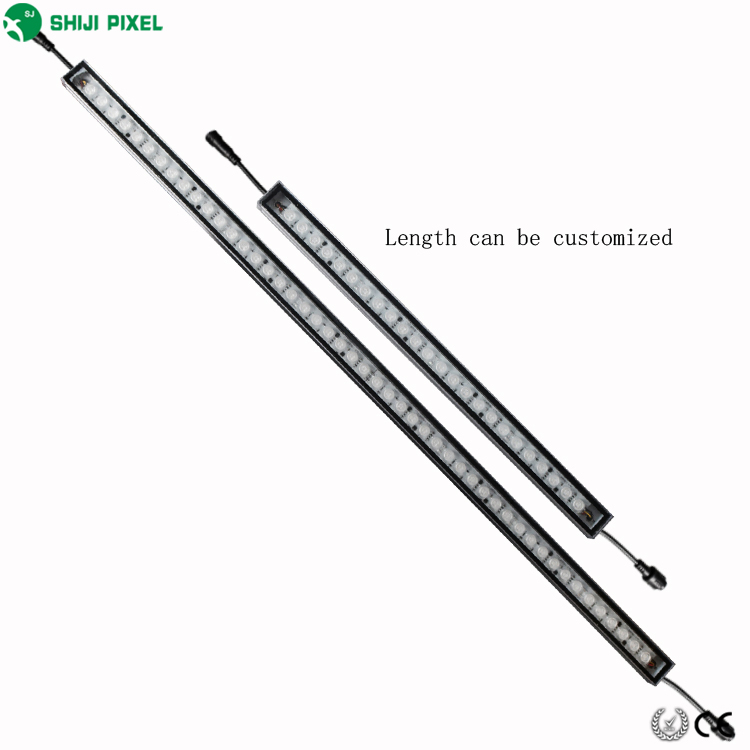

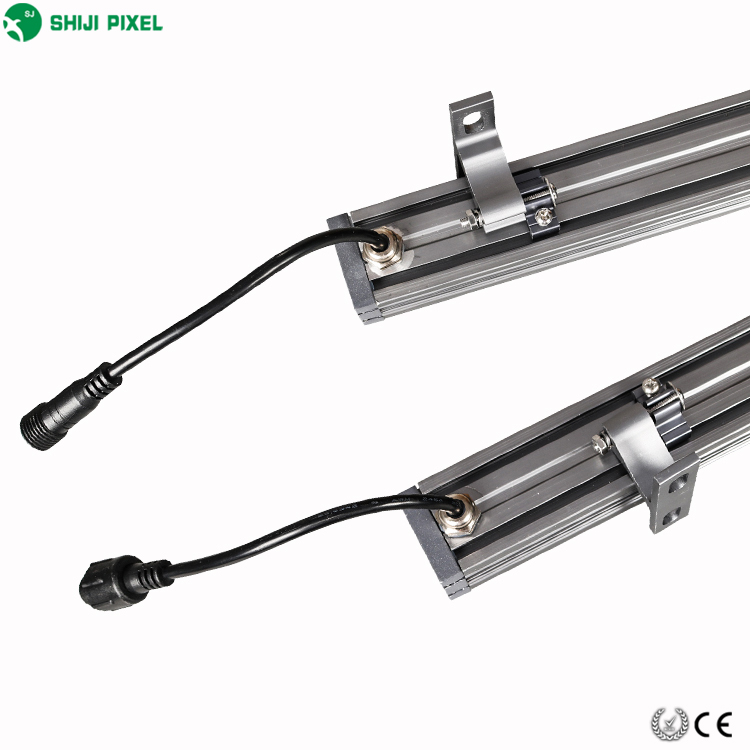

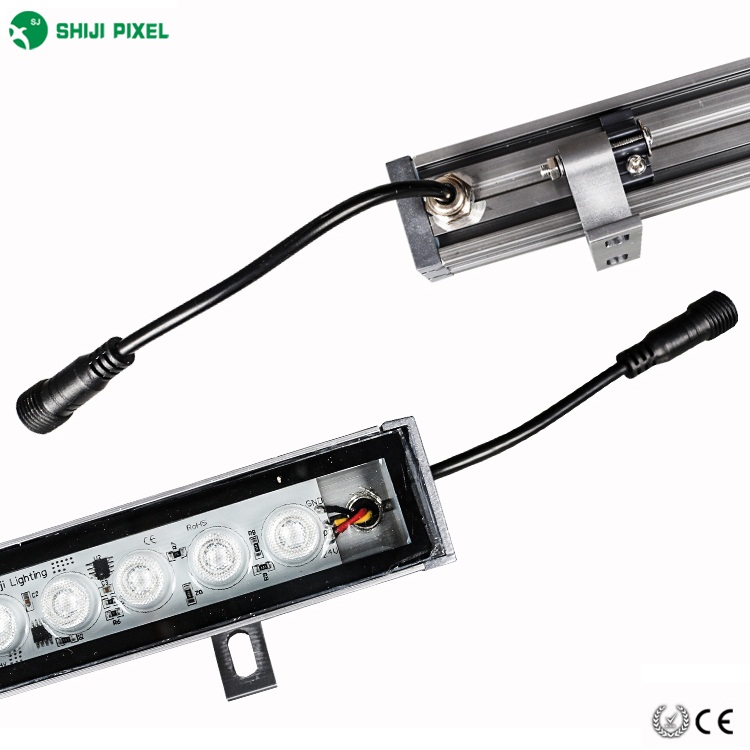

  • 3pin high quality waterproof connectors on both ends of the bars, 15cm wire length (customizable).

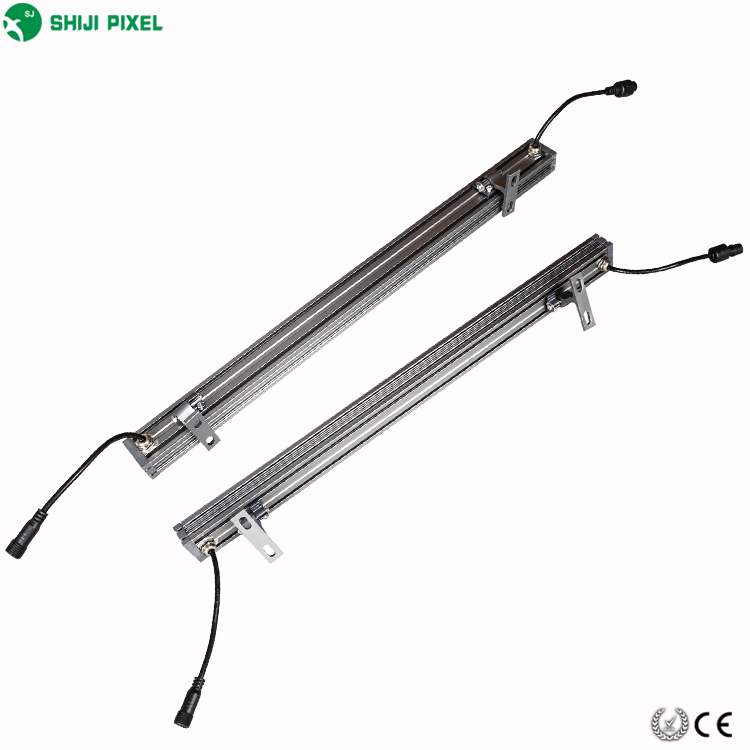

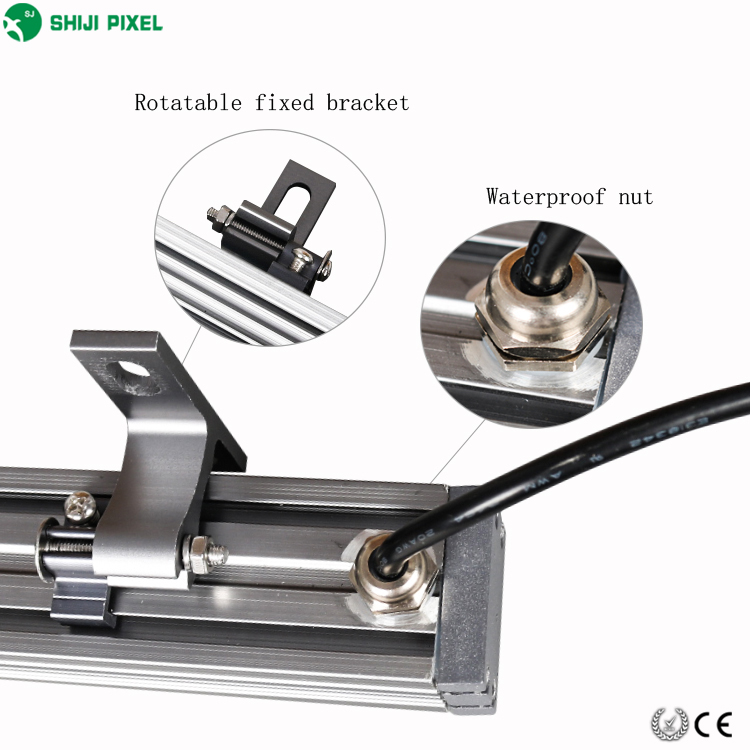

  • Aluminum case color: Grey. Includes 2pcs moveable aluminum brackets for installation.
  • Low voltage DC24V input (do not exceed 25V).
  • Power feeding recommended every 4M bar.

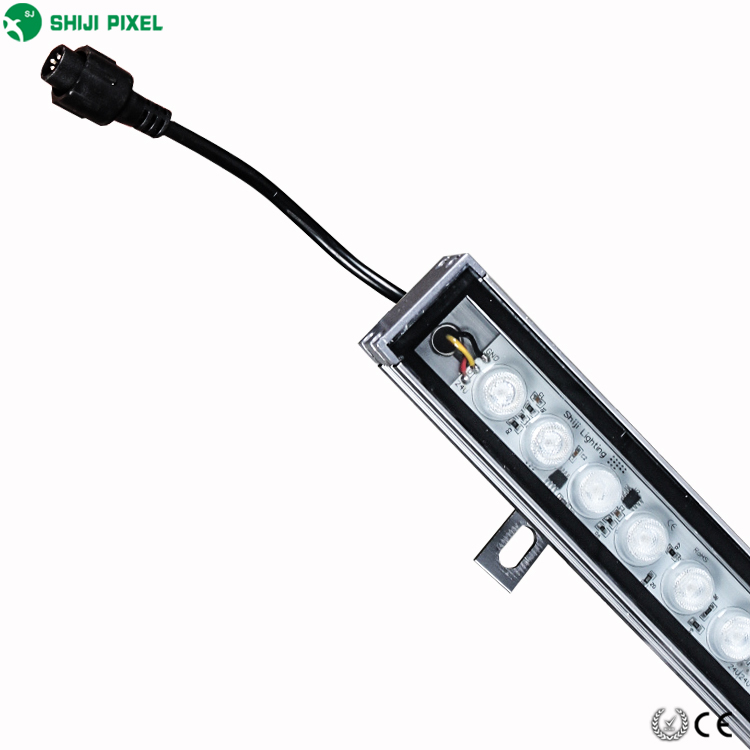

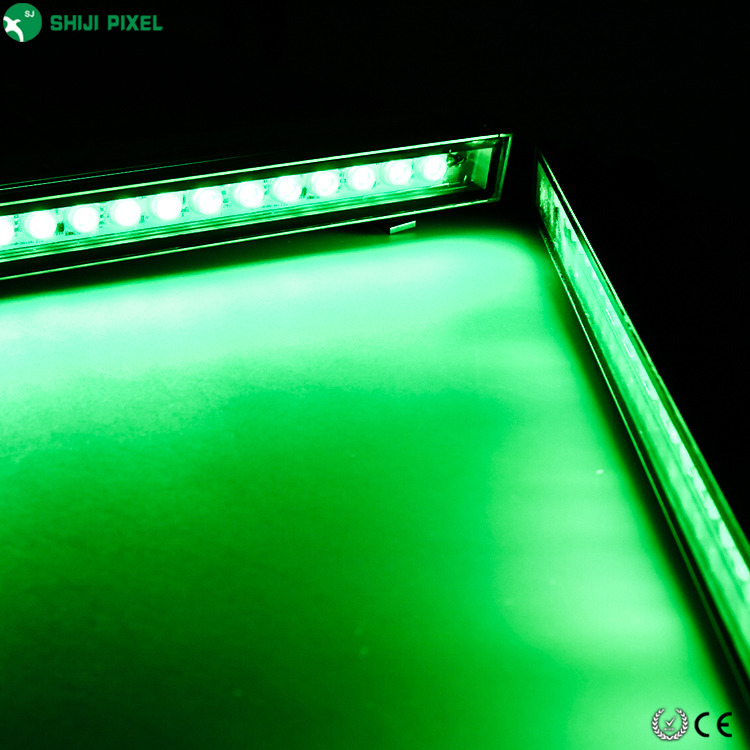

LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
LED Bar IP67
Product Parameters
Parameter Specifications
Part NOSJ-10048-DGL-24V-N
Lighting Source48PCS 5050 RGBW LED
Beam Angle30/60/90/120 degree
Operate VoltageDC24V
Consumption Watt/M30 Watt / 24W (max) /M
LED Quantity/M48pcs LED/M
Pixels /M8 pixels/M
Control ICSPI UCS2903
Bar Size1000*37*25 mm (L*W*H)
Waterproof GradeIP67
Working Temp-20℃ to 60℃
Storage Temp-30℃ to 80℃
Related Products
SJ-10048-DGL-24V

SJ-10048-DGL-24V

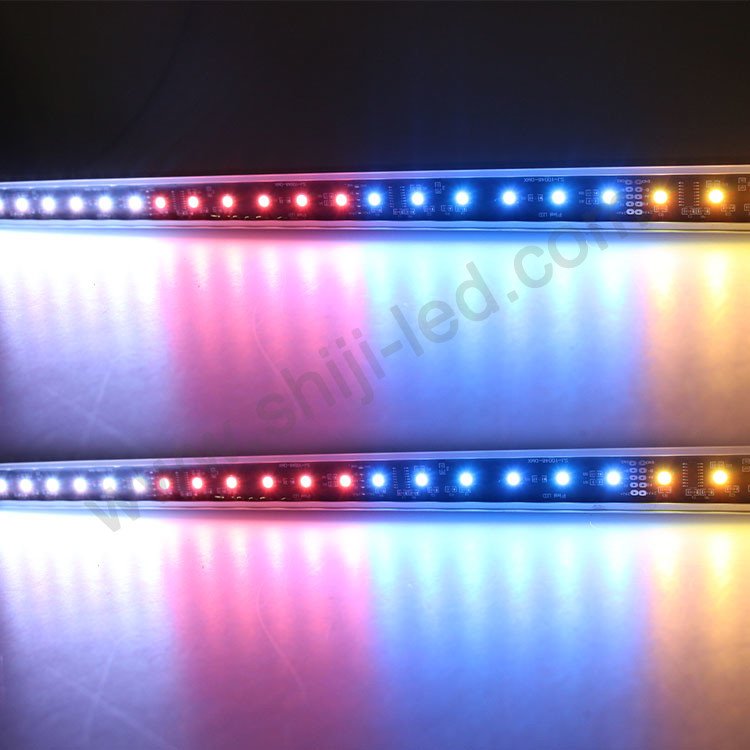

SJ-A10048-DMX

SJ-A10048-DMX

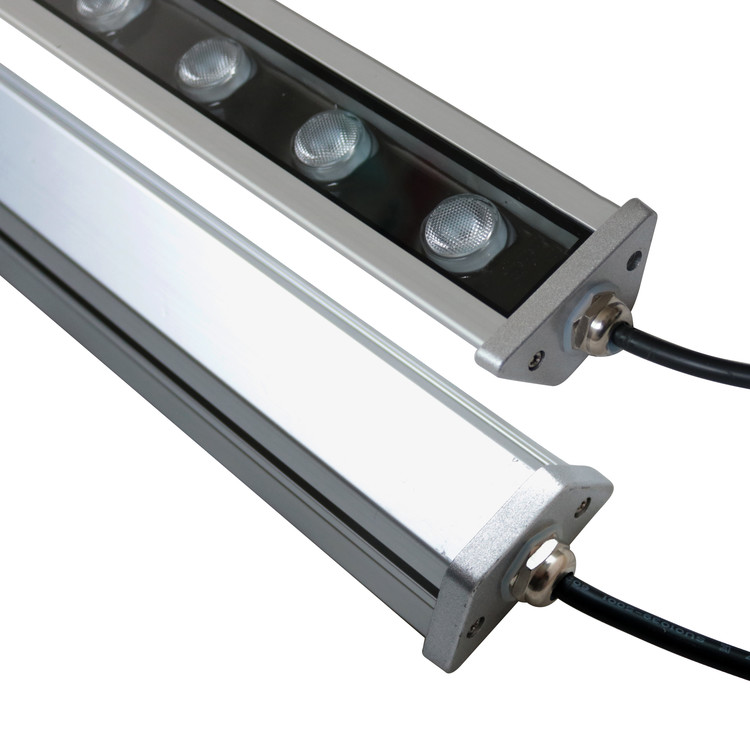

SJ-10018-54W

SJ-10018-54W

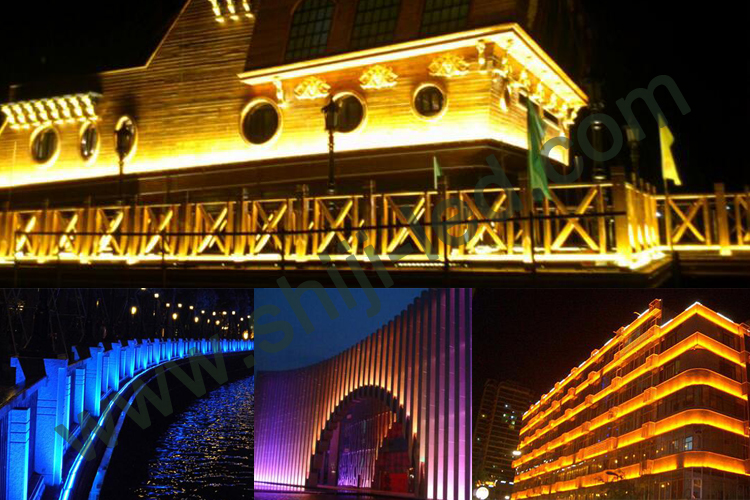

Application

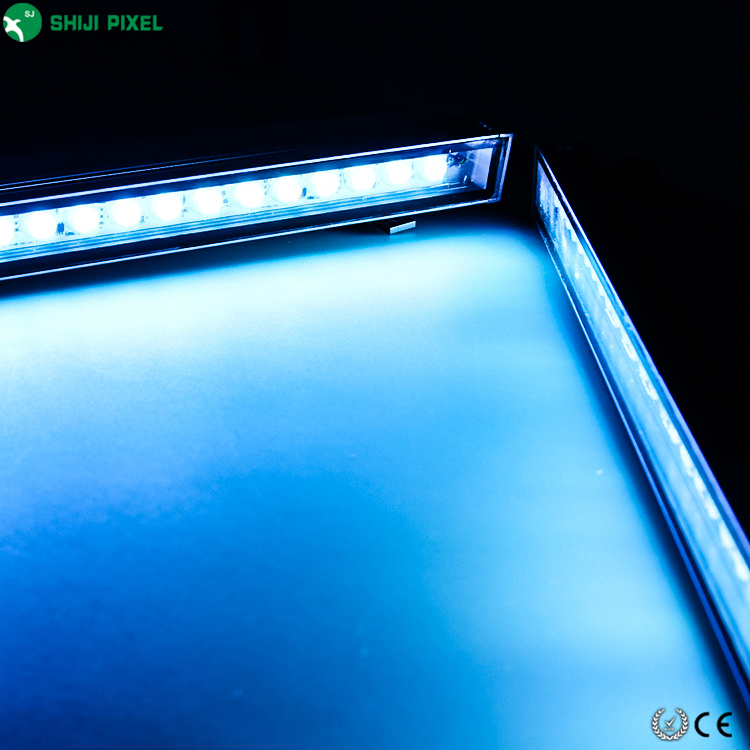

Mainly used for architecture decorative lighting for sketching building outlines and facade lighting.

LED Application
Packaging & Shipping
Packaging Details:
1 meter/pc, 10pcs/Carton
Weight: 20KGS/Carton
Carton Size: 115cm x 23cm x 23cm
Shipment Info:
1. Goods delivered within 3-5 working days after payment.
2. Shipping via Door to Door express, air, or sea.
Shipping
Our Services
  • 24-hour rapid response to all inquiries.
  • Experienced staff providing professional support in fluent English.
  • Customized OEM & ODM design availability.
  • Exclusive solutions provided by professional engineers.
  • Warranty: 2 years quality assurance with full testing before shipment.

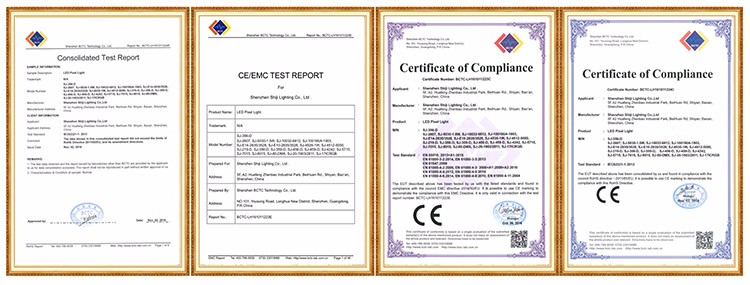

Certification
Frequently Asked Questions
What are the main product categories available?
Our best-selling ranges include LED Strip Lights (SMD5050, SMD2835, SMD3528), LED Bars, and LED Tube Lights designed for professional projects.
Can you provide customized OEM products?
Yes, OEM products are welcomed. We can customize sizes, layouts, logos, and labels. We strictly protect our customers' unique designs and intellectual property.
What is the typical lead time for orders?
Standard delivery time is usually 12-15 days. Customized products or heavy production periods may require additional time.
What quality of LEDs do you use?
For high-level products, we utilize Epistar LED chips. For mid-level types, we use San’an strips to ensure the best balance between quality and cost efficiency.
What are your main export markets?
The EU market accounts for 50-60% of our turnover due to high quality standards. We are also rapidly expanding in the American and Asian regions.
What is the warranty policy for your LED products?
We offer a 2 to 5-year warranty depending on the product type. If quality issues are certified during this period, we replace the failure parts and cover transportation costs.
