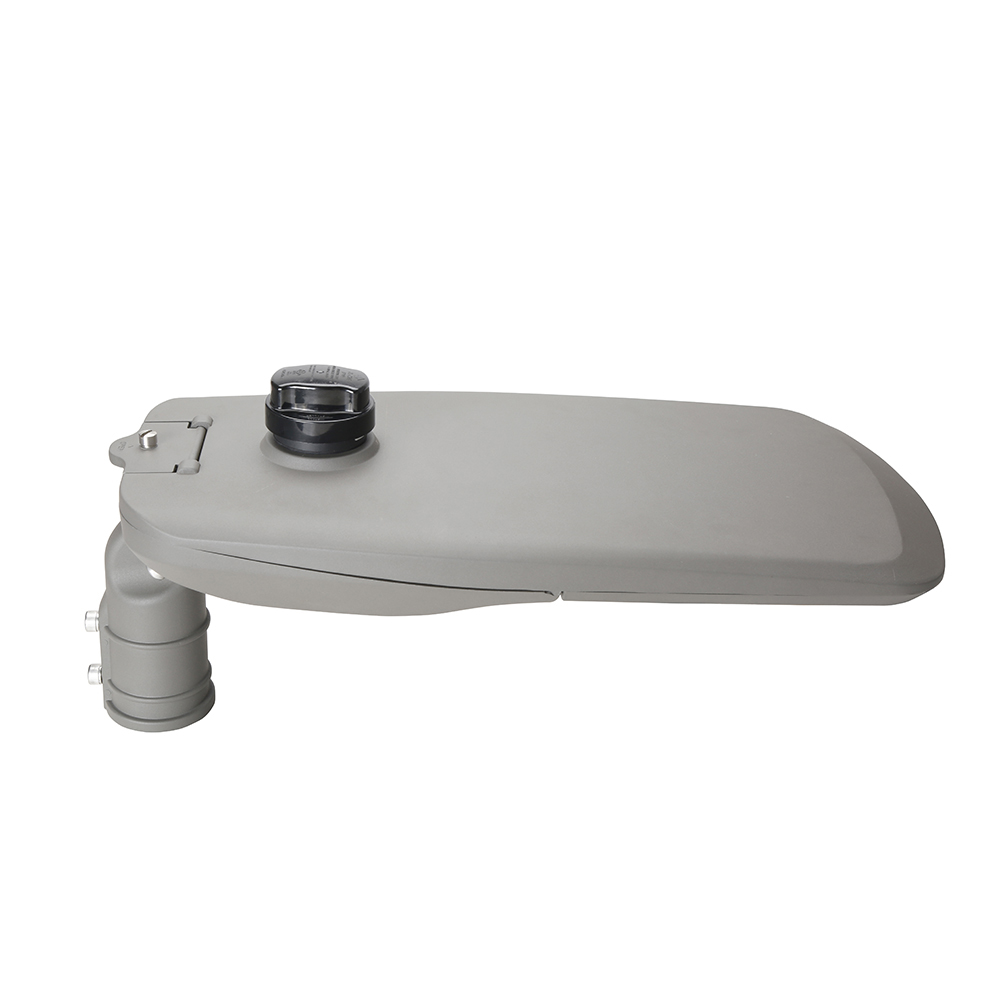

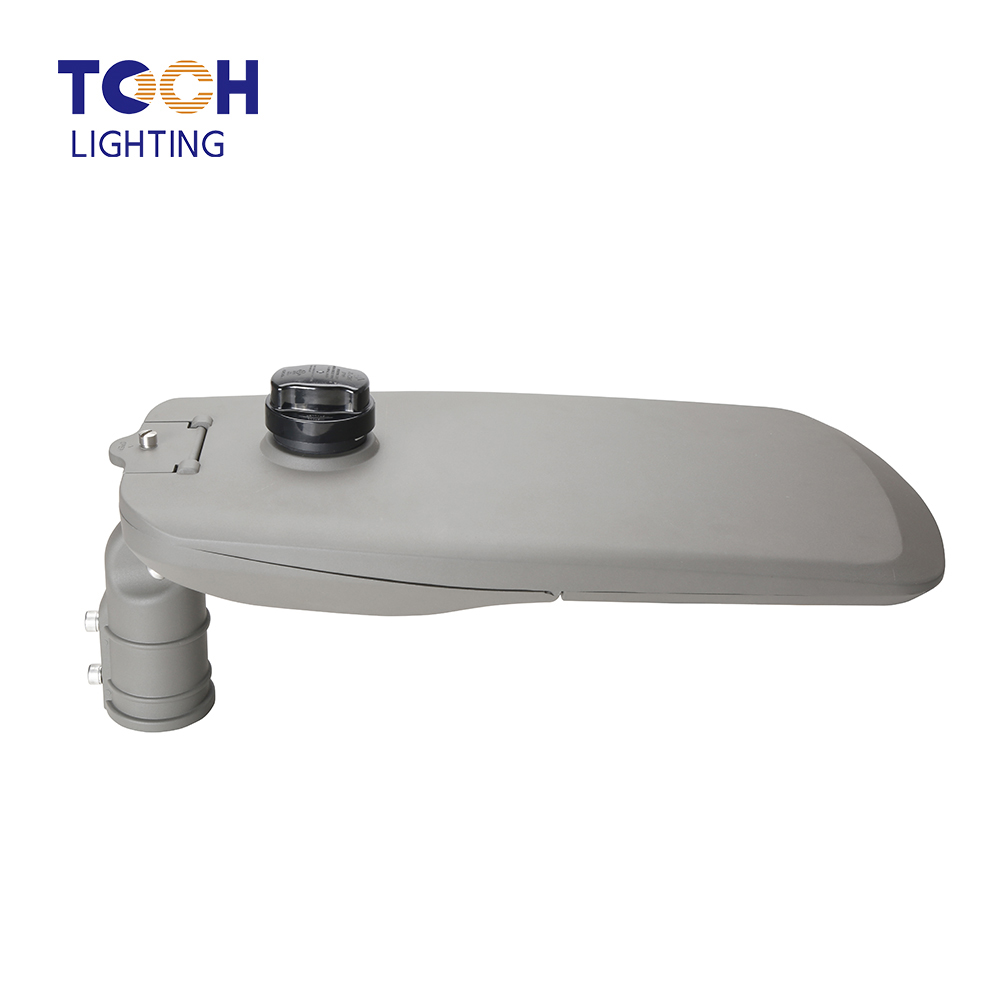

Product Features of LED Street Light
- High pressure die-cast aluminum alloy housing from 30W to 200W.
- Substantial friction resistant powder spraying process surface treatment.
- Adopt multi-chips package 5050 LEDs. Stable performance, flip chip technology, single unit’s damage won't affect others' normal work.
- Smooth back, self-cleaning design tempered glass cover.

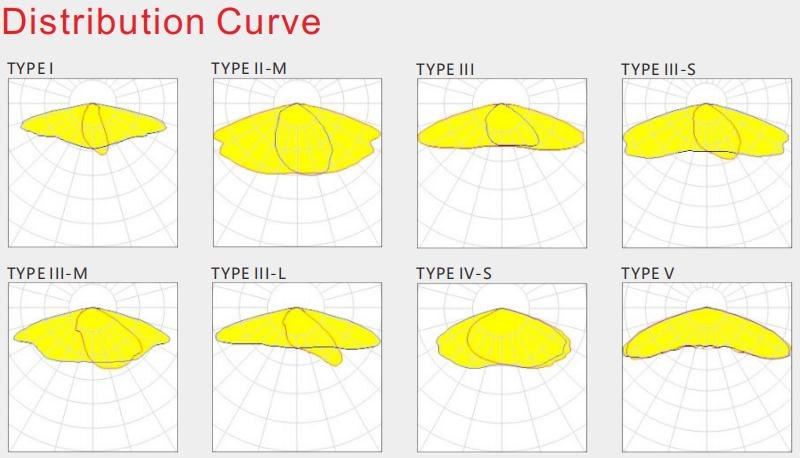

- Optical lens design. Type I, II-M, III, III-S, III-M, III-L, IV-S, V optional. Uniform lighting distribution apply to different lighting projects.
- Excellent operating temperature -40~50°C.
- -15~15° adjustable bracket applicable different mounting arm.
- With excellent housing design reach IP66/IK09 rating.
- Automatic cut-off design. 10KV/20KV SPD.
- Dimming and smart lighting system available upon request.
- Long service life over 50,000 hours, 5 years warranty.

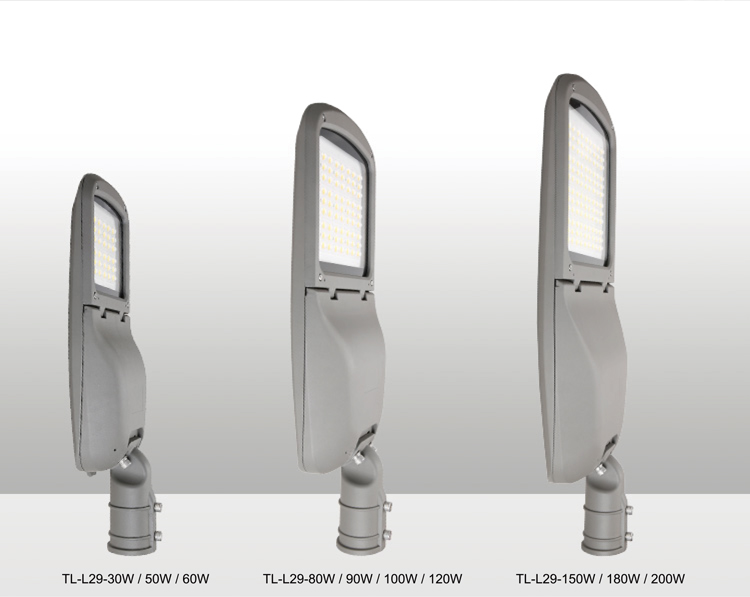

Specification of L29 LED Street Light
| Name |
Nominal Value |
| Type |
TL-L29-30W |
TL-L29-50W |
TL-L29-100W |
TL-L29-150W |
TL-L29-200W |
| Power |
30W |
50W |
100W |
150W |
200W |
| Luminous Efficiency |
150-170lm/w |
| CCT |
3000K/4000K/5000K/6000K |
| CRI |
>70 |
| Brand of Chips |
Lumileds 5050/3030 |
| LED Qty. |
24pcs |
36pcs |
72pcs |
90pcs |
120pcs |
| Beam Angle |
Type I, II-M, III, III-S, III-M, III-L, IV-S, V |
| IP Rate |
IP66 |
| Voltage |
AC 90-305V |
| Inclination Angle |
-10~10° |
| Working Environment |
-40℃~50℃, 20%~90% RH |
| Storage Temperature |
-40℃~85℃ 10%~90% RH |
| Driver Efficacy |
0.92 |
| PF |
>0.98 |
| Lifetime |
>50,000 Hours |
| Size of light pole |
¢60mm |
| SPD |
10KV/20KV |

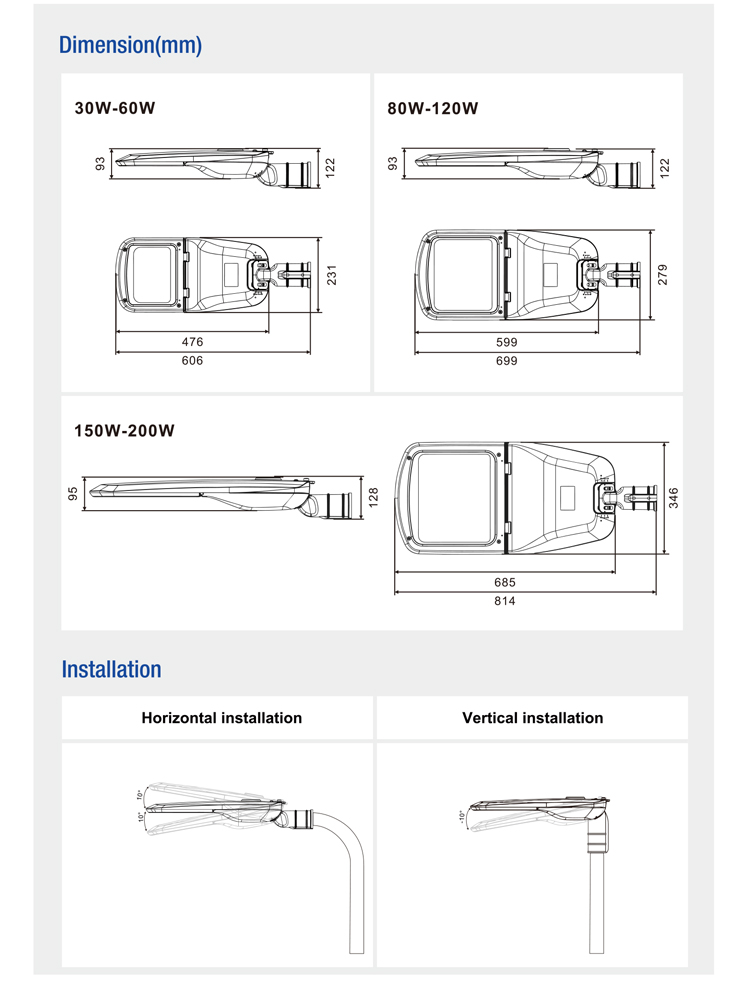

| Size of Lamp |
607x232x122mm |
607x232x122mm |
670x280x122mm |
814x346x122mm |
814x346x122mm |
| N.W. |
4.6KG |
4.6KG |
6.2KG |
8.9KG |
9.0KG |

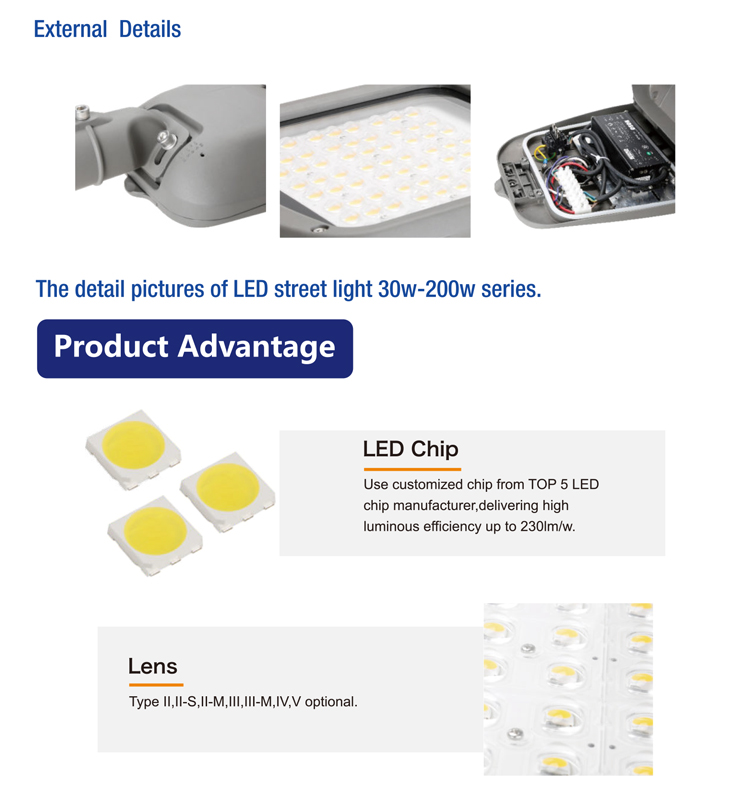

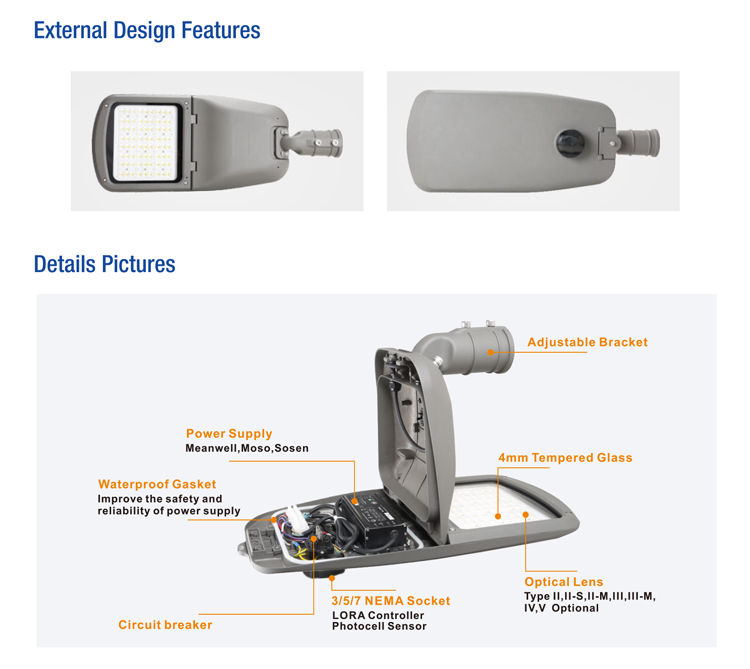

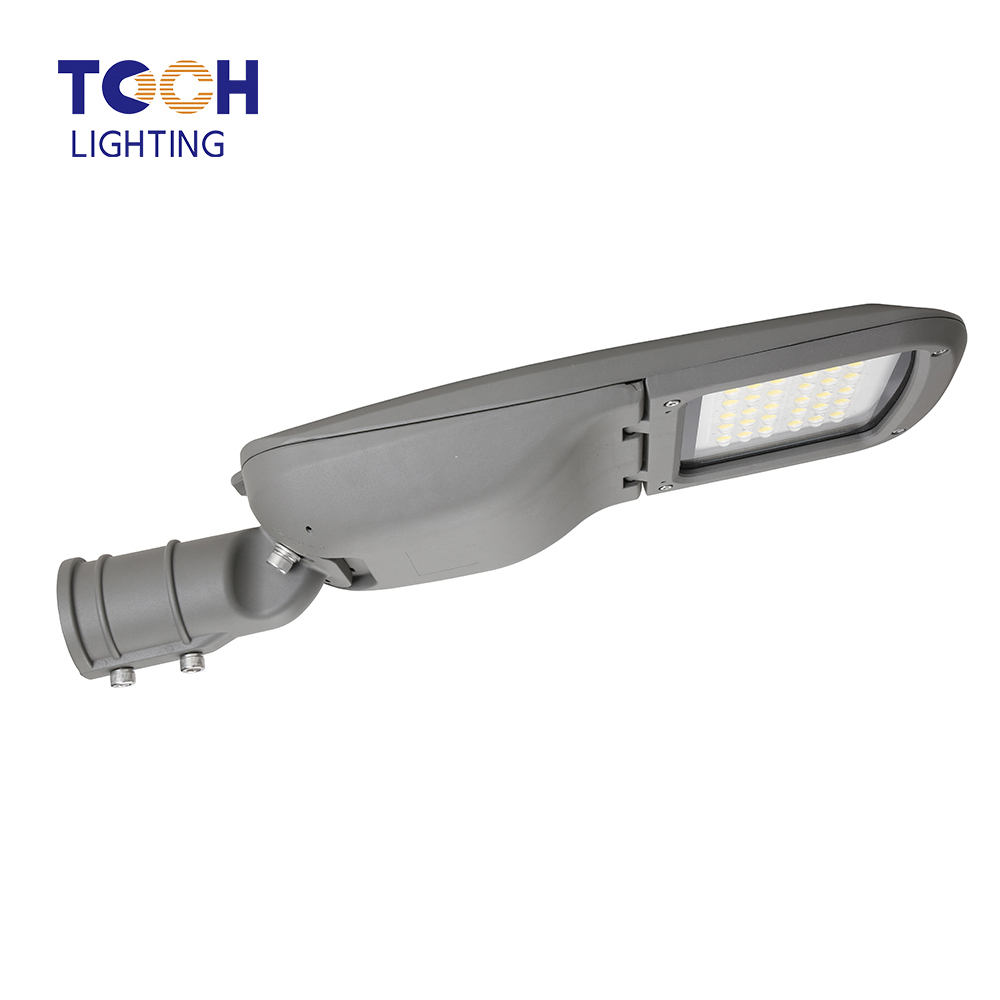

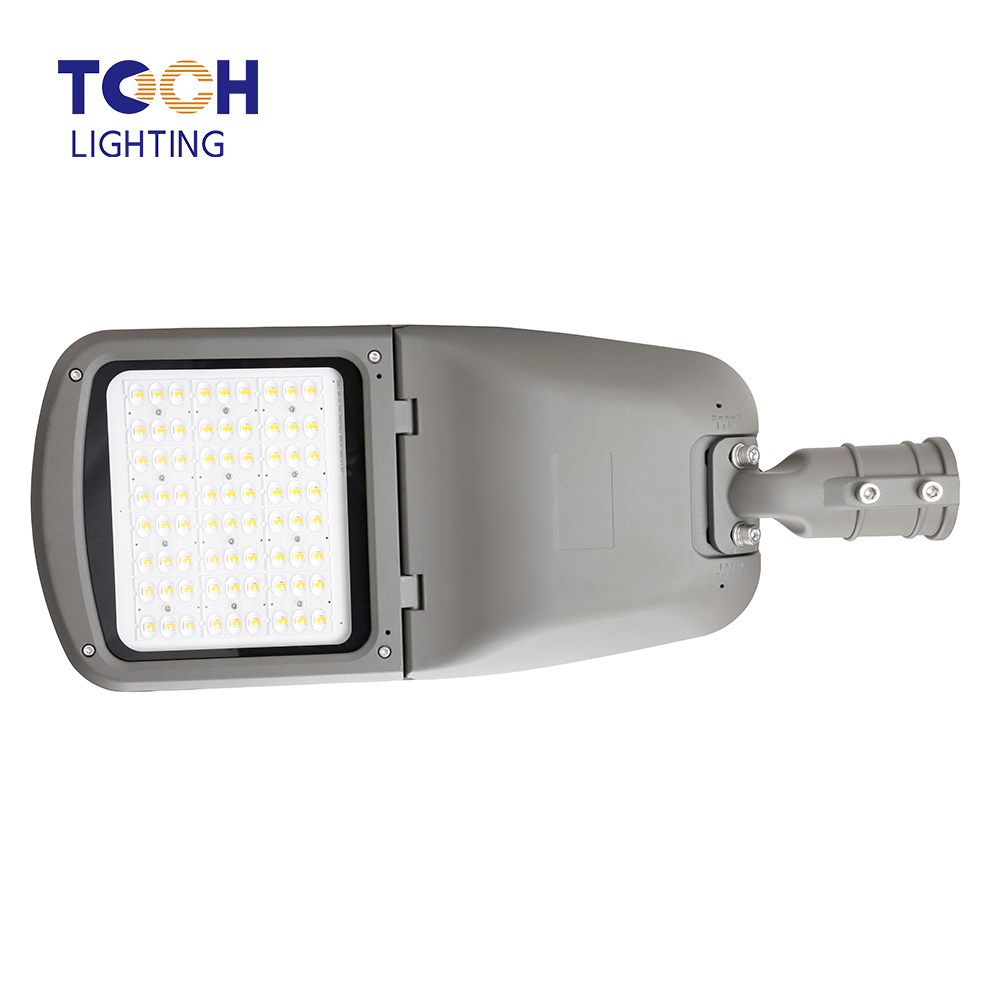

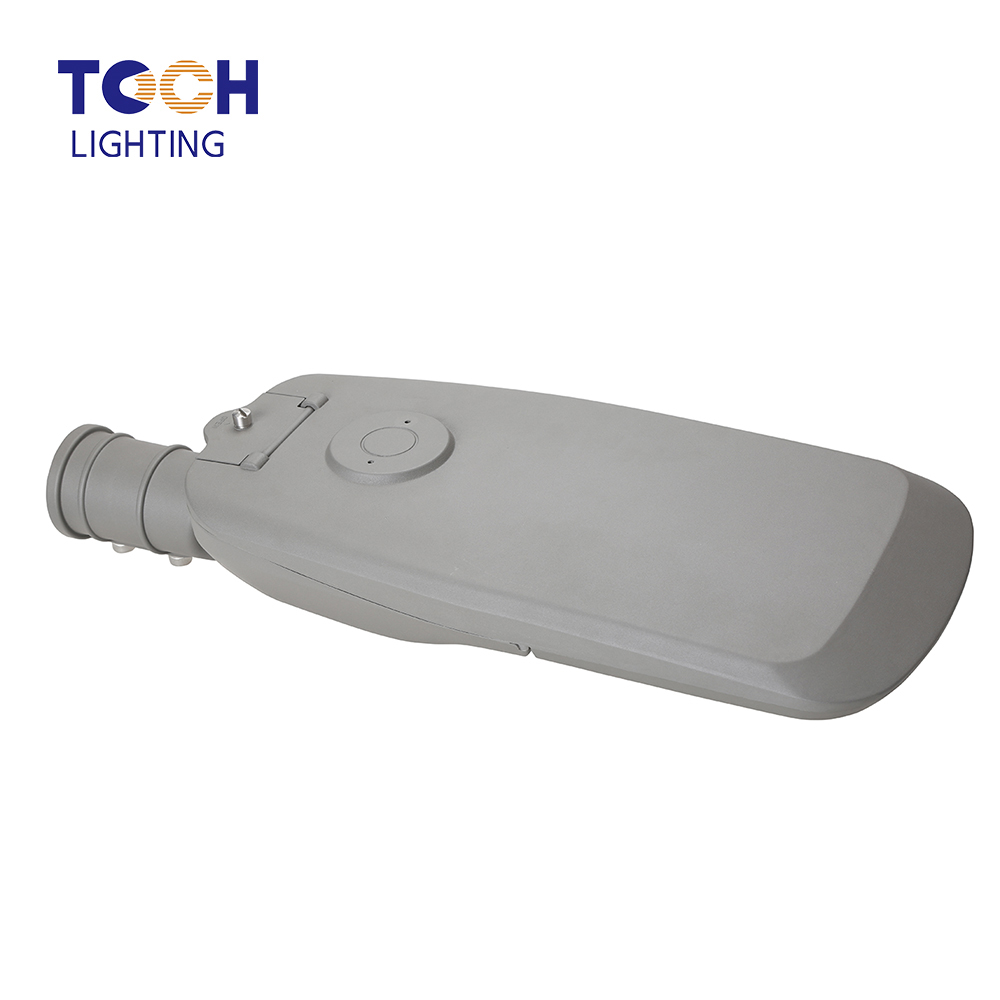

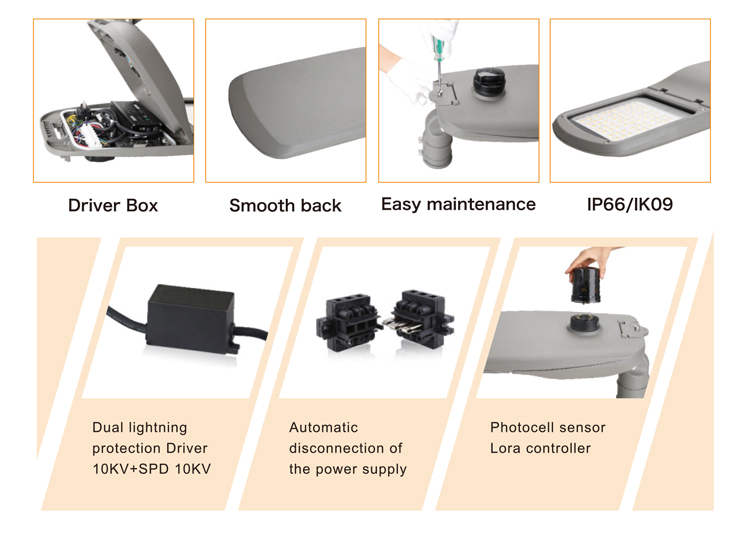

Detail Pictures of LED Street Light Series
Trading Conditions
- Payment term: 30% deposit by T/T or Western Union; 70% before delivery.
- Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
- Samples time: 5 days.
- Shipping terms: FOB Shenzhen.
- Discounts will be determined by quantity.
- Welcome distributors to cooperate together.

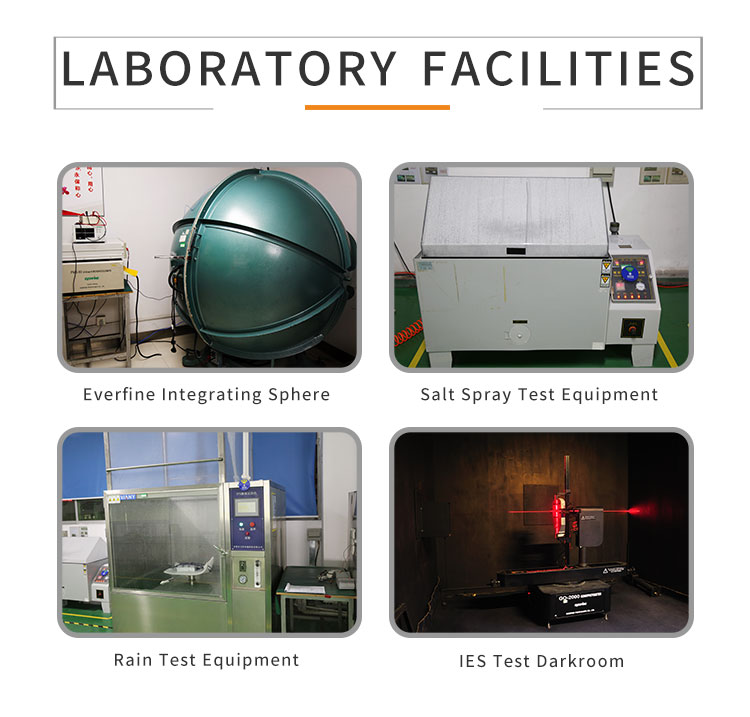

Quality Control
- Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

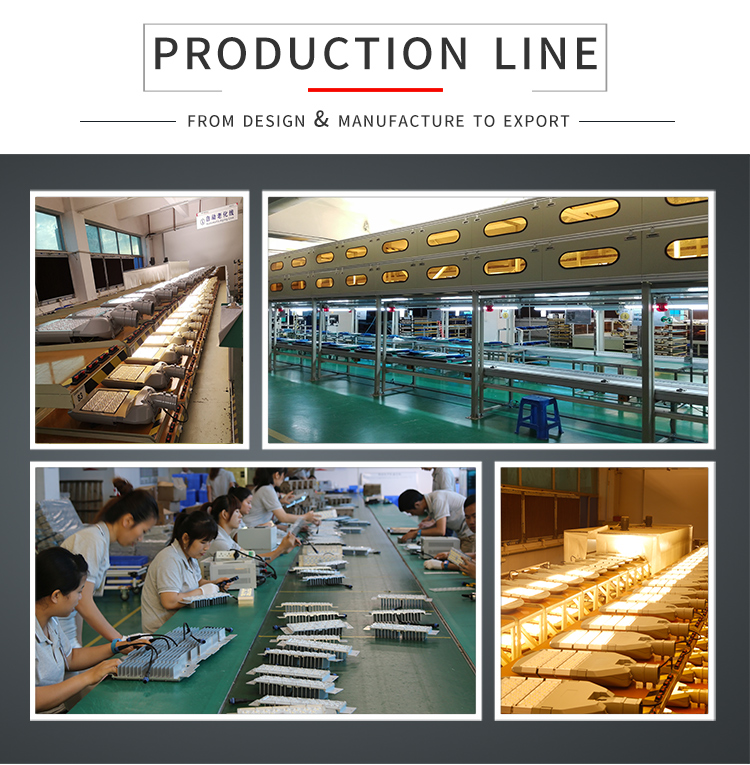

- We will be tracing the different phase of production from the beginning.
- Every LED lights quality checked & cleaned before packing.
- Before delivery clients could send one QC or point the third party to check the quality.
- We will try our best to help clients when problem occurred.
Warranty Terms
- 3/5 years warranty.
- Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents.
- If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, We will provide paid maintenance within warranty period.
Frequently Asked Questions
Q1. Can we make our own label on the sample lights?
Yes, we can use the label you offer, and we can also provide OEM & ODM services.
Q2. Our project is on the seaside. What if your lights get corroded by sea water?
The metal used has high corrosion resistance. Additionally, our advanced light surface treatment, electrostatic spraying, and electrophoresis processes effectively protect our lights from salt water corrosion.
Q3. I would like to try a sample first, is that possible?
Yes, absolutely. Our MOQ is only 1 piece, making it easy to test and evaluate the quality. We look forward to establishing long-term, win-win partnerships.

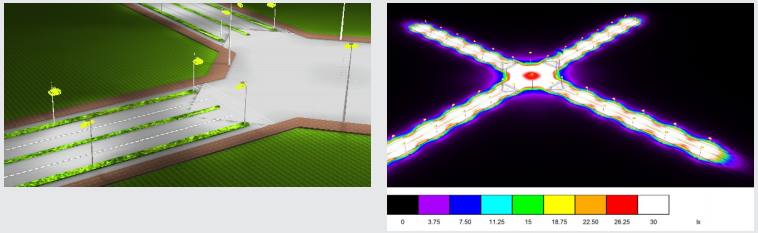

Q4. We have outdoor projects that require lighting design. Can you help us?
Yes, definitely. Our professional design teams can provide the best lighting solutions. If you prefer to design in-house, we can also supply the IES files for your convenience.
Q5. I have a street/highway project. What information do you need to provide suggestions?
To suggest the best solution, please provide the following details:
A. The width of the street.
B. The arrangement layout and height of the light poles.
C. The specific illumination and lighting requirements.
Q6. What certifications do these LED street lights carry?
Our street light products strictly follow international quality control standards and are tested and approved under ENEC, CB, ETL, CE, RoHS, LM79, and LM80 standards.
