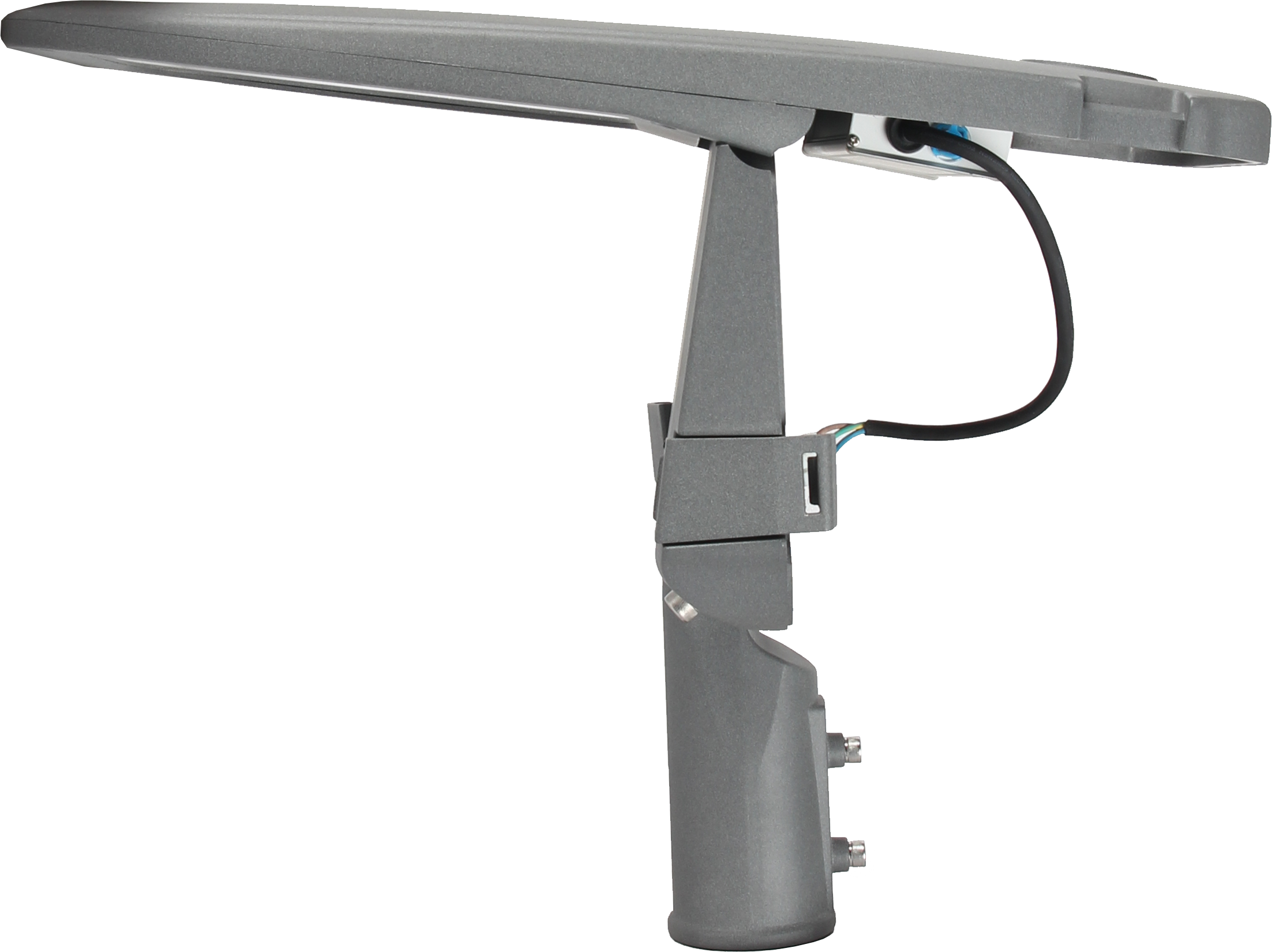

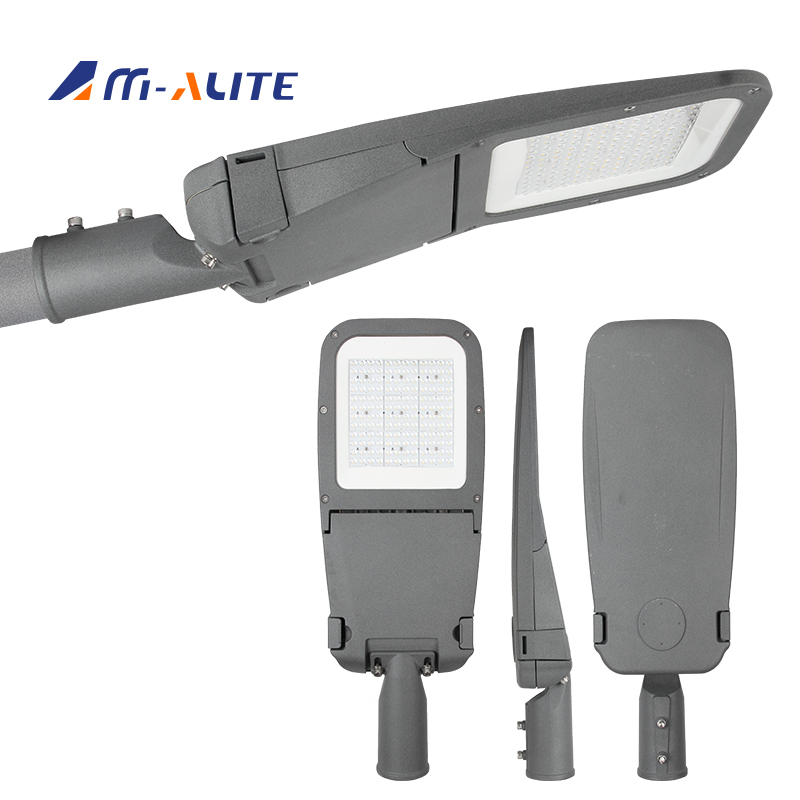

High Lumen Highway Outdoor Smart Streetlights IP66 Waterproof 40W 50W 80W 100W Led Light Street

1 / 5

High Lumen Highway Outdoor Smart Streetlights IP66 Waterproof 40W 50W 80W 100W Led Light Street

Send Inquiry

Product Description

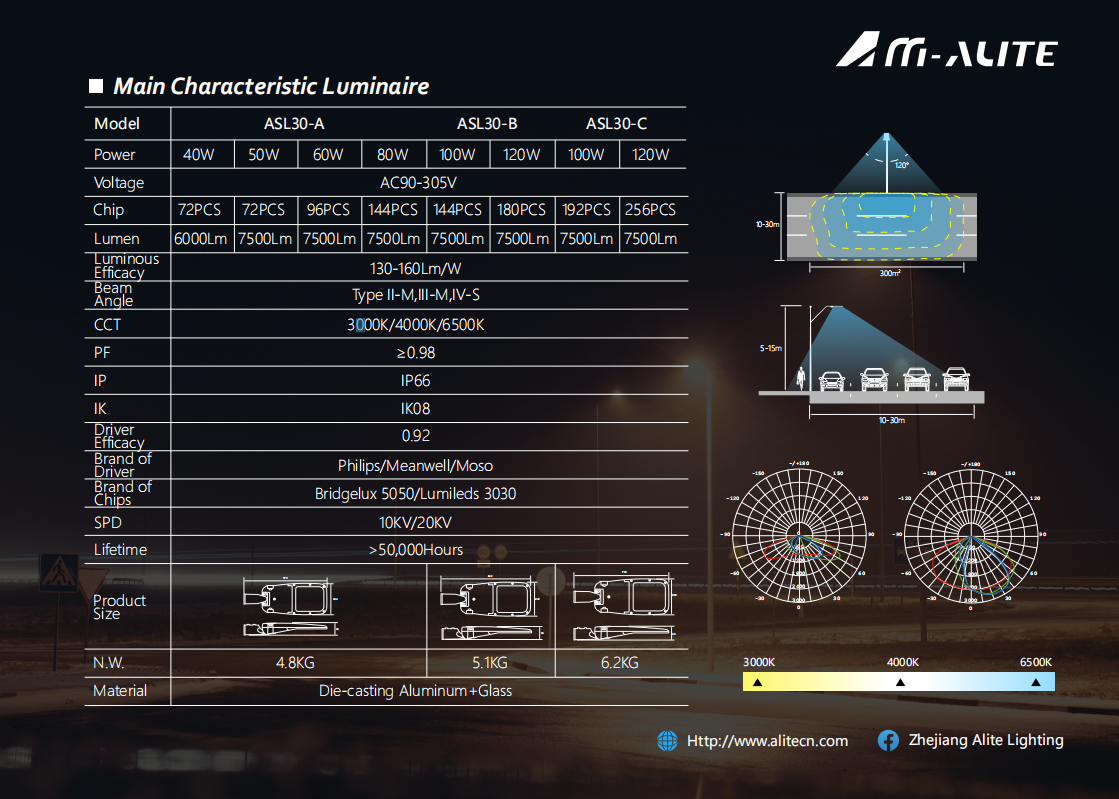

Specification

Model	ASL30-A				ASL30-B		ASL30-C
Power	40W	50W	60W	80W	100W	120W	150W	180W
Voltage	AC90-305V
Chip	72PCS	72PCS	96PCS	144PCS	144PCS	180PCS	192PCS	256PCS
Luminous Efficacy	130-160Lm/W
CCT	3000K/4000K/6500K
PF	≥0.98
IP	IP66
IK	IK08
Driver Efficacy	0.92

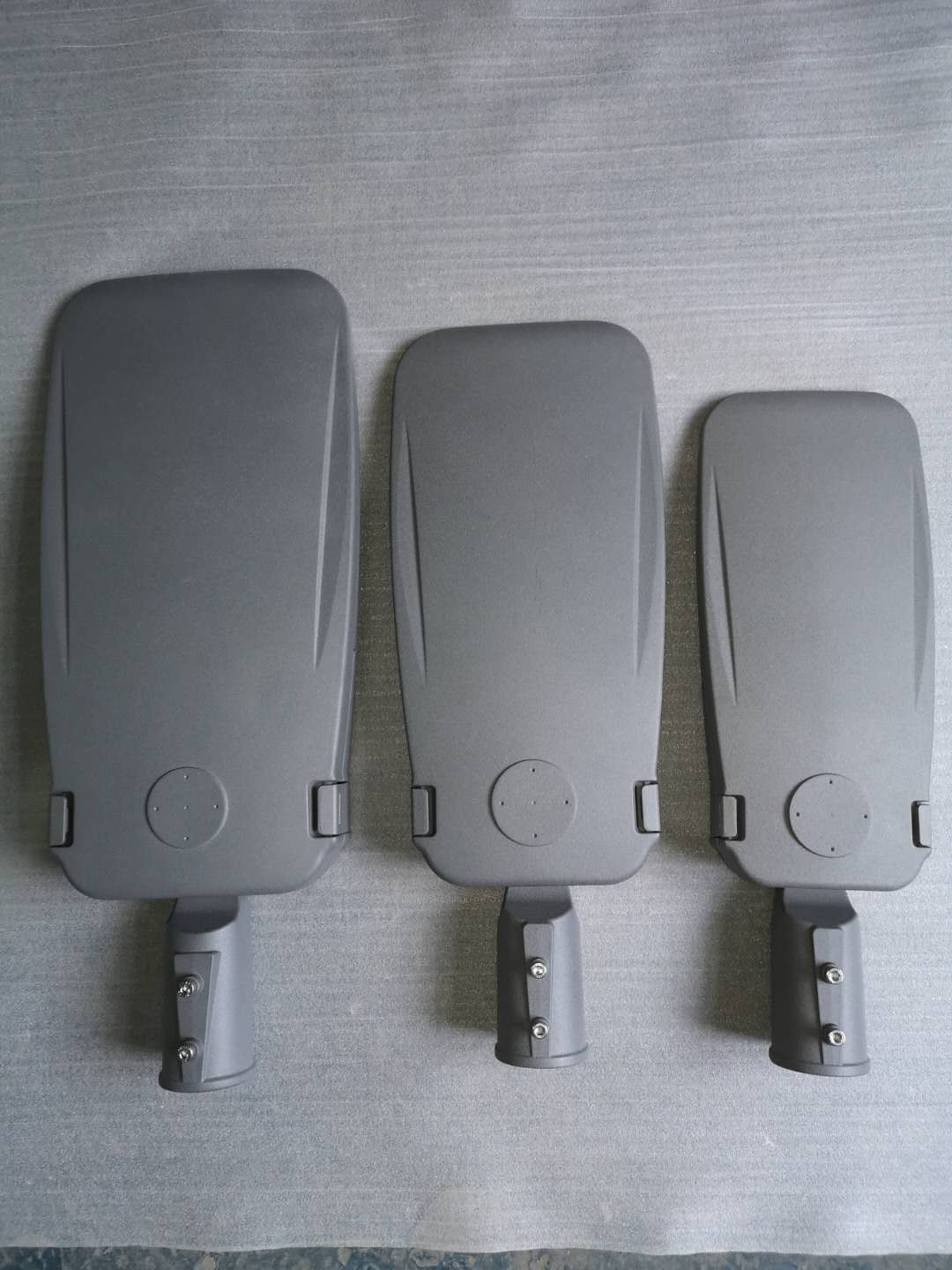

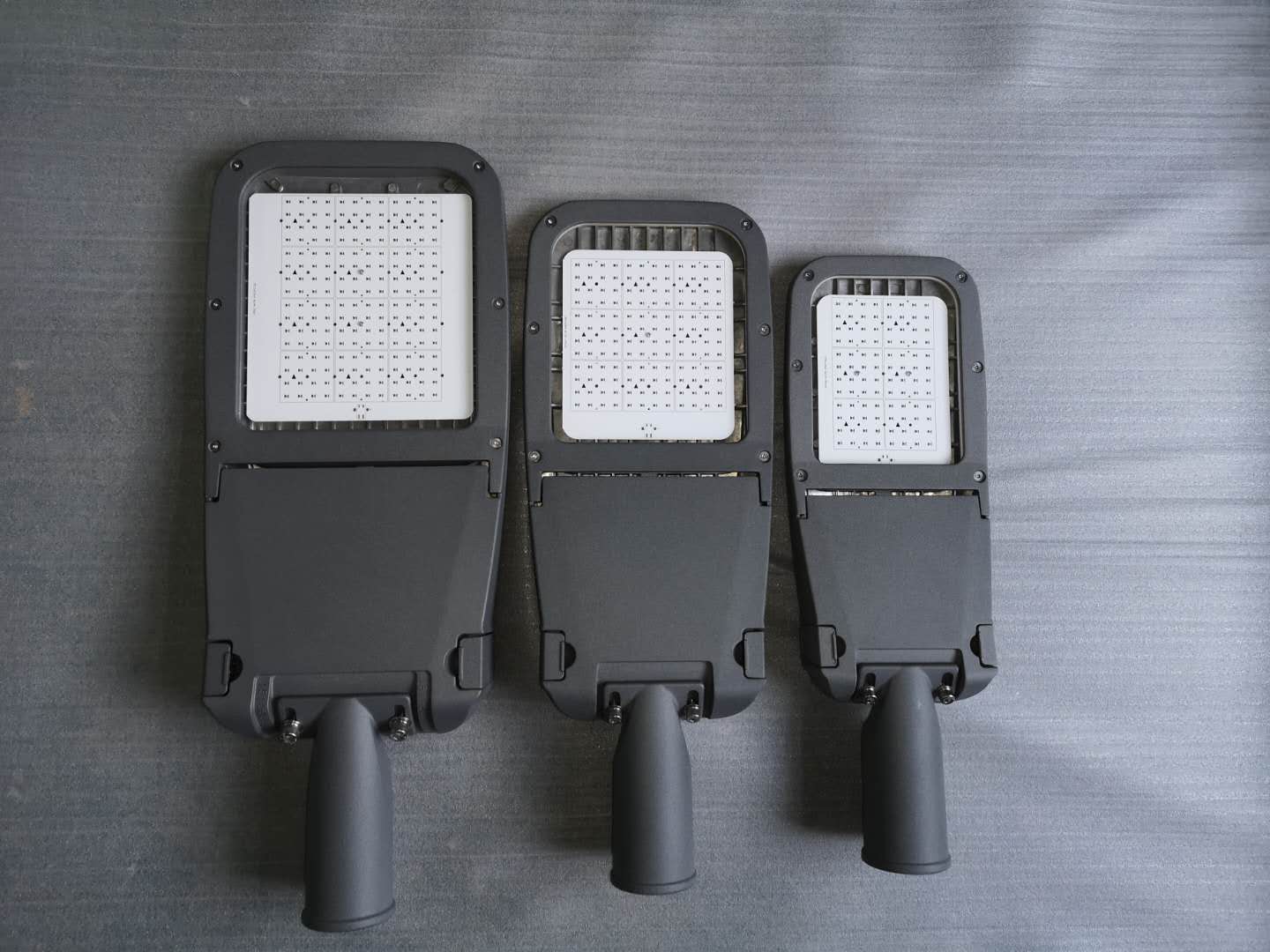

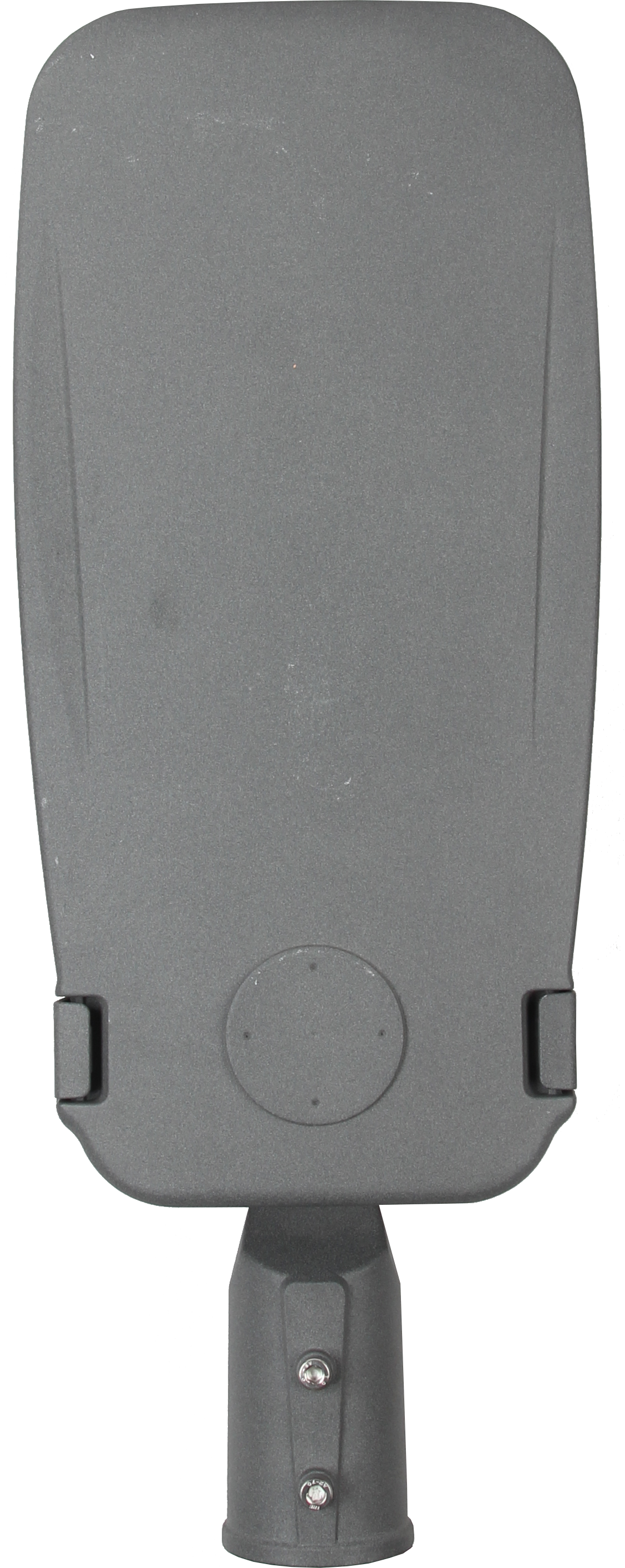

Product Size

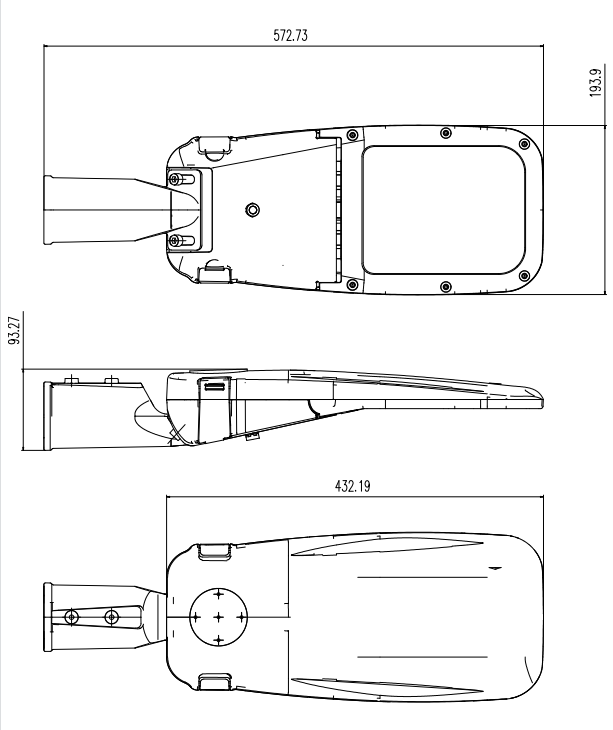

ASL30-A

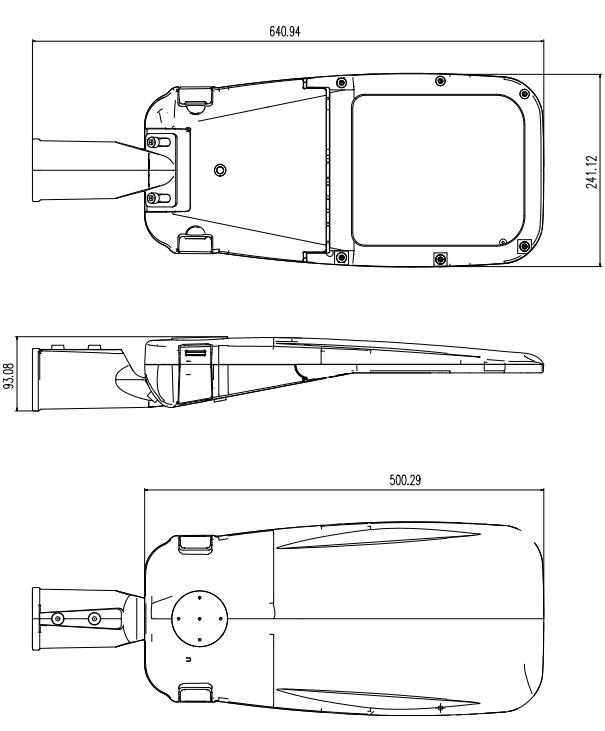

ASL30-B

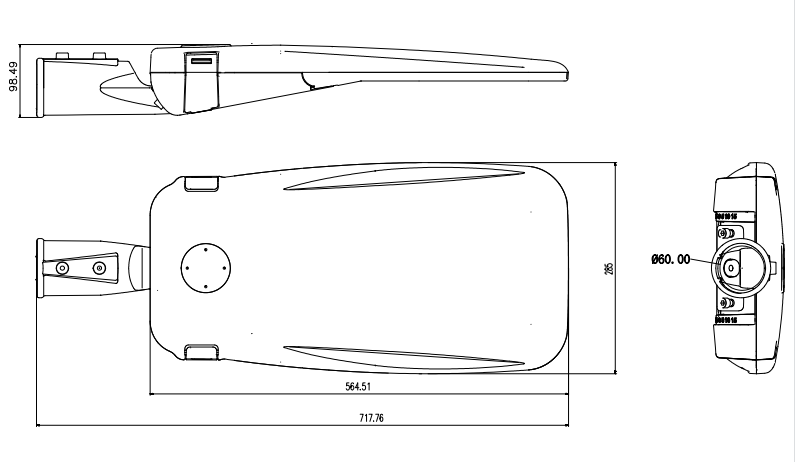

ASL30-C

Product Description

Applications

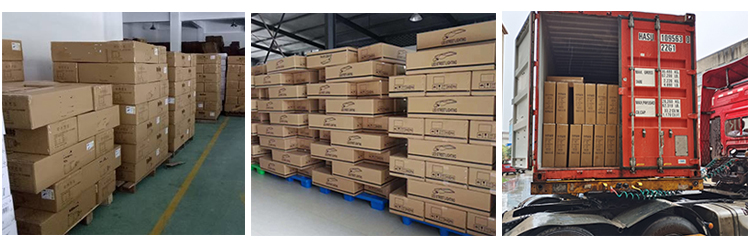

Packing & Loading

Hot sales

Certifications

Official Quality Certification Document 1

Official Quality Certification Document 2

Factory Audit and Testing Standards Certifications

Company Profile

Manufacturing Showroom and Technical Capabilities

Frequently Asked Questions

What voltage ranges do these street lights support?

These LED lights support a wide input voltage range of AC90-305V, making them suitable for most regional electrical grids worldwide.

What is the waterproof level and ingress protection rating of the lights?

Our lights feature an IP66 ingress protection rating and an IK08 impact protection rating, ensuring reliable performance in harsh outdoor environments.

What are the available Correlated Color Temperature (CCT) options?

The series is available in three distinct color temperatures to suit different requirements: Warm White (3000K), Neutral White (4000K), and Cool White (6500K).

How energy-efficient are these LED street lights?

They deliver an outstanding luminous efficacy of 130-160 Lm/W, combined with a power factor (PF) of ≥0.98 and driver efficiency of 0.92, ensuring optimized power savings.

Are there different models for varying power needs?

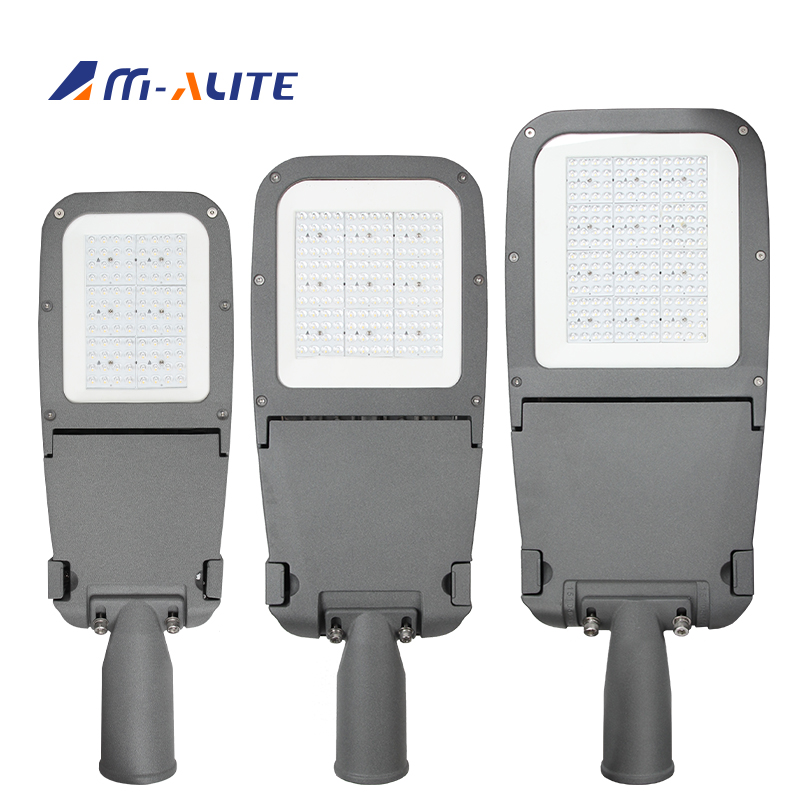

Yes, we offer multiple configurations across three core design bodies (ASL30-A, ASL30-B, and ASL30-C) with power options ranging from 40W up to 180W.
