Product Description

Model: GS-LI/D type B

ICAO Low Intensity type B LED Double Aviation Obstruction Warning Light

Product Overviews

The ICAO Low Intensity type B LED Double Aviation Obstruction Warning Light features a durable base with metal baking varnish. The light source utilizes independently developed dedicated LED chips, characterized by exceptionally low power consumption and an extended operational lifespan.

The lampshade is constructed from high-grade PC material, providing superior resistance to corrosion, UV radiation, and physical shock. Its management circuit includes robust lightning protection and surge protection devices, ensuring reliable performance in extreme working environments.

Equipped with an integrated photoswitch, the lamp automatically activates when ambient light falls below 50 LUX and deactivates when it rises above 50 LUX.

Technical Specifications

LIGHTING PERFORMANCE
Effective Intensity	32.5cd
Compliant with	FAA L-810, ICAO TYPE B
Emitting Color	Red
Operation Mode	Steady Burning / Standby with transfer / Flashing / Alternating Flash
Vertical Divergence	10°
Horizontal Output	360°
Light Lifespan	>100,000 hours
POWER PARAMETERS
Power Supply	Optional: AC220V, AC120V, DC12V, DC24V, DC48V
Supply Frequency	50HZ ~ 60HZ
Power Consumption	≤ 3W
PHYSICAL STRUCTURE
Overall Size	305mm × 125mm × 293mm
Installation Size	3/4 inches or 1 inch chassis install
Lens Material	Polycarbonate, UV Stabilized, Corrosion Resistance
Body Material	Die-casting Aviation Aluminum Alloy
Protection Rating	IP65 Waterproof
Weight	3KG

Function & Features

Adopts Fresnel lens PC lampshade with converging angles meeting FAA standards.
Automatic light control function for night and rainy day operation.
High-efficiency LED source with a service life up to 100,000 hours.
Low voltage design ensures a high degree of safety during use.
Impact resistant, anti-lightning, sunlight resistant, and snow resistant.
Designed to withstand typhoons, hail, and severe weather conditions.
Includes over-current and lightning protection functions.
Optional warning function available via dry contact.
Integrated switch for toggling between flashing and steady light modes.
Zero radio frequency (RF) and electromagnetic interference.

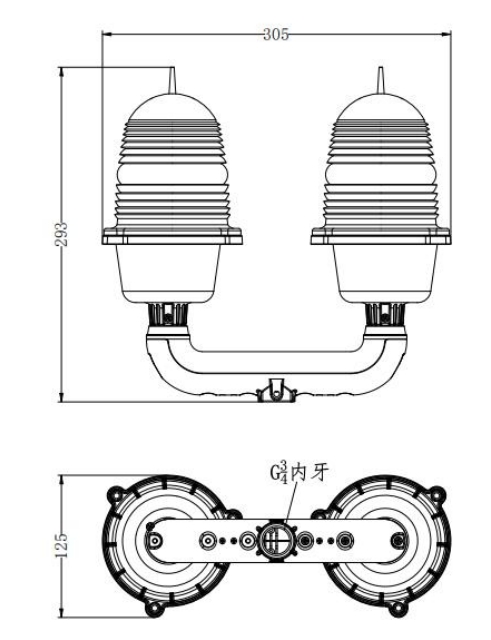

Dimension Drawing

Usage Notice

Strictly use the nominal voltage to avoid equipment damage.
Do not open the device during operation to avoid high-pressure hazards.
Ensure waterproof seals and screws are tightened after installation.
Maintenance must be performed by professionals only.

Applications

Airports & Runway Navigation
High-rise Buildings & Blocks
Communication & Iron Towers
High Mast Lamps & Chimneys
Bridges & Large Structures

Certifications & Featured Display

Frequently Asked Questions

Q1: Can I have a sample order for your obstruction lights? A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2: What is the typical lead time for production? A: Samples take 3-5 days, while mass production typically requires 1-2 weeks depending on the quantity.

Q3: Is there a minimum order quantity (MOQ)? A: We have no strict MOQ limit; 1pc for sample checking is available.

Q4: How are the products usually shipped? A: We usually ship via DHL, UPS, FedEx, or TNT Express. It typically takes 3-5 days for door-to-door arrival. Air and sea freight options are also available.

Q5: Do you provide a guarantee for your products? A: Yes, we offer a 2 to 5-year warranty on our products depending on the specific model and requirements.

Q6: How do you handle faulty or defective products? A: Our products are manufactured under a strict quality control system with a defective rate of less than 0.2%. During the guarantee period, we will replace or repair defective units based on the actual situation.
