Private model, with a large stock of materials, stable supply, fast delivery, and no MOQ!
| Parameter | Specifications Details |
|---|---|

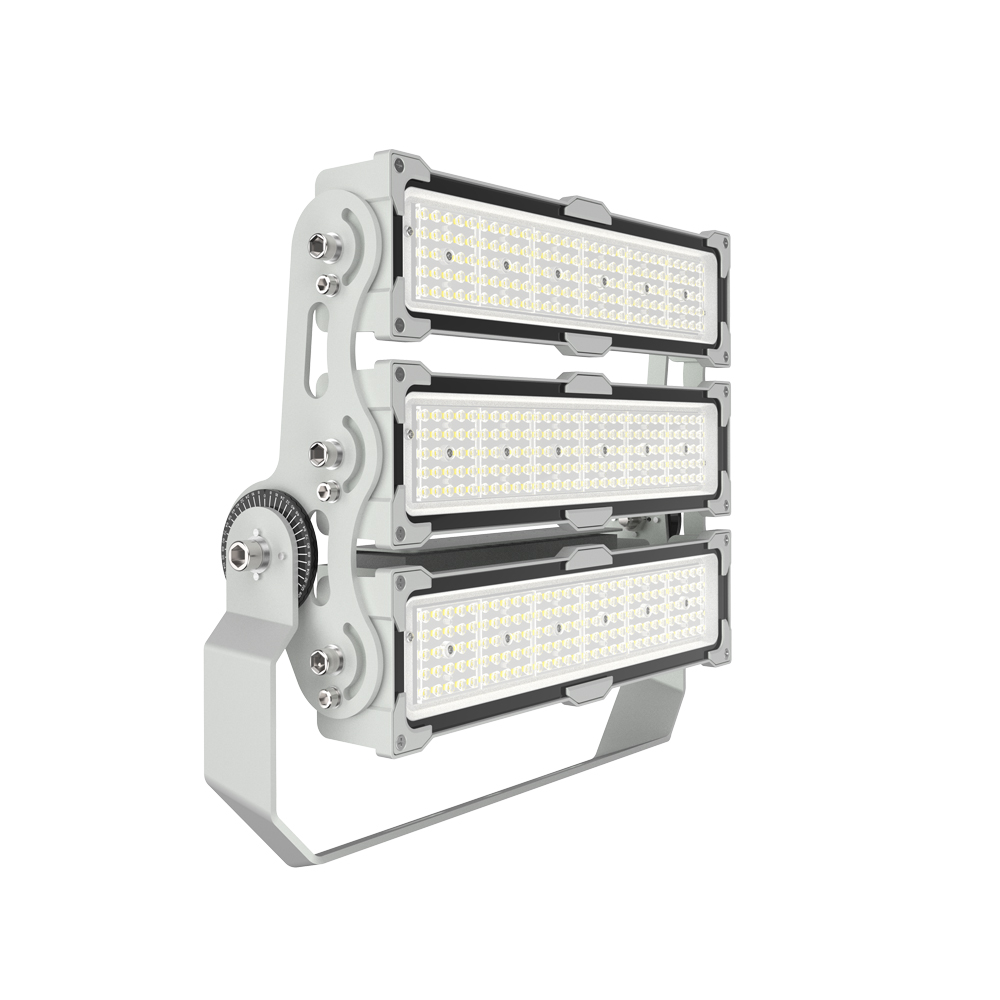

| Model | SW-TN610C-W300 |

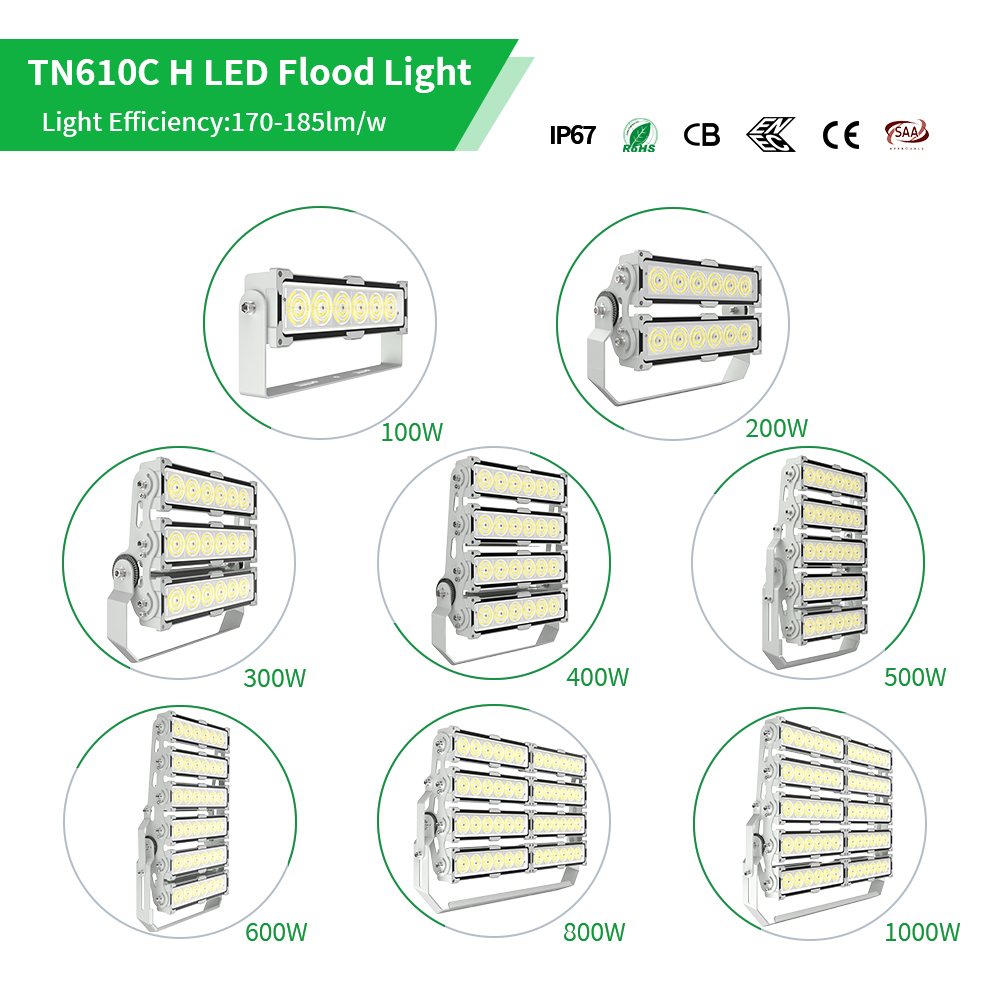

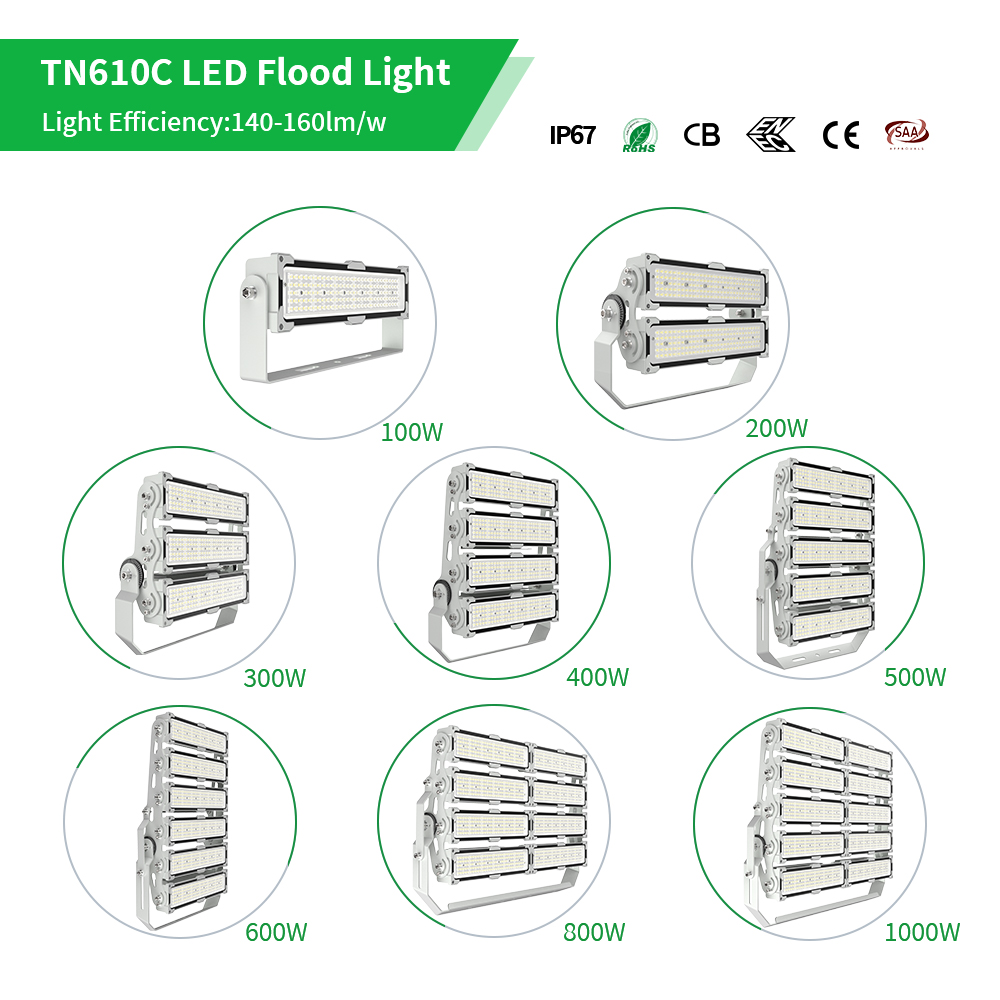

| Wattage Options | 100W / 200W / 300W / 400W / 500W / 600W / 800W / 1000W |
| Luminous Flux | 15000lm / 30000lm / 45000lm / 60000lm / 75000lm / 90000lm / 120000lm / 150000lm |

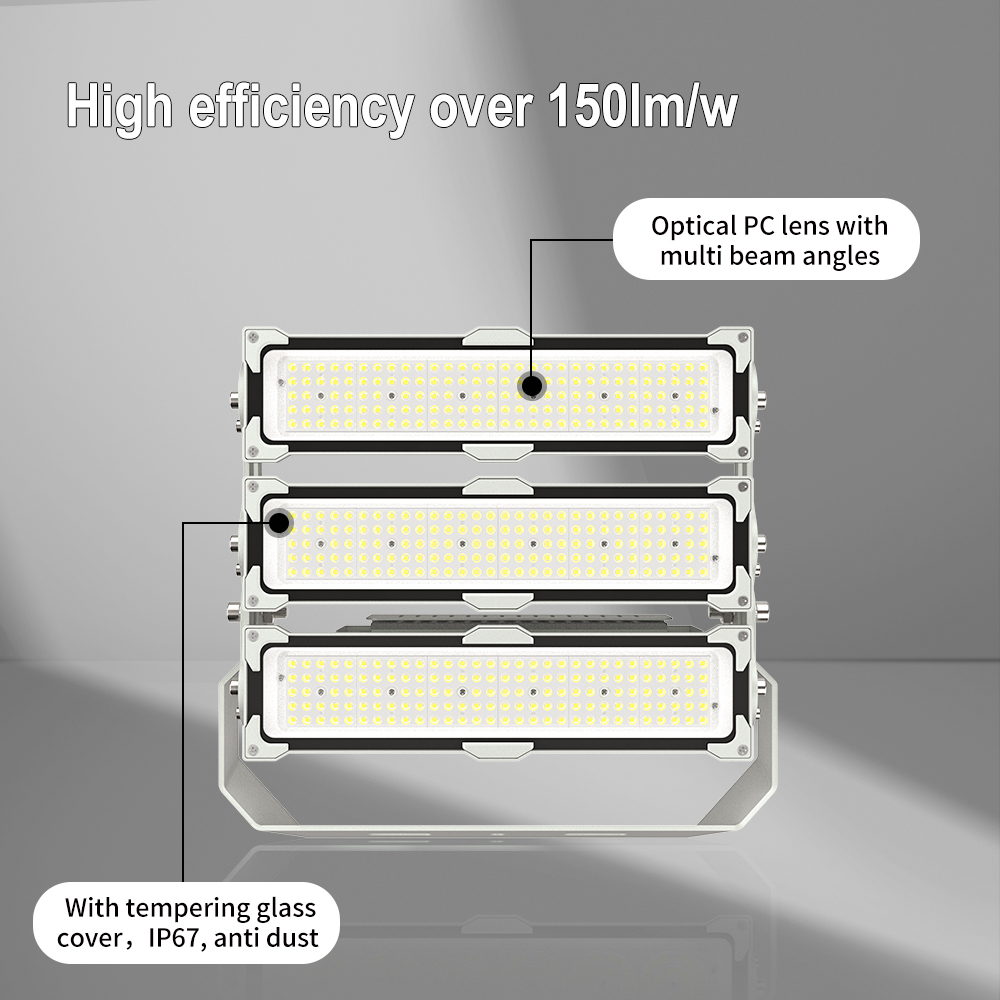

| Efficiency | 150-160 lm/w (165-180 lm/w option available) |
| LED Chip | 2835 SMD, 3030 SMD |
| LED Driver | SOSEN, Mean Well (Other brands available upon request) |
| Dimmable Options | 1-10V dimming, DMX, DALI |
| Input Voltage | AC90-305V (50/60Hz); 347V/480V options available |

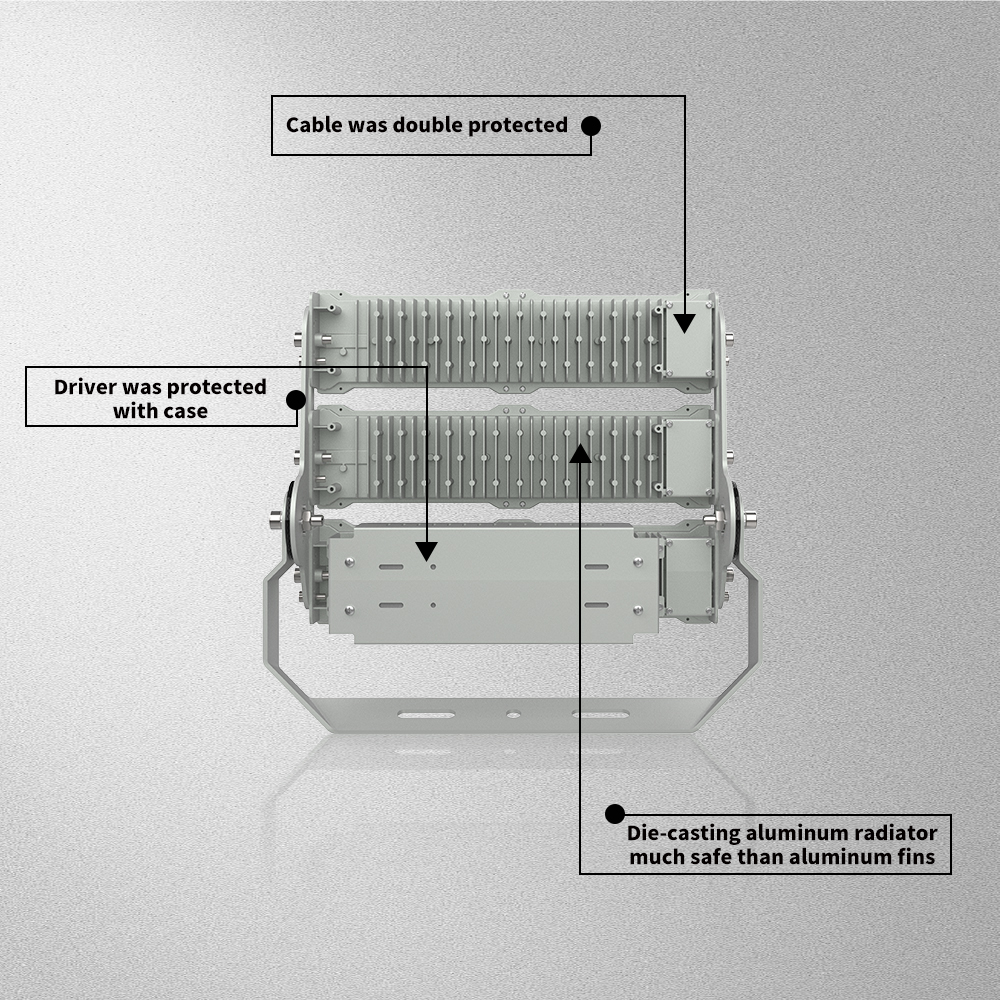

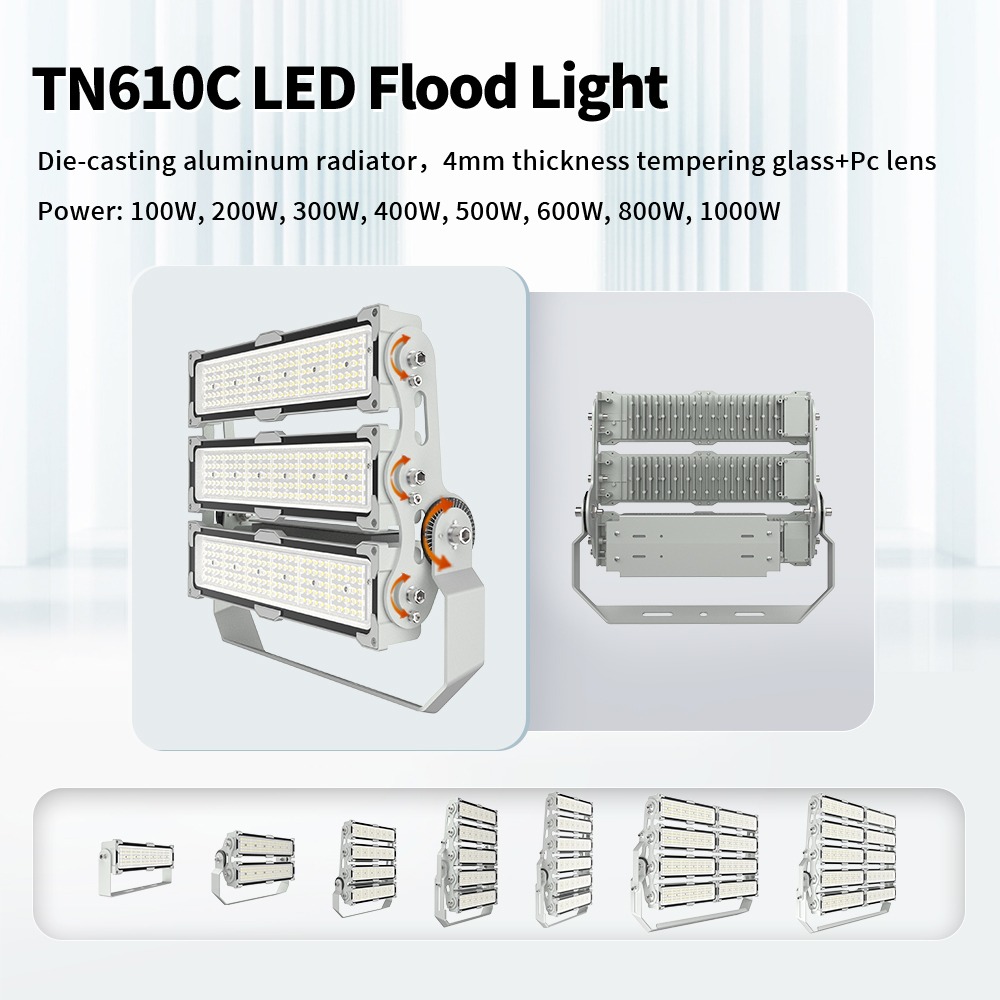

| Heatsink Material | Die casting aluminum ADC12, PC lens + glass cover |
| Beam Angle | 20°, 30°, 45°, 60°, 90°, 120°, 60x120°, 90x120°, and 80*150° (asymmetrical lens T2, T3, T4) |
| THD | <10% (at 230V, 50Hz) |
| Surge Protection | L/N-PE: 10KV, L-N: 6KV (20KV version optional) |
| Color Temperature | Warm White (2700-3200K) / Natural White (4000-4500K, 5000-5500K) / Cool White (5700-6500K) |
| IP / IK Grade | IP67, IK09 |
| CRI | >70Ra |
| Power Factor (PF) | >0.95 |
| Lifespan | 70,000 hours |
| Operating Temp. | -35℃ to 45℃ |
| Operating Humidity | 10% - 90% RH |
| Body Color | Grey |

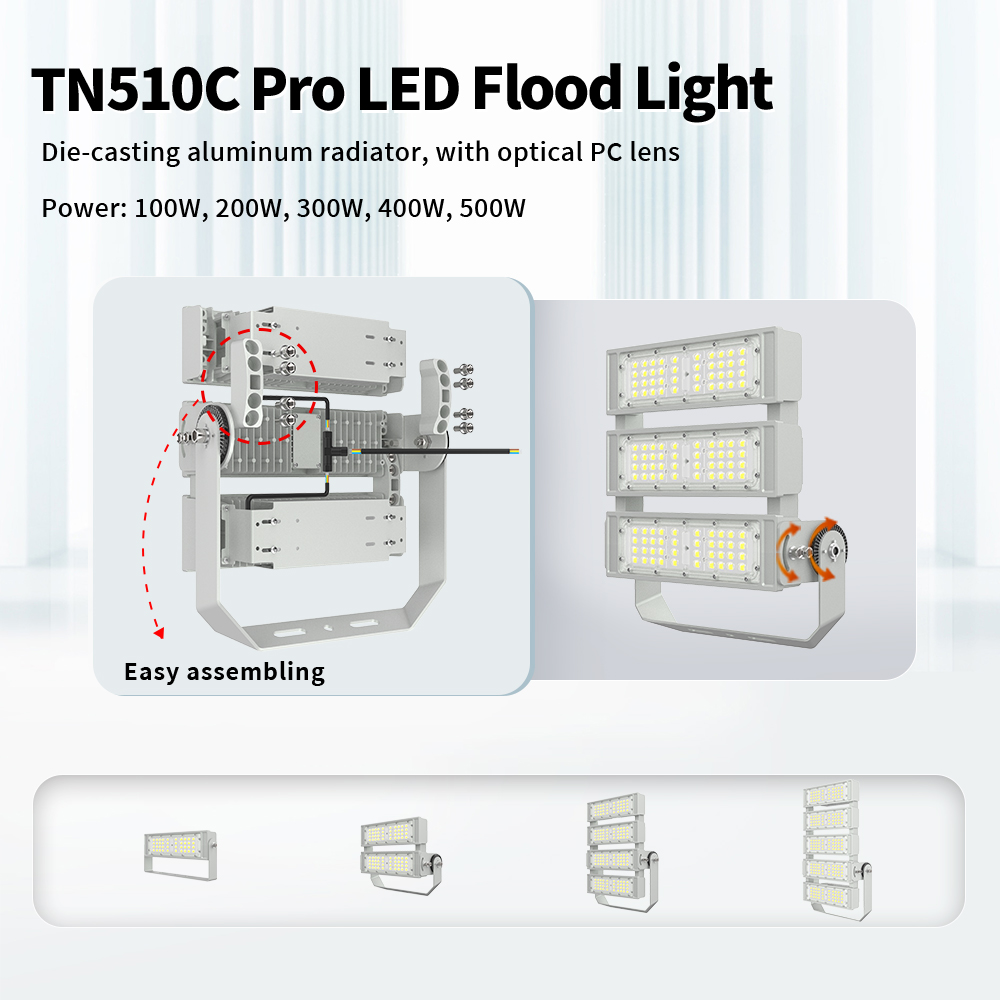

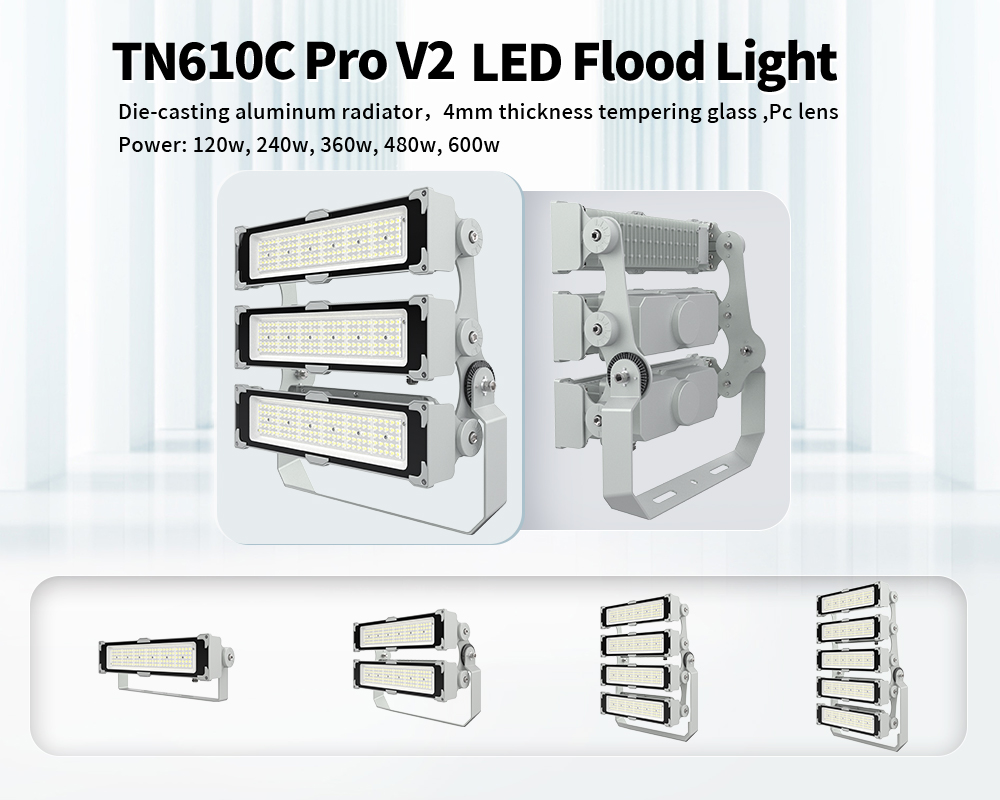

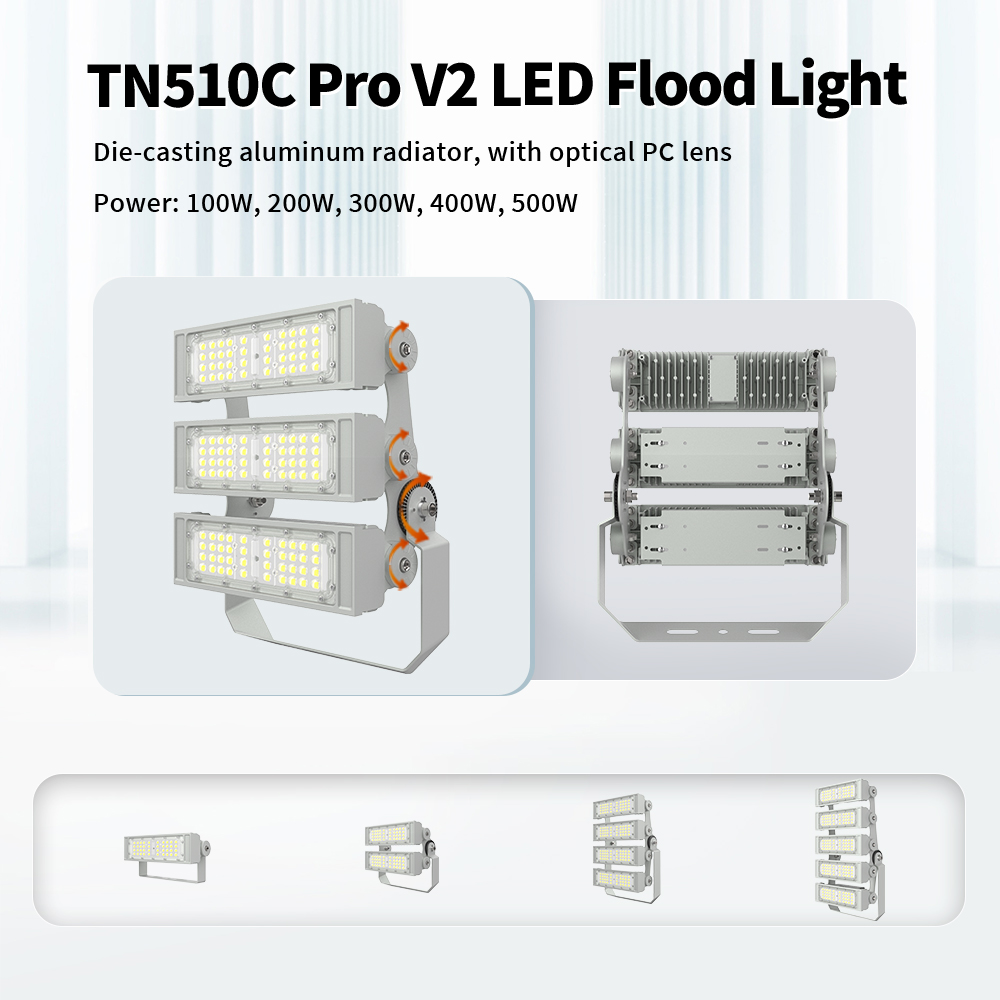

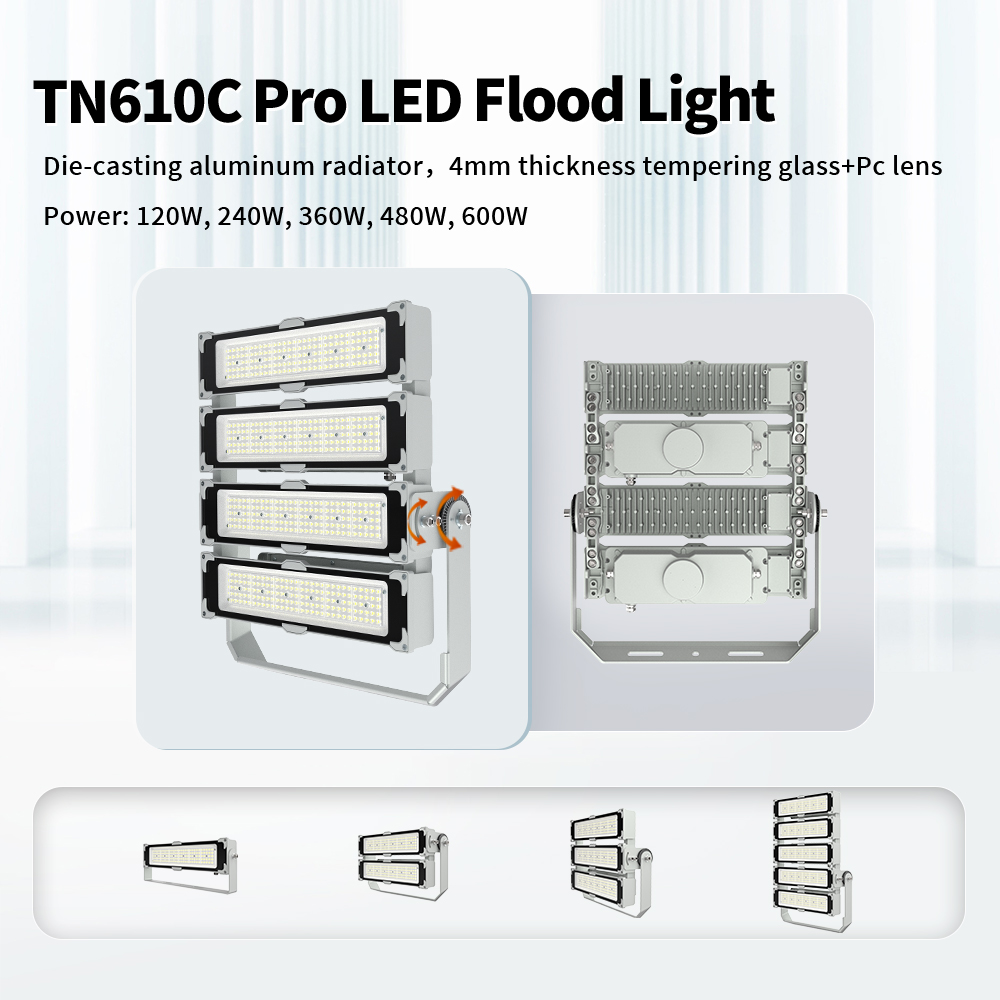

We offer a variety of module floodlight styles to perfectly match different design requirements and lighting environments.
Established in 2007, our factory operates strictly under ISO9001 and ISO14001 quality and environmental management systems. We specialize in producing and exporting high-performance outdoor and industrial LED luminaires.
Our primary markets span Europe, South America, Australia, North America, and parts of Asia. All products hold CE (EMC, LVD) and ROHS certifications, with many models carrying ETL, DLC, ENEC, and SAA certifications. With 17 years of manufacturing experience, our specialized R&D and QC teams manage quality starting from raw material inspections up to final product shipping.

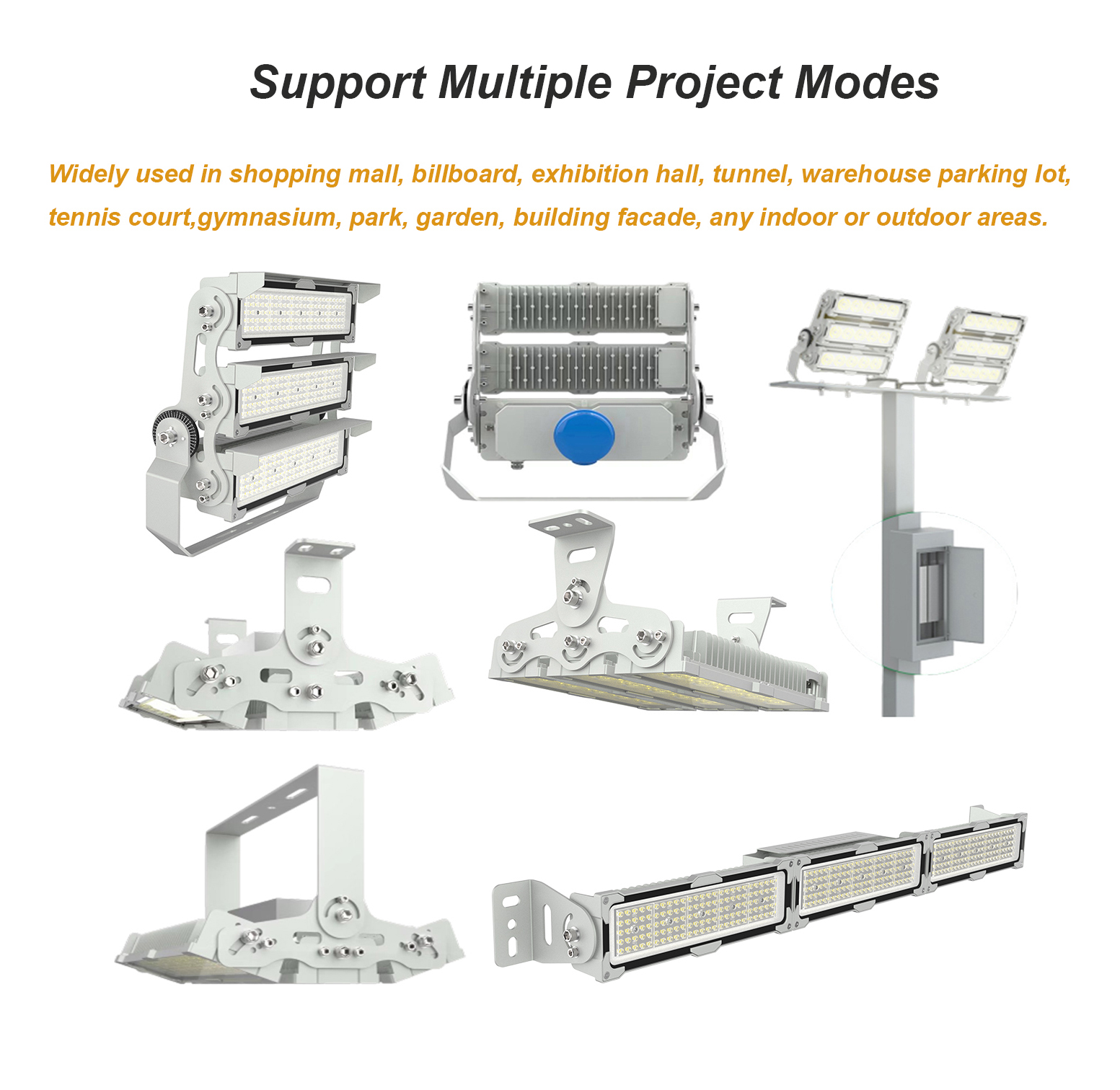

Our extensive product lines include LED Flood Lights, Stadium Lights, Tunnel Lights, Street Lights, UFO High Bays, Linear High Bays, Shoebox Lights, Canopy Lights, Garden Lights, Facade Lights, and Spotlights, satisfying a broad range of indoor and outdoor lighting demands.
Experienced Supplier in the LED Lighting Industry for 17 Years
OEM/ODM services are available. Welcome custom sample orders. 7-Year Warranty provided.
